500*300mm economical laser cutting wood art machine
1. Brief introduction of laser cutting wood art machine :
This laser cutting wood art machine can engrave and cut wood, fabric, bamboo, rubber, stone and other non-metal materials,widely used in advertising,garment,craft,model,packing,decoration industries.

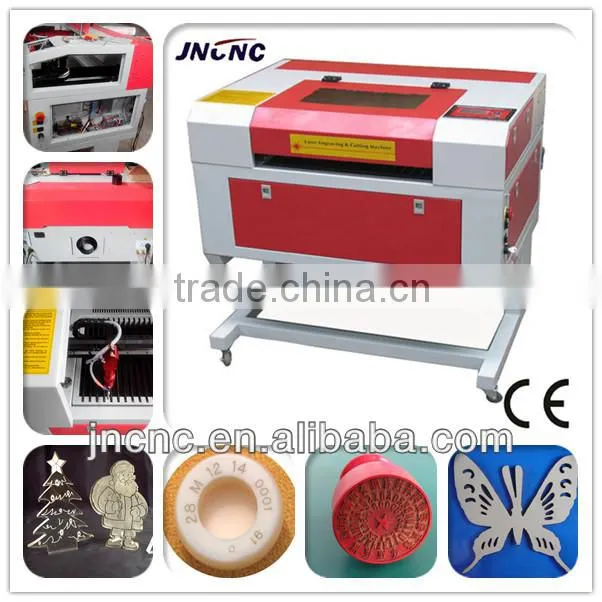

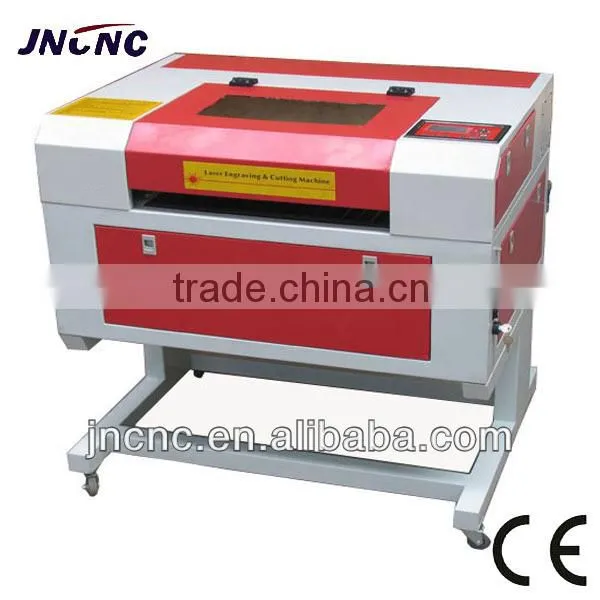

2. laser cutting wood art machine picture:
3. Parameters of laser cutting wood art machine :
Model Name |
CNC-L5030H |
Working Area |
500*300mm |
Laser Power |
60W |
Laser Type |
Sealed-off Glass CO2 Laser Wavelength: 10.6um |
Cooling System |
Water cooling |
Laser Output Control |
0-100% no section control, soft inner 0-100% adjustable |
Control System and Driver |
High Speed DSP control system, stepper motor, high subdivision driver |
Engraving Speed |
0-1200mm/s |
Cutting Speed |
0-600mm/s |
Voltage |
AC220V/110V±10% 50HZ/60HZ |
Reposition Accuracy |
≤±0.01mm |
Minimum Letter Size |
English : 1mm |
Machine Power |
≤1000W |
Rise and fall height |
High-precision ball screw electric lift 100mm |
Working Environment |
Temperature: 0-45°C Humidity: 5%-95% ( No condensate water) |
Warranty |
12 Months (6 months for laser tube) |
Supported Format and Software |
PLT, DST, DXF, BMP, AI; Support AutoCAD, Corel Draw output directly |
4. Features of laser cutting wood art machine :
1). The structure is strong enough to ensure the moving stable.
2). High quality laser tube provides the strong beam and long service life.
3). Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
4). The imported linear guide way ensures the high precision and the long service.
5). The stepper motor guarantees cutting and engraving smooth.

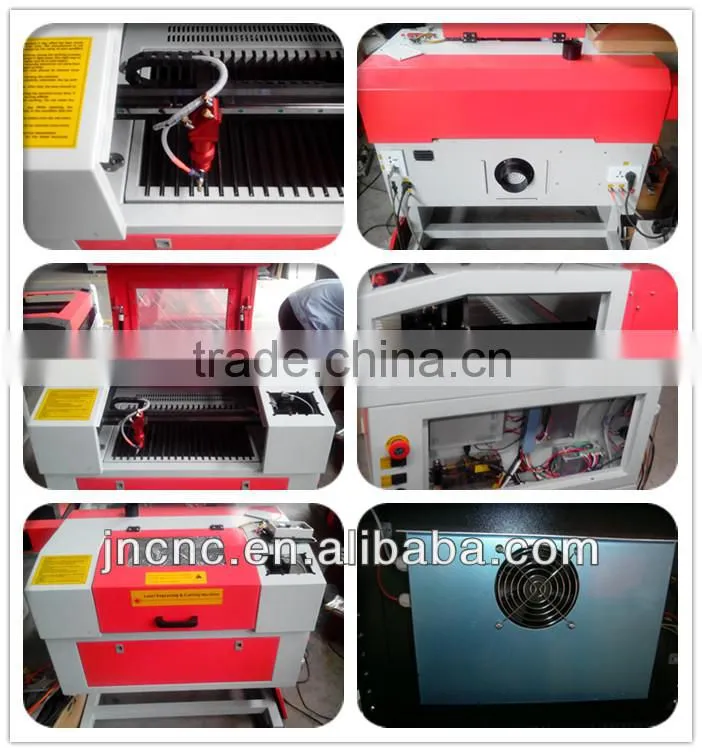

5.Main parts picture of laser cutting wood art machine:
6. Samples pictures:

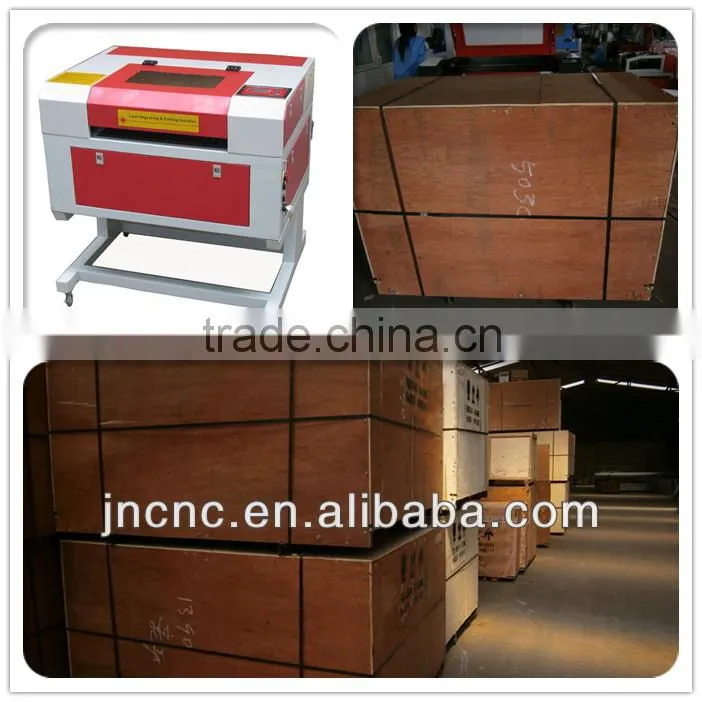

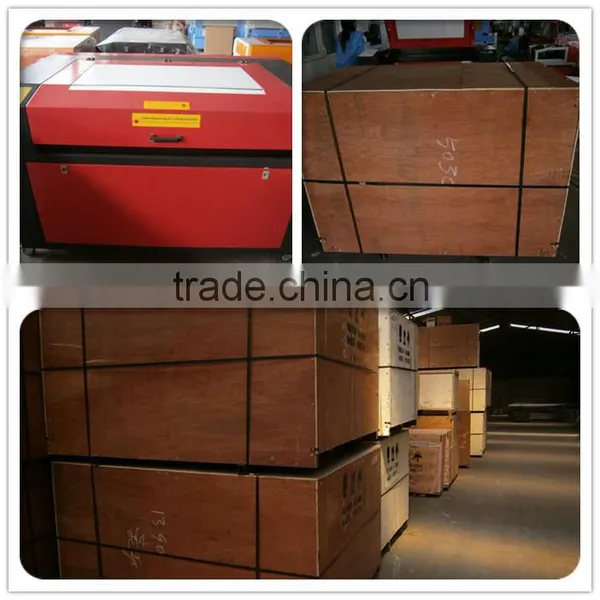

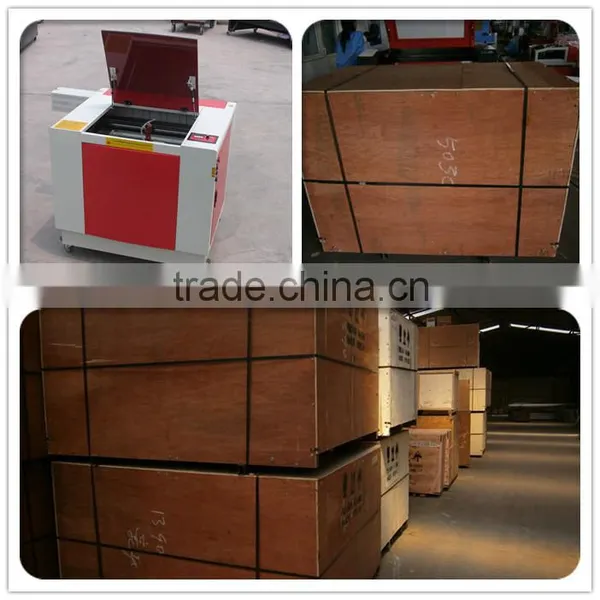

7. Packing details:
8. Factory show:
9. Exhibition show:
10. Warranty and after sales service:
1) One year free warranty, main parts are free of charge when problems happened during this period.
2) Life time free maintenance service.
3) Free training course at our factory with professional engineers.
