Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Crawler and Trailer Available ! HF-360 Water Well Auger Drill

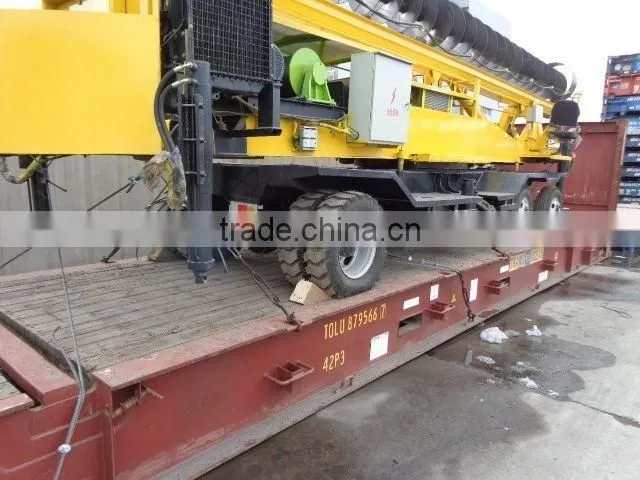

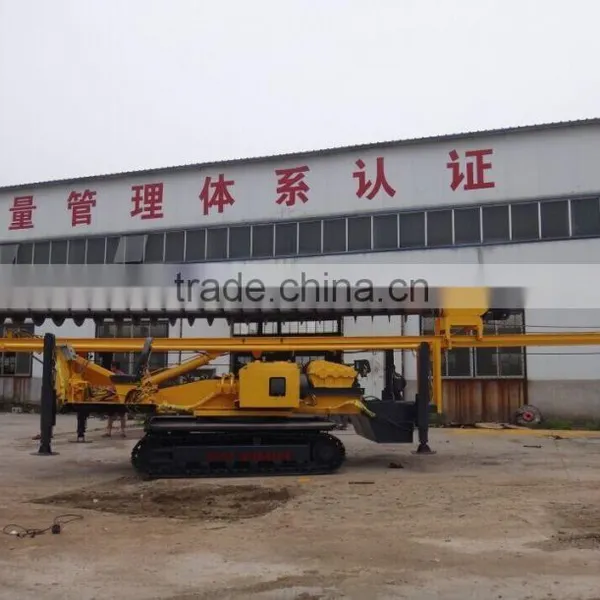

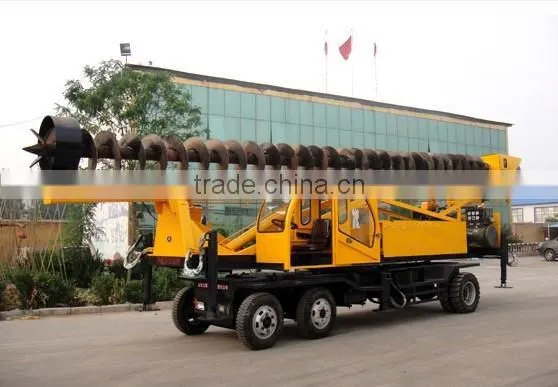

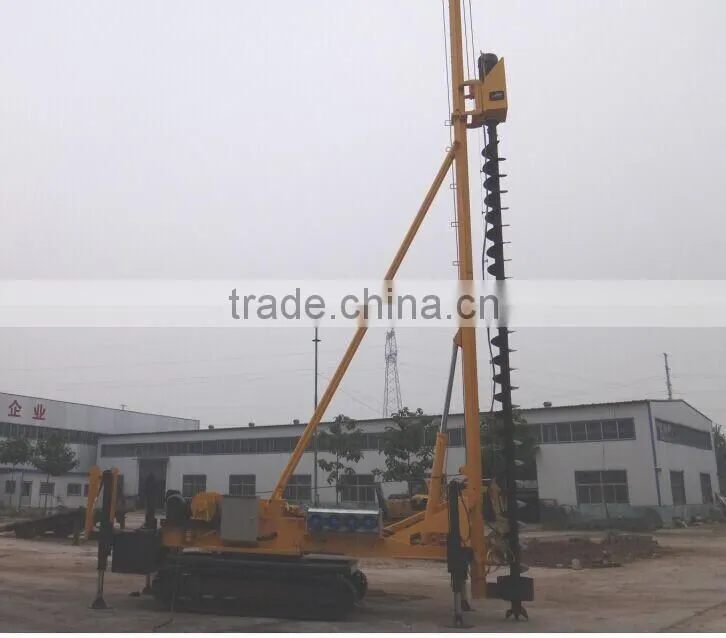

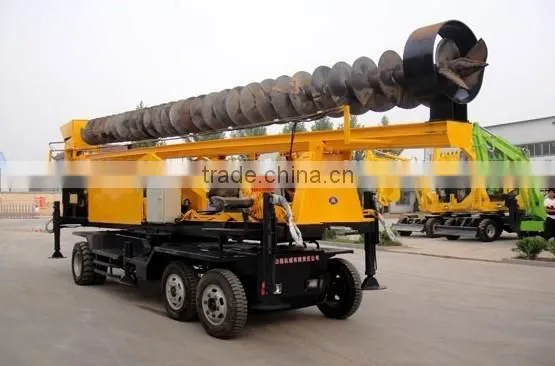

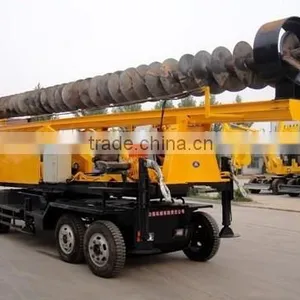

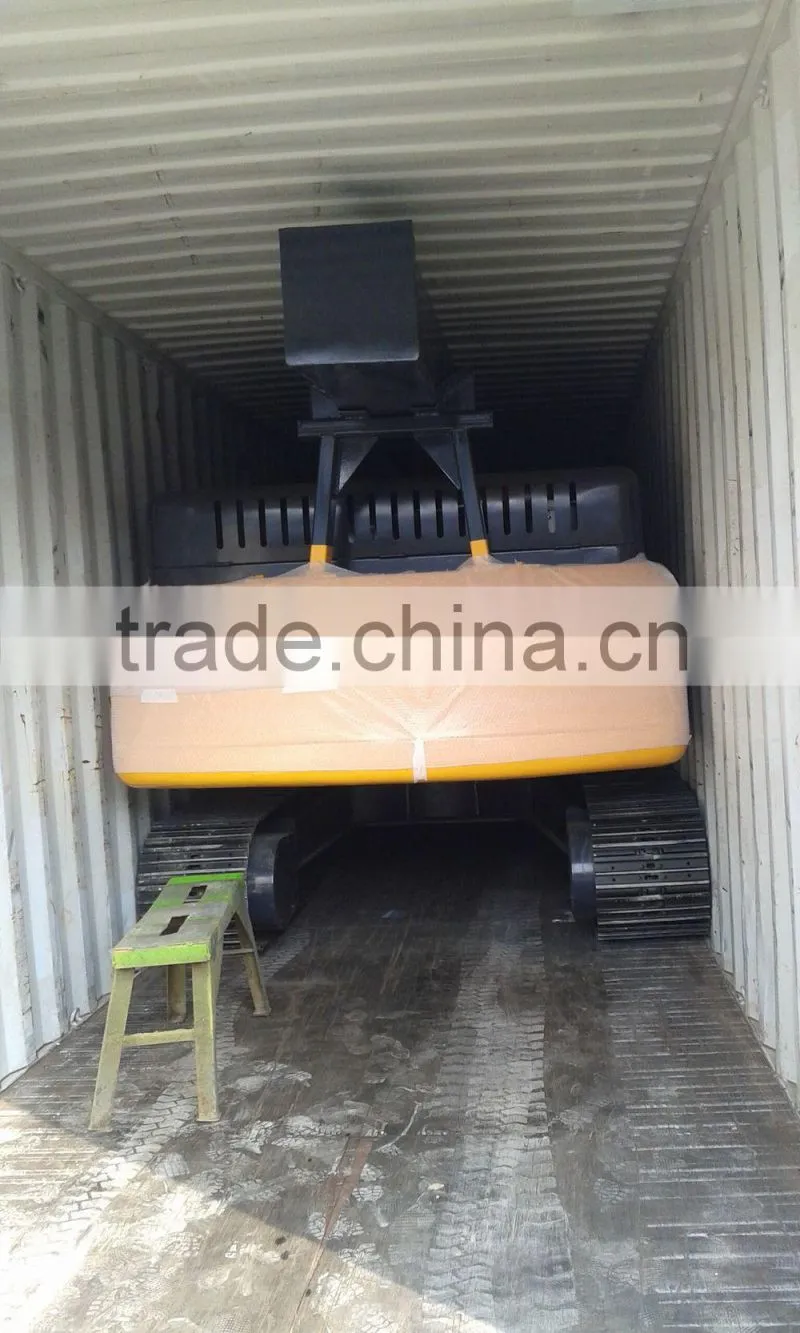

Crawler and Trailer Available ! HF-360 Water Well Auger Drill
US$ 30,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Auger drill
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Usually Qingdao other ports also available
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HFW-600L Multi Purpose Water Well Drill Rigs For SaleUS$ 100,000 - 125,000MOQ: 1 Set -
HF300Y Multi Purpose Drilling RigUS$ 80,000 - 150,000MOQ: 1 Set
-
HFJ-200 Multipurpose Portable Engineering Borehole Drilling MachineUS$ 3,590 - 4,000MOQ: 1 Set
-
Export to Switzerland ! HF300Y Mutifunctional Water Well Drill MachineUS$ 1 - 119,000MOQ: 1 Set
-
Most Popular Piling Rig ,Three-walking Ways, HF-360 Auger Water Well Drilling RigUS$ 20,000 - 30,000MOQ: 1 Set
Condition
New
Type
Other, Auger drill
Power Type
Electric
Place of Origin
Henan, China
Brand Name
Hanfa water well auger drill
Model Number
HF-360 water well auger drill
Usage
Other, pile
Voltage
customized
Power(W)
50kw
Dimension(L*W*H)
11.5m x 2.1m x 13.6m
Weight
8.5tons
Certification
CE
Warranty
1year for main machine
After-sales Service Provided
Engineers available to service machinery overseas
Crawler and Trailer available! HF-360 Small Auger Drill Machine
Specifications
Model |
HF-360 |
|||
Hole diameter |
400mm |
600mm |
||
Drilling depth |
19m |
18m |
||
Revolution angle° |
360° |
|||
Overall dimension |
Operating mode |
11.5m×2.1m×13.6m |
||
Weight |
8.4t |
8.6t |
||
Wheel |
8 pcs |
8 pcs |
||
Generator power |
50kw |
50kw |
||
Hoist power |
3/11t/kw |
3/11t/kw |
||
Hydraulic oil pump power |
11kw |
11kw |
||
Travel power |
24kw |
24kw |
||
Oil pump flow |
32ml/r |
32ml/r |
||
Oil pump pressure |
16mpa |
16mpa |
||
Travel type |
Short distance travel by electric and hydraulic; long distance by diesel |
|||
