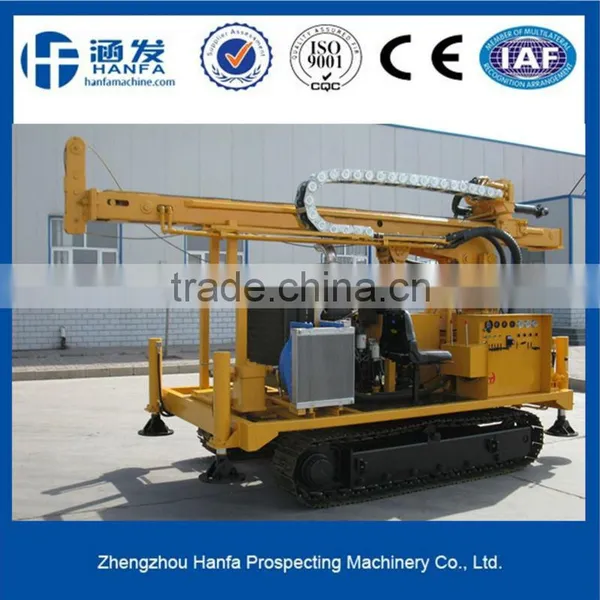

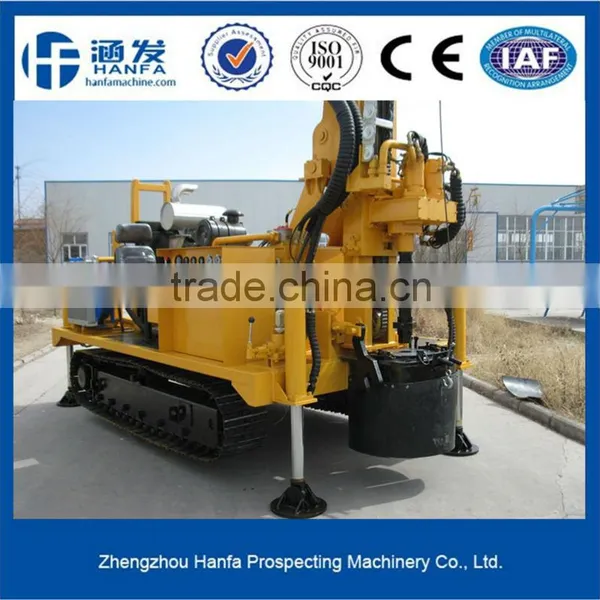

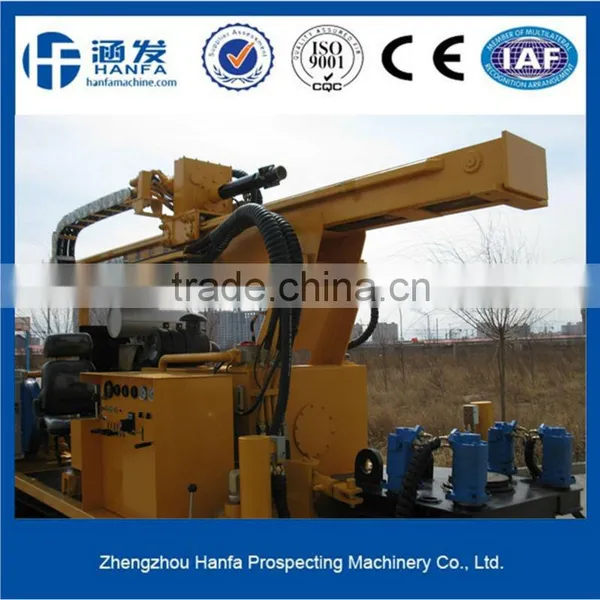

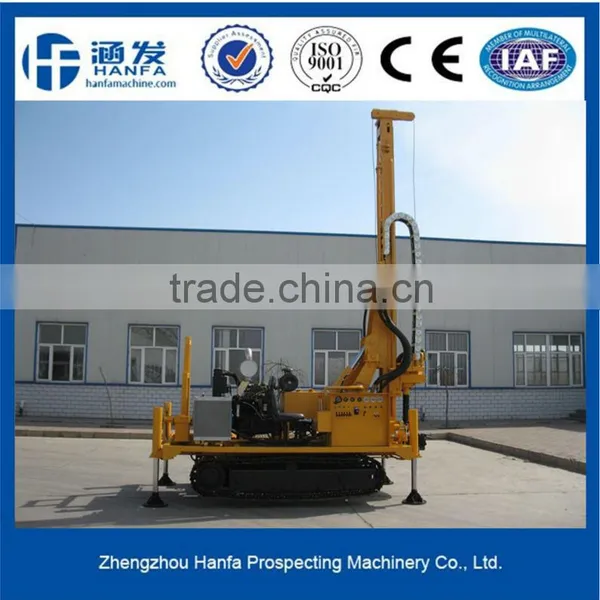

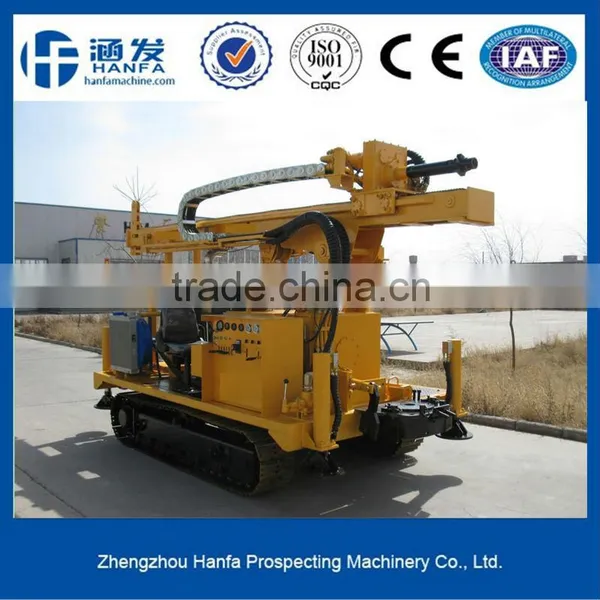

HFW-600L Multi Purpose Water Well Drill Rigs For Sale
General description----- Multi-functional hydraulic drilling rig

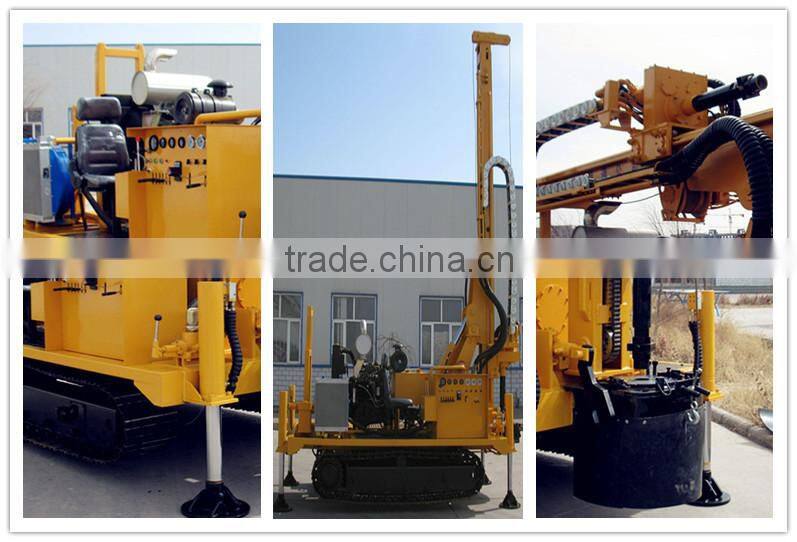

HFW-600L multifunctional drilling is a kind of medium, high efficiency, novel multifunctional hydraulic crawler rig, and the rig is widely used in drilling wells, gas wells and other large drilling engineering construction, and can also be suitable for mine rescue rig, mining blasting hole and foundation pile hole construction.
The rig is a unique patented products: top drive rotary power head and a hydraulic rotary disk rotating mechanism, hydraulic motors, hydraulic winch chain propulsion for deep hole drilling in institutions and mast. New drilling technology, the drilling machine with cone drilling, mud reverse circulation drilling technology and compressed air DTH hammer drilling technology, can finish large diameter deep hole construction in earth covered layer, sand gravel, sand and rock layer stratum. The drill, drill pipe rack lift unloading, leveling supporting legs, lifting, walking and other auxiliary movement by the hydraulic system, not only can improve the working efficiency, but also reduces the labor intensity of operators.
Features and Advantages ------ Multi-functional hydraulic drilling rig
* Guide lane matches with roller skate, it can reduce the sliding resistance,and also reduce friction and improve the lifetime of extension guide.
* The rig is very convenient with air compressor and DTH hammer, using compressed air DTH hammer drilling technology, complete the bedrock drilling operation.
* The rig is equipped with patent technology hydraulic rotary disk, mud pump, hydraulic winch, the mud can be completed normal circulation drilling technology.
* Drill carriage slipway and roller skate matching reduce sliding resistance, and the slide wear to extend the service life.
Technical parameters------ Multi-functional hydraulic drilling rig
| Maximum drill depth | 600 |
| Borehole diamester | Rock stratum 200-350/ Soil layer500-1200 |
| Engine power | 219 |
| Working air pressure | 1.05-2.46 |
| The total gas consumption | 16-30 |
| Drilling efficiency | 10-25 |
| Lenth of drill rod | 6 |
| Hydraulic mud pump | 600 |
| Hydraulic hoist | 300 |
| Lifting force | 300 |
| The drill rod | 108X108 |
| Axial pressure | 300 |
| Slow down, slow speed | 9.2 |
| Rise fast, fast forword speed | 50 |
| Power head of rotary torque | 22000 |
| Lower rotary hydraulic turnable | 40000 |
| Rotary speed | 0-50,0-100 |
| Equiped with generators | 22 |
| Walking speed | 2 |
| Climbing ability | 20 |
| Host weight | 18500 |
| Mainframe exterior size | 9400X2100X3200 |
All the time, "Client first, Service best" is Hanfa's principle.
Your satisfaction is our eternal pursuit.
Communication with the overseas customers ----- Multi-functional hydraulic drilling rig
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.
.
Our products has been authorized and certified by TUV and ISO9001:2008. We provide each machine one-year quality warranty after the trial run (excluding the wearing parts), except the machines sold more than15 months.

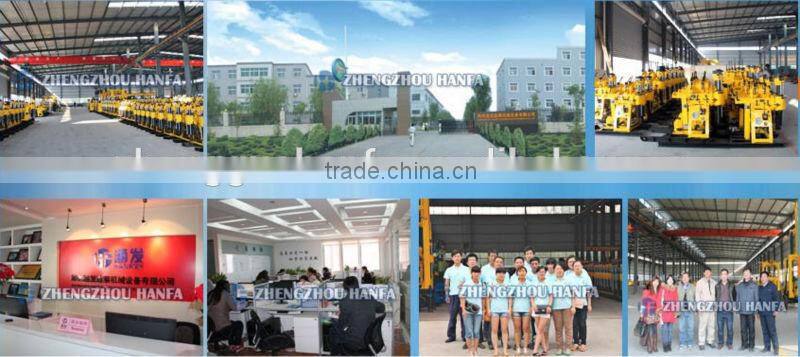

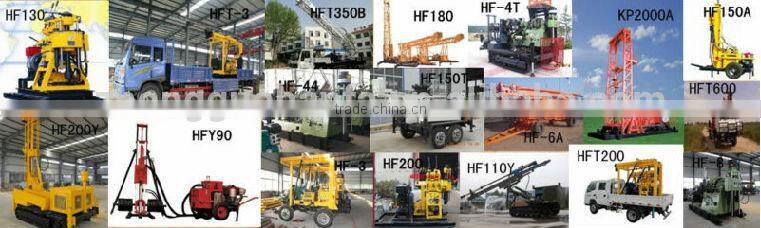

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. Presently, it has three subsidiaries which are zhengzhou Hanfa Prospecting Machinery Co.Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers. As well we have more than 20 species such as core drilling rig, rotary driling rig, brunt counter circulation drilling machines and hydrology water-well drilling machines.
Our company has passed ISO9001: 2008 quality administrative system certification. Our products have a vast market in foreign countries such as Southeast Asia, South America, Africa and other countries and regions. And the excellent capability, perfect service and eminent quality help Hanfa gain the general recognition both from domestic and overseas users.
Our company implement the corporate culture of "integrity, diligence, strict, profession and efficiency". We are always ready to provide you with best quality, reasonable price and perfect service system in order to establish close, trustworthy and long-term relationship with each customers. If you are interested in our products, please contact us and we will make every effort to give our hand.
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
