Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Most Popular Piling Rig ,Three-walking Ways, HF-360 Auger Water Well Drilling Rig

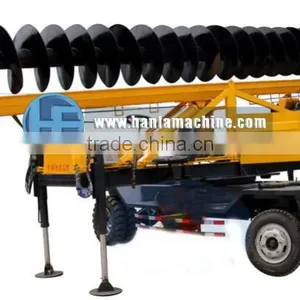

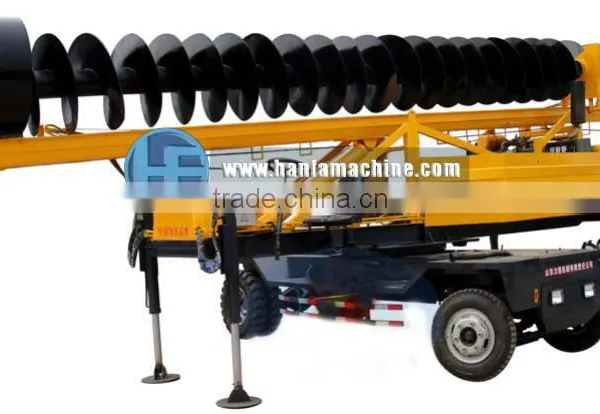

Most Popular Piling Rig ,Three-walking Ways, HF-360 Auger Water Well Drilling Rig

US$ 20,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drilling Rig

Place of Origin Henan, China

Brand Name HF

Model Number HF-360

Usage Other, piling

Dimension(L*W*H) 11.5*2.1*13.6m

Weight 8.4t

Certification CE

Warranty 1 year

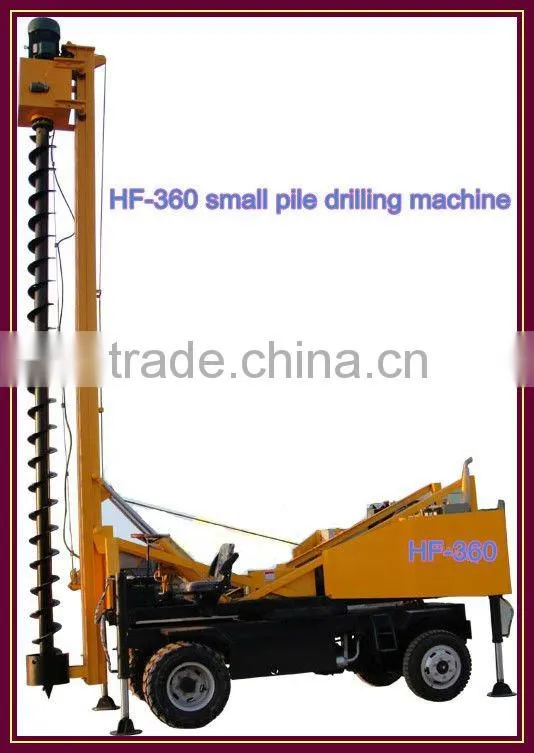

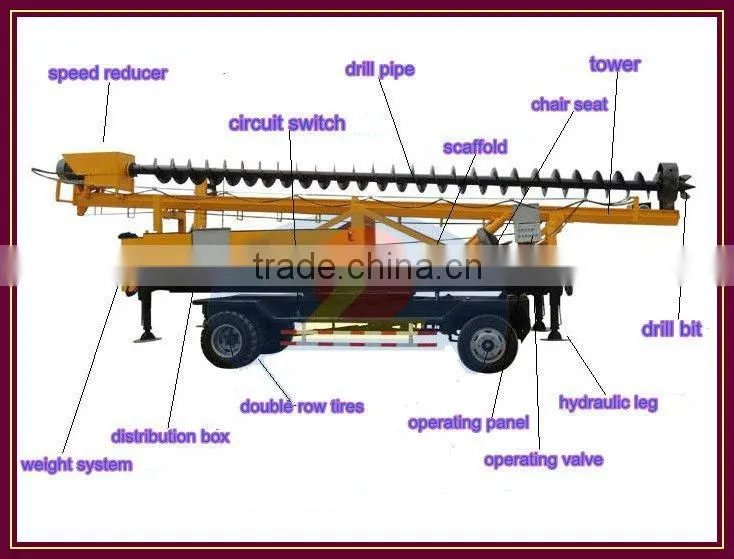

Most popular piling rig ,Three-walking ways, HF-360 auger water well drilling rig

Main Feature&Application:

1. Mainly used for construction and infrastructure projects, high drilling efficiency with about 6m depth per 3 minutes.

2. Three walking ways: 1) traditional generator walking; 2) for short walking distance in work site, can adopt electricity walk way; 3) hydraulic walking way when walking in sticky ground.

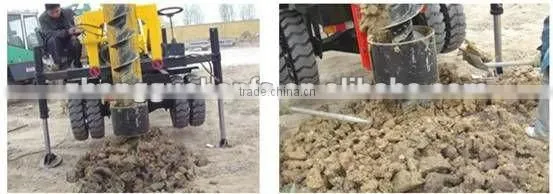

3. Manganese Steel for raw material of drill bit and rod, can be used to various soil layers, like frozen soil, red soil, LOESS, clay, etc.

4. Hydraulic brake system for hoist, with strong power and better braking effect.

5. Vehicle weight system, best balance ability when drilling, avoiding overturn accident.

Technical Parameter:

Model		HF-360
Hole diameter		400mm		600mm
Drilling depth		19m		18m

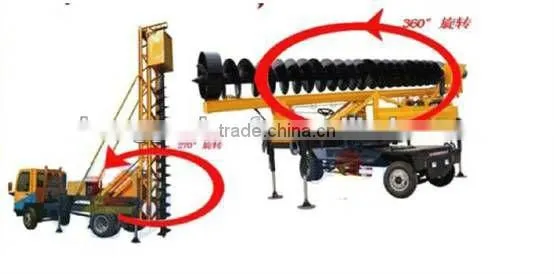

Revolution angle°		360°
Overall dimension	Operating mode	11.5m×2.1m×13.6m
	Weight	8.4t	8.6t
Wheel		8 pcs	8 pcs

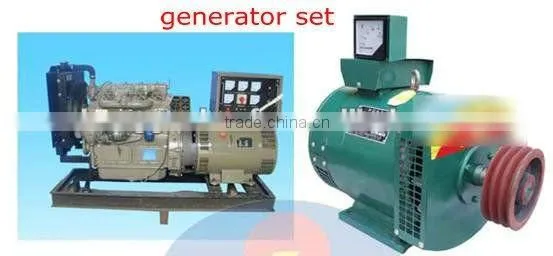

Generator power		50kw	50kw
Hoist power		3/11t/kw	3/11t/kw
Hydraulic oil pump power		11kw	11kw
Travel power		24kw	24kw
Oil pump flow		32ml/r	32ml/r
Oil pump pressure		16mpa	16mpa
Travel type		Short distance travel by electric and hydraulic; long distance by diesel

Designs of HF series water well/core drilling rig

Innovation is the key to our success: During these years, we continually make new designs on our products to

make them easier for clients to use.

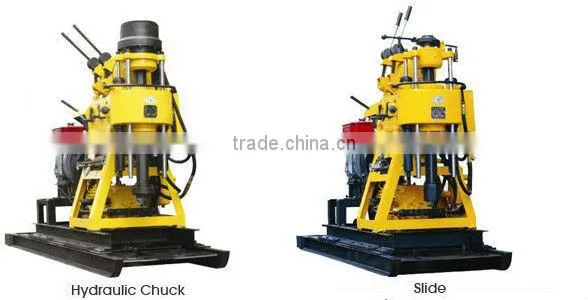

Hydraulic chuck: It is designed to save the trouble from ball chuck.

Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust

the drilling position.

Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.

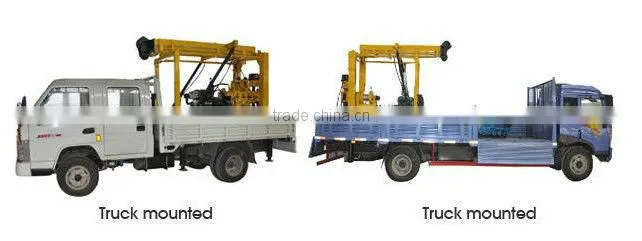

Truck mounted: Easy to move and operate, they are also with hydraulic systems.

Crawler: Self-propelled, able to clime, suitable for complex terrains.

Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough

to operate the drilling rig with hydraulic system.

Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for

geological study.

About us

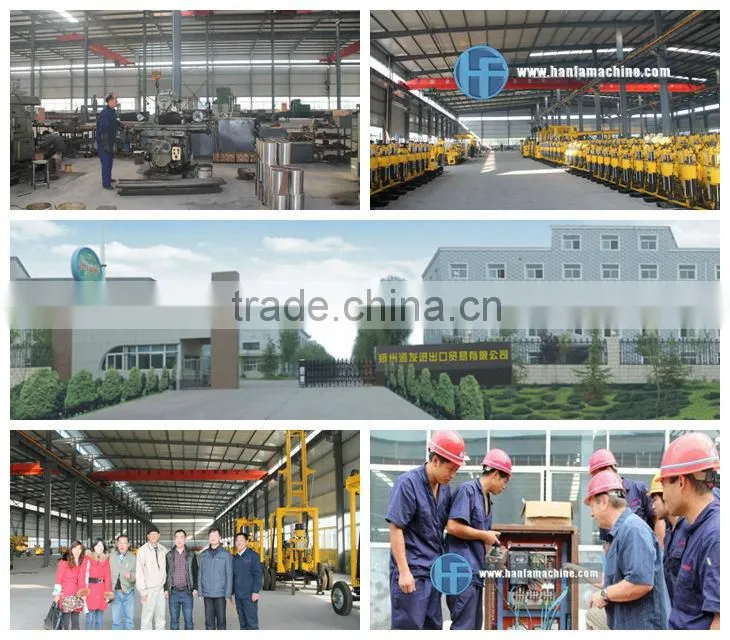

1. Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.

We have all the small models in stock all year long and the bigger ones ready within 15-30 days.

2. Customers

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.

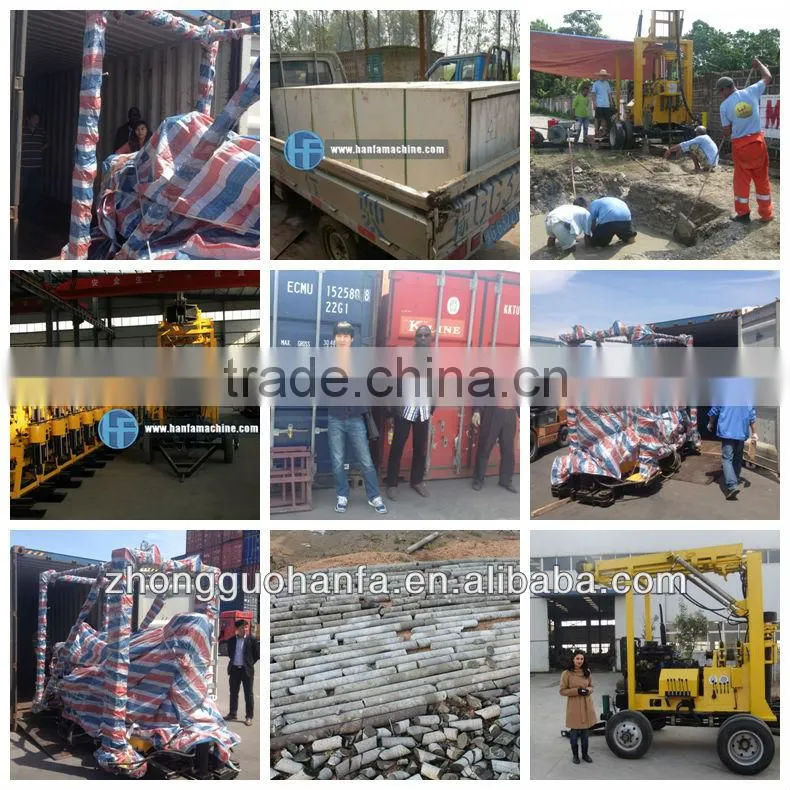

3. Packing

To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.

4. Quality guarantee

Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
