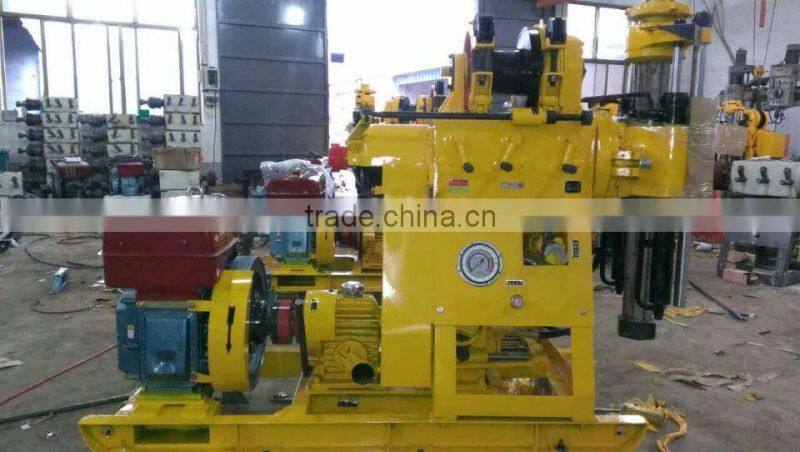

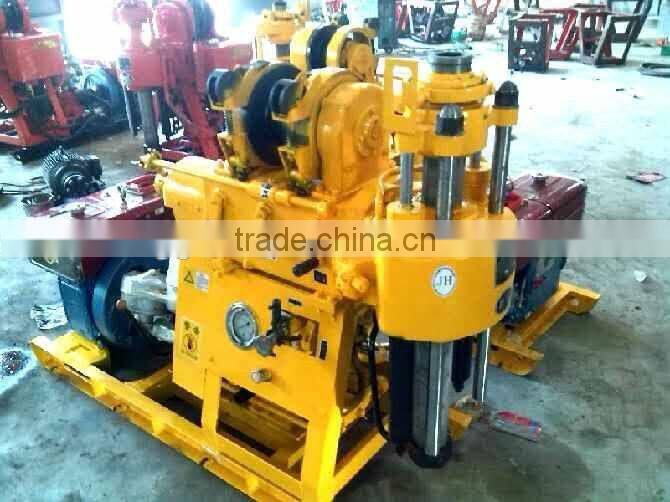

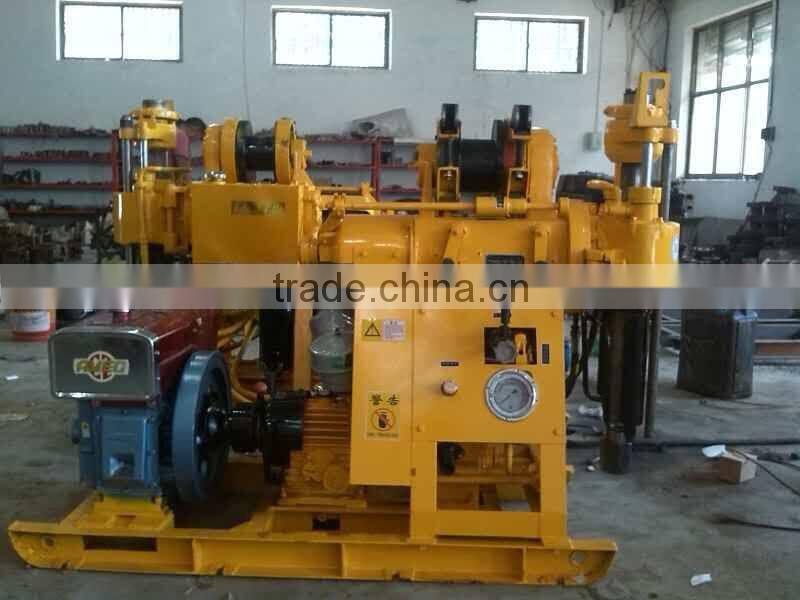

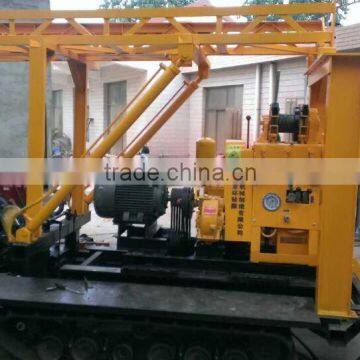

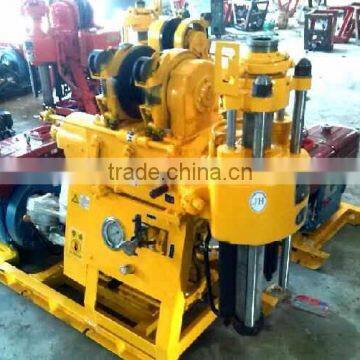

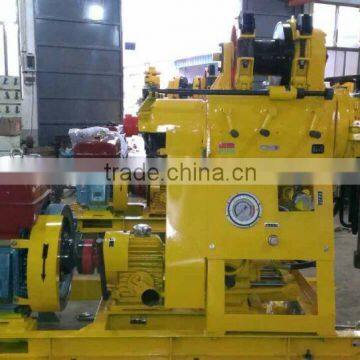

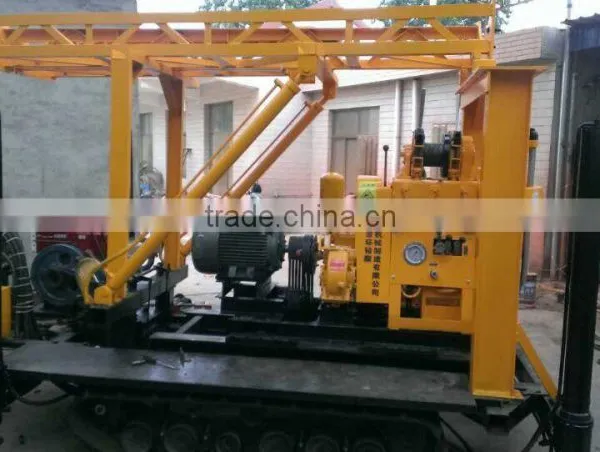

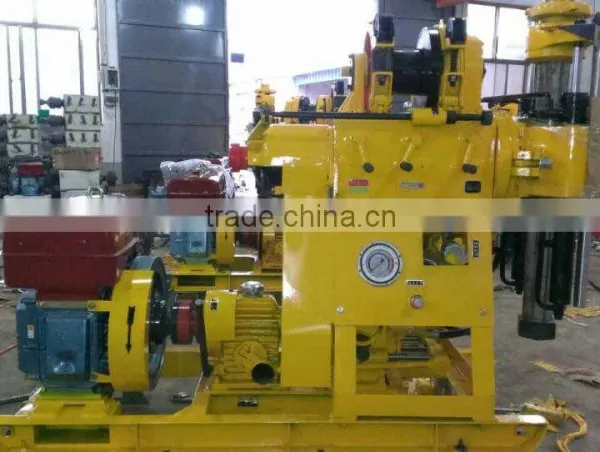

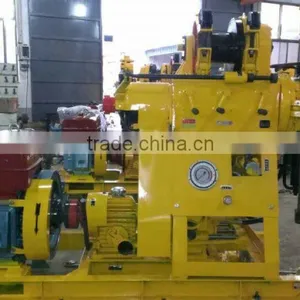

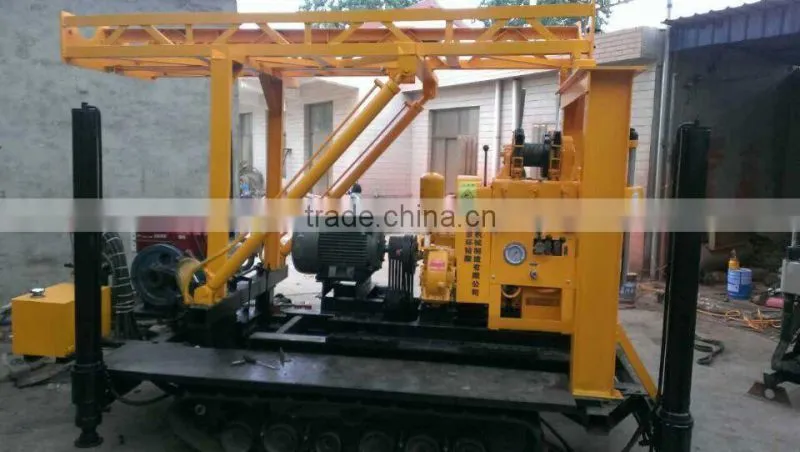

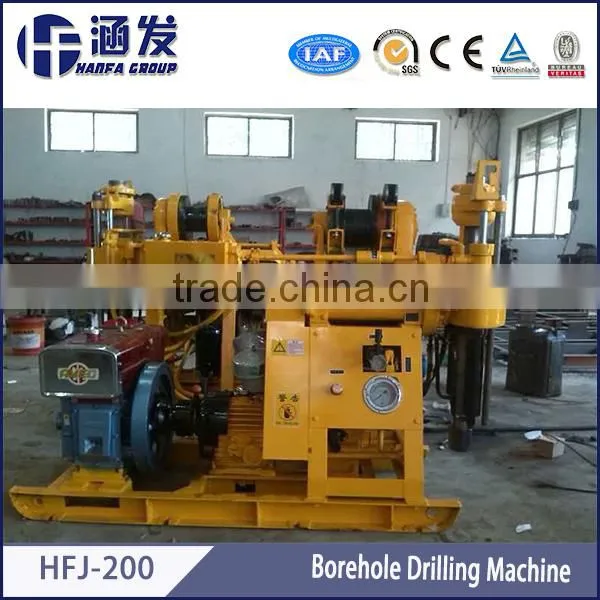

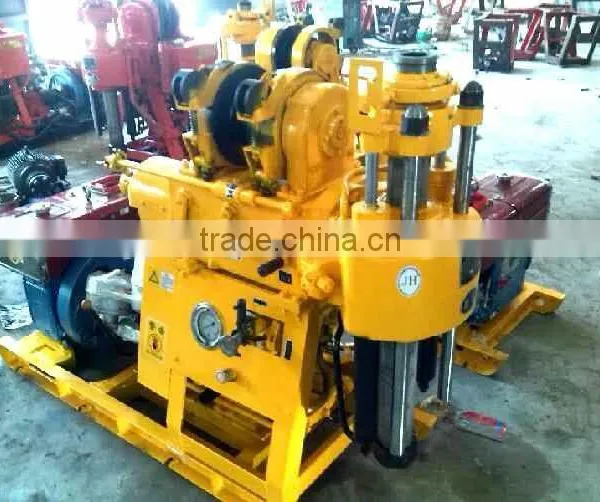

HFJ-200 multipurpose portable engineering borehole drilling machine
HFJ-200 multipurpose portable engineering borehole drilling machine is a multipurpose and new light engineering machine which equip mechanical drive and hydraulic feed type.This machine has high power, light weight, winding can type, more speed gear, and have hydraulic mobile function, can drill engineering geology and hydrogeology bore,filling pile hole.
HFJ-200 multipurpose portable engineering borehole drilling machine used for:
1. The high-rise buildings, railways, highways, Bridges, reservoir and power station dam foundation, harbor, dock and other basic engineering survey.
2. All kinds of high-rise buildings, bridge foundation, small pier foundation engineering construction and foundation reinforcement and diaphragm wall construction.
3. The water well drilling rig for diameter of less than Φ600
4. Detect holes, first-aid hole, injection energy storage hole, engineering quality inspection hole, geological exploration, coal field exploration and drilling.
HFJ-200 multipurpose portable engineering borehole drilling machine main features:
1.Power, power distribution motivation or diesel engine, the power of 15 kw.The quality is light, long service life
2.Good at percussion drilling work, hoist adopts friction clutch structure, solves the problem of gear structure is not easy to add lubricant.
3.Easy to collapse, easy to operate, easy to repair and relocation.
4.Large range of speed regulation, and can meet the needs of the various strata and various drilling.
5.Vertical shaft rotary machine can be arbitrary rotation drilling anchor hole, can completely replace the special anchor drilling machine
6.Only need to change the vertical gyrator gear, can make HFJ - 200 type into HFJ - 200 type.Achieve multi-usage, wider application scope.
HFJ-200 multipurpose portable engineering borehole drilling machine technical data:
| Gyrator | Rotation rate | 87,132,228,304,464,798r/min |
| Feed stroke | 450mm | |
| Maximumoperation torque | 2300Nm | |
| Maximumfeed pressure | 25KN | |
| Maximumpull force | 30KN | |
| Winch | Maximum hoist capacity(single-rope) | 20KN |
| Rollwire speed | 0.49,0.75,1.29m/s | |
| Rope diameter | 11mm | |
| Length of rope | 20m | |
| Oil pump | Type | Gear pump |
| Model | CBT-E316FER2 | |
| Rated pressure | 20MPA | |
| Rated flow | 16ml/r | |
| Rated speed | 2000r/min | |
| Power machine | Electric motor | Y160L-4 15KW |
| Diesel engines | ZS1110M 20HP | |
| Weight | Weight(except power) | 740kg |
| Size | Electric motor | 1790×1000×1500MM |
| Diesel engines | 1790×1000×1500MM |
1.New machine provides technical train.
2.Once anything goes wrong with the machine by normal using,our technical person must appear at the first time no matter where you are.
3.When the machine should be maintained,you will receive the reminding from us.
4.According to different geological conditions,we will recommend different construction plans for you.
5.Remind you which are wearing parts,so you can prepare enough.
6.24 hours respond to your quality problem.
7. Other customer's reasonable request
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.

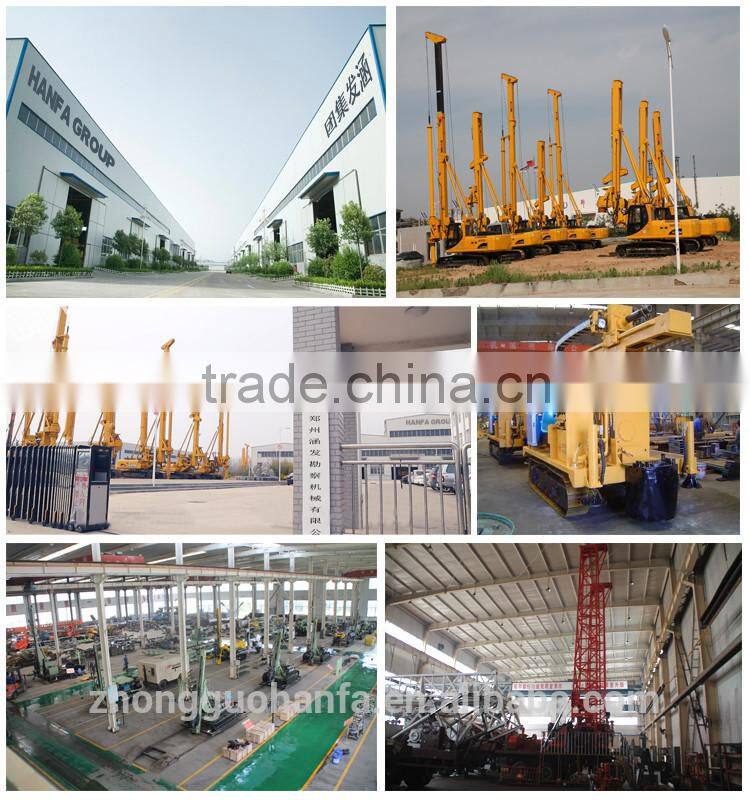

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,engineering drilling rig,DTH drilling rig,horizontal directional drilling rig,etc.These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
