Economical and practical ! High Air Pressure HF150Y air compressor drilling machine
1. Application of HF series water well/core drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about this drilling rig

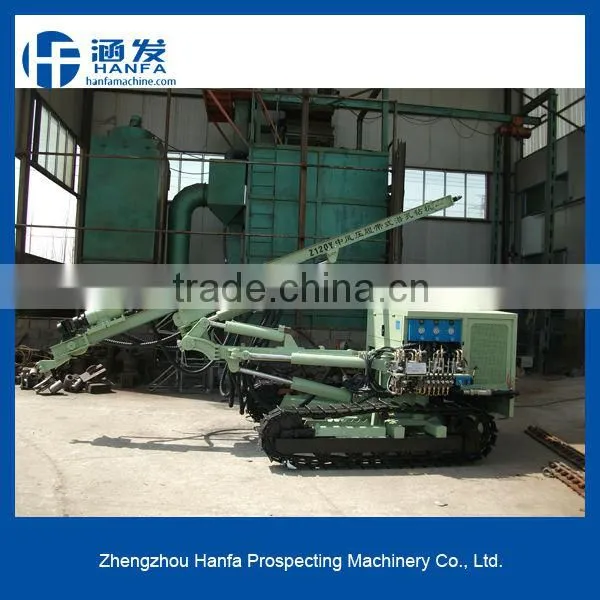

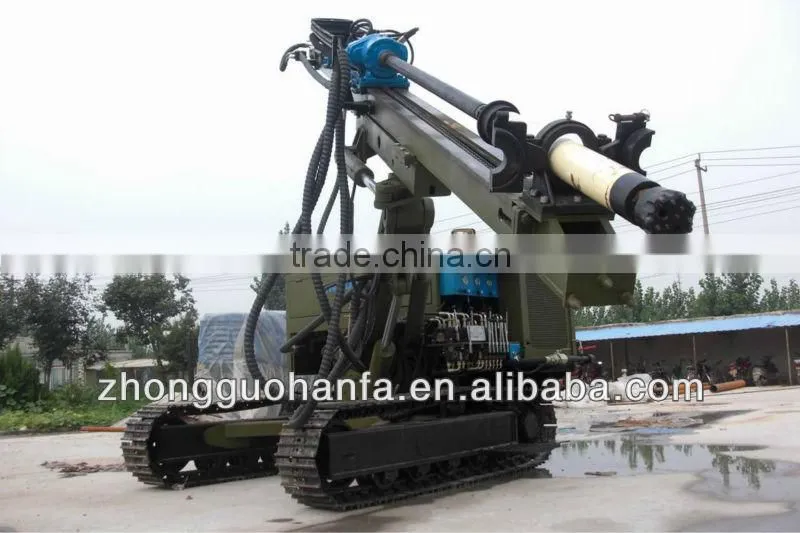

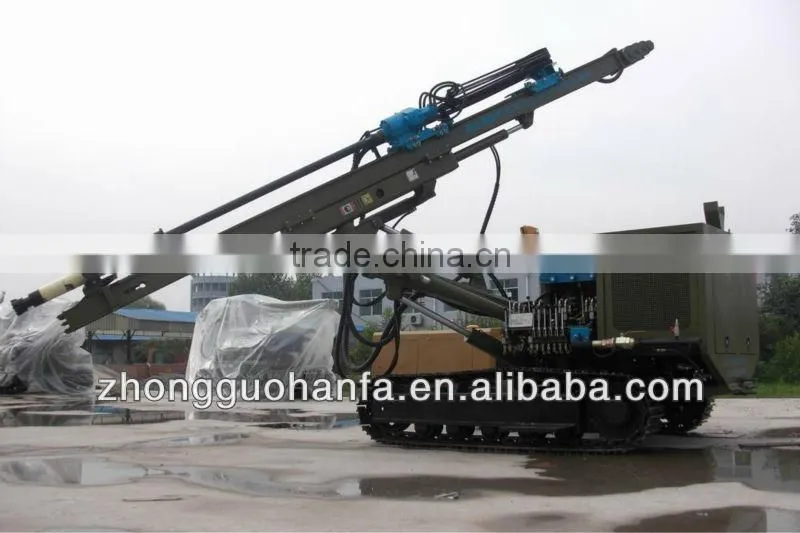

HF-110Y hydraulic drilling rig ,using a new hudraulic technology,with low air consumption rotary torque,variable-bit-shift hole easy .
The drilling rig compact structure ,while promoting a retractable sliding shelf compensation,drilling when the sliding frame support on the ground ,drilling and good stability.Use z110 rig reliable Chazzan efficient drilling in hard rock,rock cutting speed is low air pressure of 1-2 times the rig is a constructiong unit to reduce the cost and enhances efficiency of the strong guarantee.
drilling rig is mainly wuitable for open mining .water conservancy,power plants,road buiding and other rock blasting whole drilling .
Main technical parameters
Total Weight (kg) |
3300 |
Drilling diameter (mm) |
90---130 |
Dimension (L * W * H) (mm) |
5200*2060*2020 |
Drilling depth (m) |
30 (max:50) |
Travelling speed (km/h) |
2 |
Once promotion distance (mm) |
3000 |
Grade ability (°) |
25 |
Working pressure (mpa) |
0.7—1.6 |
Air consumption (m³/min) |
10---15 |
Skid pitch (°) |
up and down total 100 |
Host Power (kw) |
33 |
|
Sliding tilt swing (°)
|
Left 35, right 10 |
For rock (f) |
6--20 |
Skid compensation (mm) |
900 |
Impact frequency (r/min) |
950--1500 |
note:The company is products continued to improve;various design and technical specifications may change at any time,without any additional notice or obligation. | |

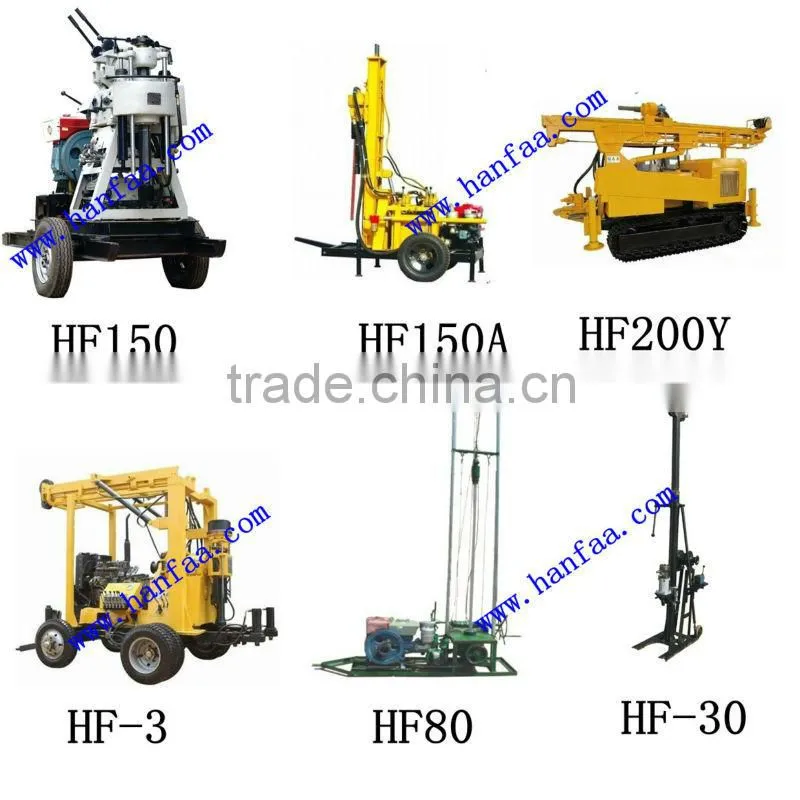

3,Designs of HF series water well/core drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
4. Production ability

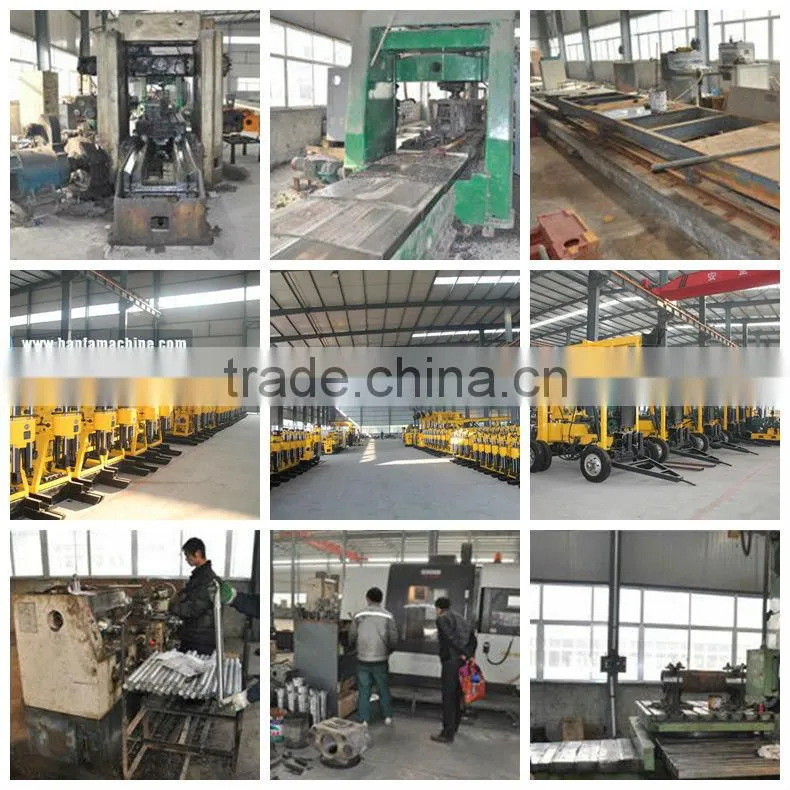

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
6. Packing
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
8. Quality guarantee
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
