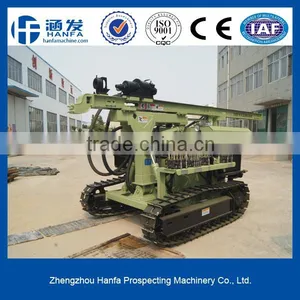

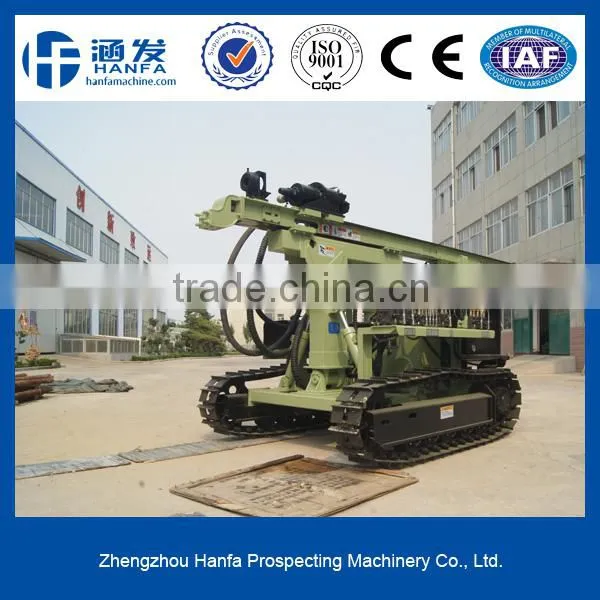

HF115Y High Pressure Crawler opens whole drill rig
HF115Y-type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption ,large rotary torque,
conveniently move the hole. The drilling rig’s structure is compact. while promoting a retractable sliding shelf compensation,
drilling when the sliding frame support on the ground, drilling and good stability. Use HF115Y rig reliable and high efficiency in drilling rock.
The drilling speed is low air pressure of 1-2 times the rig is a construction unit to reduce the cost and enhances efficiency of the strong guarantee.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Bore diameter |
90-130mm |
Bore depth |
40m |
Walk speed |
0-2.5kw/h |
For rock |
F=6-20 |
Air pressure |
0.7-1.6Mpa |
Air consumption |
7-15m³/min |
Once promotion |
3000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 70° |
Rotation speed |
0-120r/min |
Host power |
45Kw
|
Climb ability |
35° |
Dimension(L*W*H) |
5270*1950*2300(mm) |
weight |
4170Kg |
Send Inquiry to This Supplier
