Product Details
Place of Origin: | Henan, China | Brand Name: | HF portable hydraulic drilling machine | Model Number: | HF200 portable hydraulic drilling machine |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

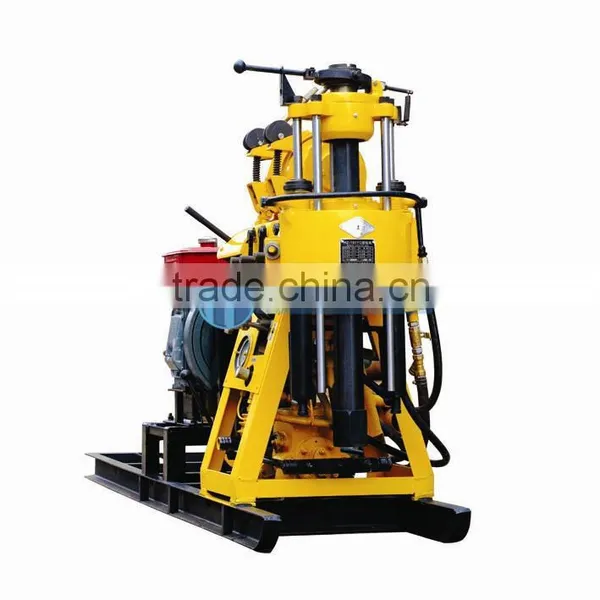

Small Hydraulic Drilling Equipments
1,Drilling depth can reach 30-200m
2,Steel’s quality is good, torque is large
3,Easy operation, free-maintaining,
4,Applying to various complex strutam, such as pebble bed, aggregate bed.
5, Saving money, compact construction, easy moving
6, It adopts to geological exploration, exploration of high building construction, rivers construction, civil water well
7, It can do standard penetration test, can use auger drilling and sampling with solid stem and It also can do the triple rod jet grouting.
HF200 Main Technical Parameter
Specifications | ||
Unity machine parameter | ||
Drilling depth | 30--200m | |
End hole caliber | 500-75mm | |
Drill rod caliber | 50mm | |
Drilling angle | 90°~75° | |
Drill weight (No include power) | 910kg | |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m | |
Spindle | ||
pindle speed | 64,128,287,557r/min | |
Spindle stroke | 450mm | |
Hoist | ||
Max.single line hoisting capacity | 2000kg | |
Single line lifting speed | 17,35,75,151r/min | |
Tightrope caliber | 12.5mm | |
Tightrope cubic measure | 35m | |
Hug floodgate caliber | 254mm | |
Hug folldgate belt width | 70mm | |
Distance between drill and hole | 400mm | |
Mud pump | ||
Type | Horizontal single urn twin-action | |
Displacement | 170L/min | |
Diesle engine | S1110 22HP | |
Electric motor | Y160M—4 15kw 1440r/min | |
Maximum pressure | 1.5Mpa | |
Work pressure | 0.7Mpa | |
Water inlet caliber | 40mm | |
Water to exit caliber | 30mm | |
Triangle conveyer belt | B1728mm | |
Suit scope | ||
Our customer at our office: | ||
Our customer at our factory:
Our office:
Our factory: |
