Hot!!!Crawler Type HFD-3 Hydraulic Borehole Drilling Machine
- 30 Set / Sets per Month
- Qingdao Shanghai
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Core Drilling Rig | Place of Origin: | Henan, China |
| Brand Name: | Hanfa | Model Number: | HFD-3 | Usage: | Water Well |
Product Description
Specifications
Hydraulic Borehole Drilling Machine1.Hydraulic system
2.Crawler chassis
3.Deep hole drilling
4.High efficiency

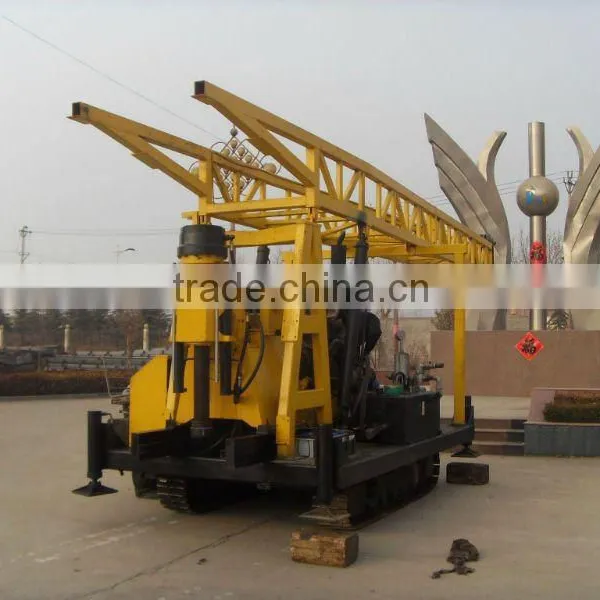

Crawler Type HFD-3 Hydraulic Borehole Drilling Machine
Specifications:
Drilling depth | m | 10-600 |
Open hole caliber | mm | 300 |
End hole caliber | mm | 75 |
Drilling rod | mm | Φ60 |
Drilling angle |
| 90°-65° |
Spindle | ||
Spindle forward speed | r/min | 30-1050 |
Spindle reverse speed | r/min | 29-137 |
Spindle stroke | mm | 560 |
Spindle inner diameter | mm | 96 |
Spindle lifting capacity | KG | 6000 |
Hoist | ||
Single line lifting speed | m/min | 0--45 |
Hug floodgate belt width | mm | 90 |
Tightrope caliber | mm | 14 |
Hoist single line lifting capacity | KG | 3000 |
Reel caliber | mm | 200 |
Reel cubic measure | m | 30 |
Mud pump | ||
Horizontal Triplex BW-250actuator | ||
Displacement | L/min | 250 |
|
|
|
Work pressure | Mpa | 7 |
Water inlet caliber | mm | 70 |
Water to exit caliber | mm | 50 |
Oil pump | ||
Duplex gear oil pump CBF-F63/25 | ||
Front displacement,pressure |
| 63L/min 20Mpa |
Behind displacement,pressure |
| 25L/min 20Mpa |
Drilling rig Power | ||
Diesel engine | Hp | 76HP |
Electric motor | KW | Y180L-4 55KW |
