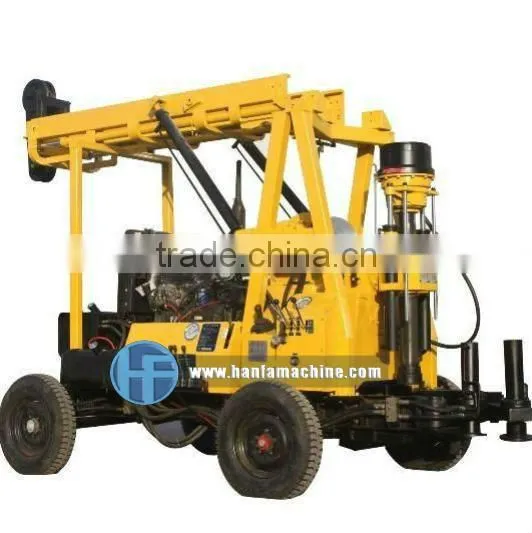

Best Seller!HF-3 41HP Ground Survey Drilling Tools

Name: Best Seller!HF-3 41HP Ground Survey Drilling Tools
Brand: Hanfa
SKU: 101800137
Availability: InStock

US$ 24,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Core Drilling Rig

Place of Origin:

Henan, China

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Core Drilling Rig

Place of Origin Henan, China

Brand Name Hanfa

Model Number HF-3 ground engaging tool

Usage Water Well

HF-3 27HP Ground Survey Drilling Tools

1.Hydraulic and trailler type, easy to operate and move
2.Rock expert,high efficient
3.ISO9001:2000

Drilling depth	m	300
Open hole caliber	mm	300
End hole caliber	mm	75
Drilling rod	mm	Φ60
Drilling angle		90°-65°
Spindle
Spindle forward speed	r/min	57-1024
Spindle reverse speed	r/min	45-212
Spindle stroke	mm	560
Spindle inner diameter	mm	96
Spindle lifting capacity	KG	6000
Hoist
Single line lifting speed	m/s	0.515 0.894 1.421 1.948
Hug floodgate belt width	mm	90
Tightrope caliber	mm	12.5 or 14
Hoist single line lifting capacity	KG	3000
Reel caliber	mm	200
Reel cubic measure	m	30
Mud pump
Horizontal double actuator
Displacement	L/min	200,125
Triangle conveyer belt type		B×5
Work pressure	Mpa	4.6
Water inlet caliber	mm	65
Water to exit caliber	mm	37
Oil pump
Duplex gear oil pump F532/F314
Front displacement,pressure		32L/min 20Mpa
Behind displacement,pressure		14L/min 20Mpa
Drilling rig Power
Diesel engine	Hp	395Kz 27HP
Electric motor	KW	Y180L-4 22KW
