Specifications

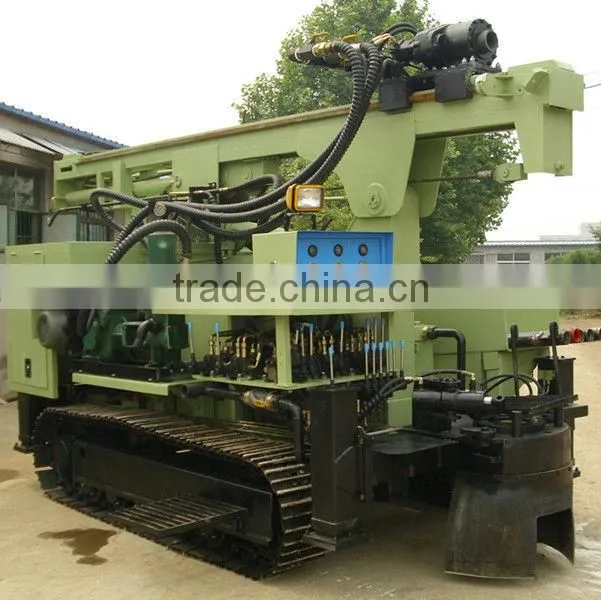

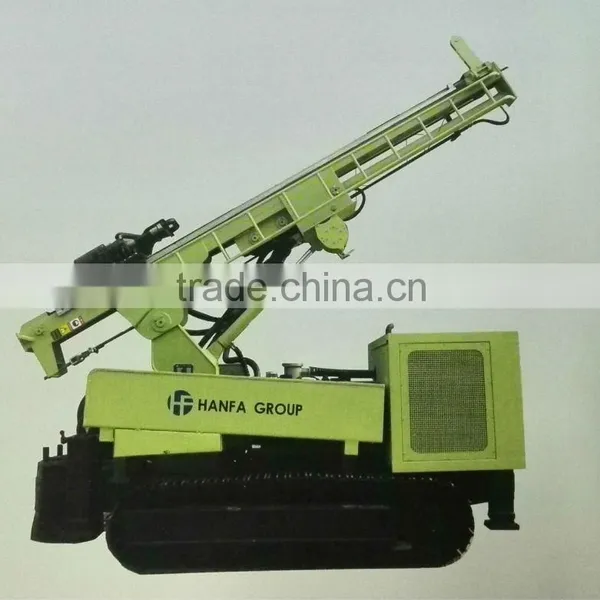

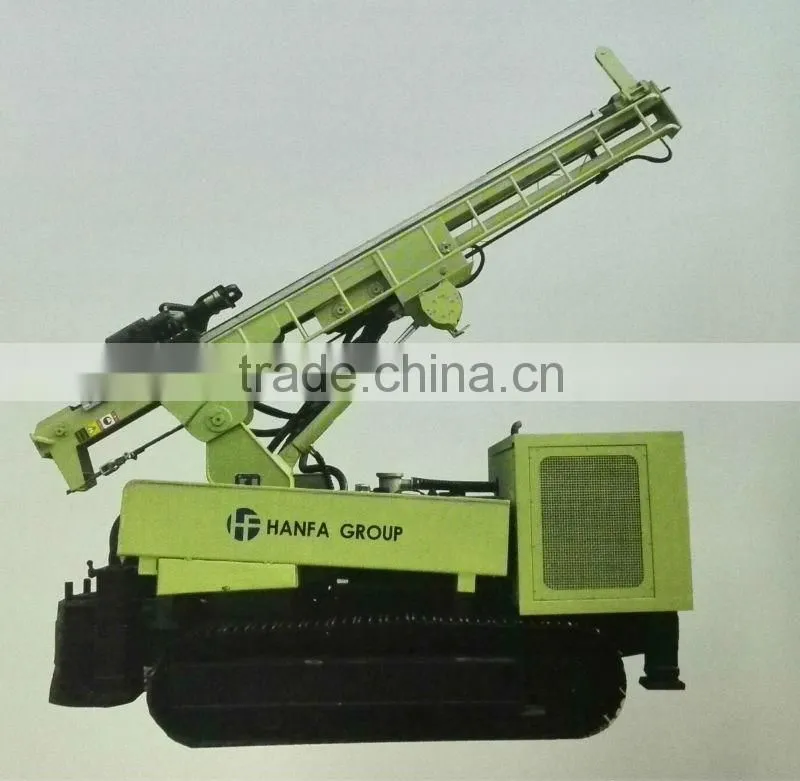

HF180Y water boring machine1.crawler type,easy move
2.depth 180m,dia.90~215mm
3.hydraulic,easy operate
4.for rock,sand,soil
for water well and core drilling,crawler type HF180Y water boring machine,can drill depth up to 320m,easy operate
HF180Y track-type multi-well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to
different textures. It is widely used in industrial and agricultural water conservancy projects, such as
drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal
heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation
connected with a variety of engineering requirements;
Main Features
1. Console and platform combination, easy to operate, with platform wide enough to enable the
operator and the assistant to leave the mud appropriate height operations, folding walking platform,
the control system to focus on the operation platform, easy to operate;
2. Hydraulic driving force for car engines, according to the impact of perforation size and the selected
configuration corresponding compressor can greatly reduce the energy consumption and construction
investment costs;
3. Steel crawler chassis and hydraulic jacks and level of instrument use; it can guarantee its complex
environment in any rugged and accurate under normal perforation operation;
4. Rotating power head has two low-speed high torque hydraulic motor drive, can ensure strong torque output. In the main volume state,
turret and the centering device put on one side, away from the centerline, to enhance the discharge
rod or casing;
Technical Date
Drilling diameter (mm) |
90-215 |
Drilling depth (m) |
180 |
Work Pressure(Mpa) |
1.05-2.46 |
Consumption (m³/min) |
16-30 |
Drill pipe length (m) |
3 |
Drill pipe diameter (mm) |
76 |
Dimensions(mm)(L*H*W) |
5020*2040*3200 |
Grade ability (degree) |
25 |
Footage efficiency(m/h) |
5-20 |
Traveling speed(Km/h) |
0-2.5 |
Total weight(t) |
6.8 |
Feed systems |
|
Axle pressure (N) |
40820 |
Lifting power (N) |
68040 |
Rotary torque (Nm) |
3200 |
rotary speed |
0-130 |
Host Power (Kw) |
55 |

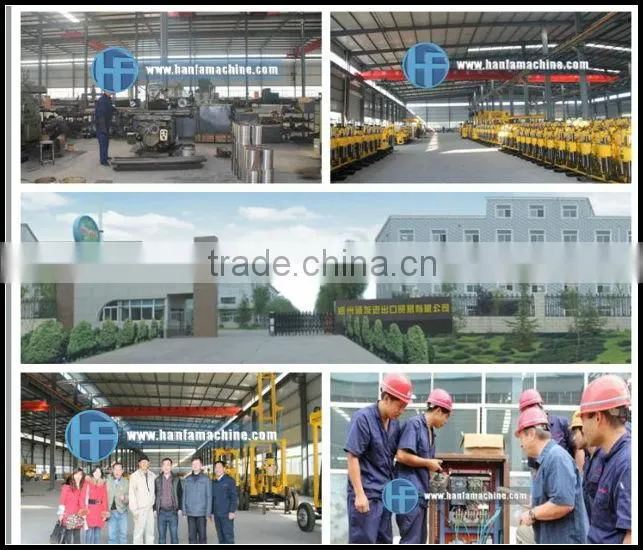

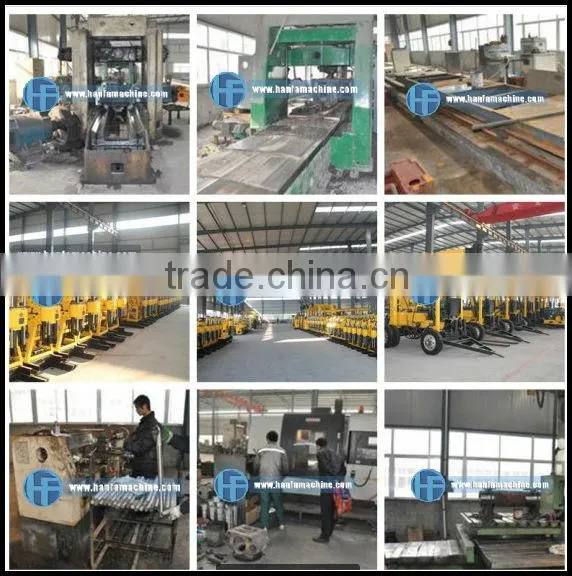

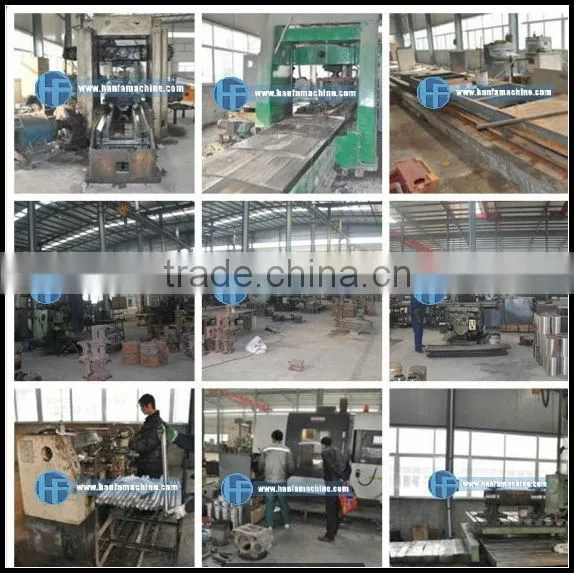

Production department

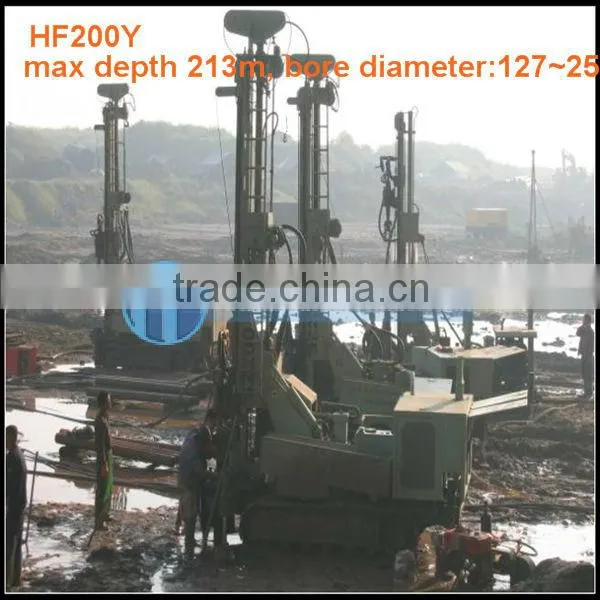

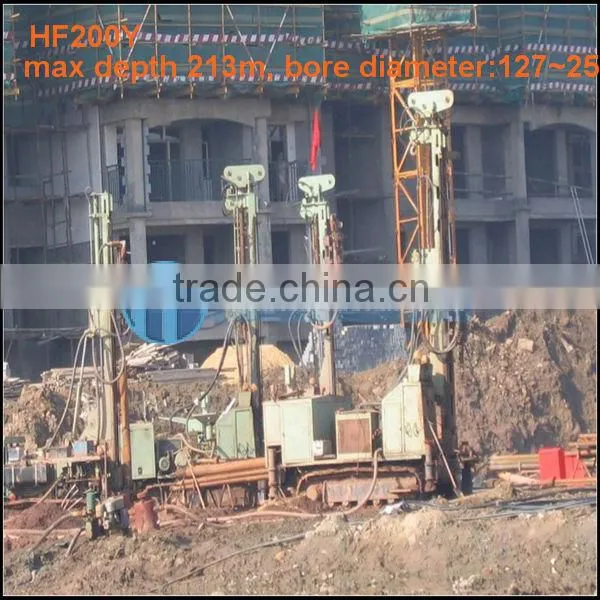

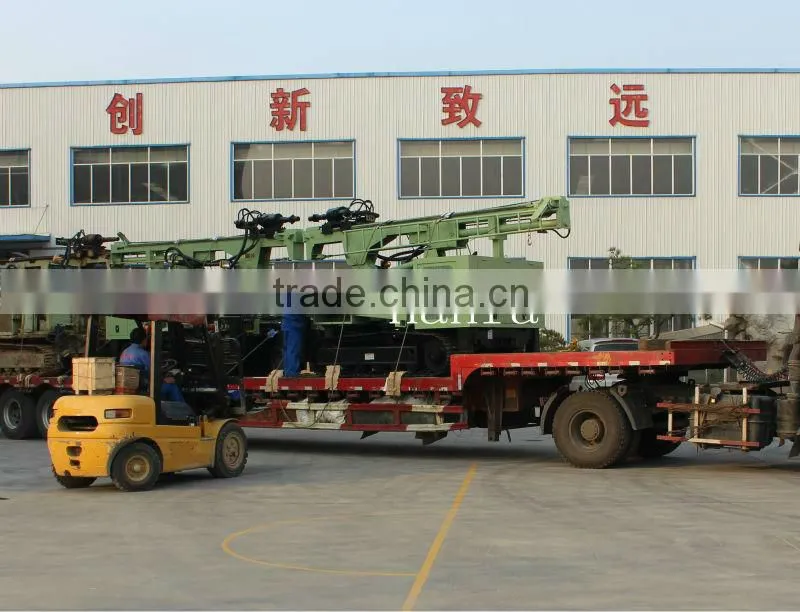

Working site
