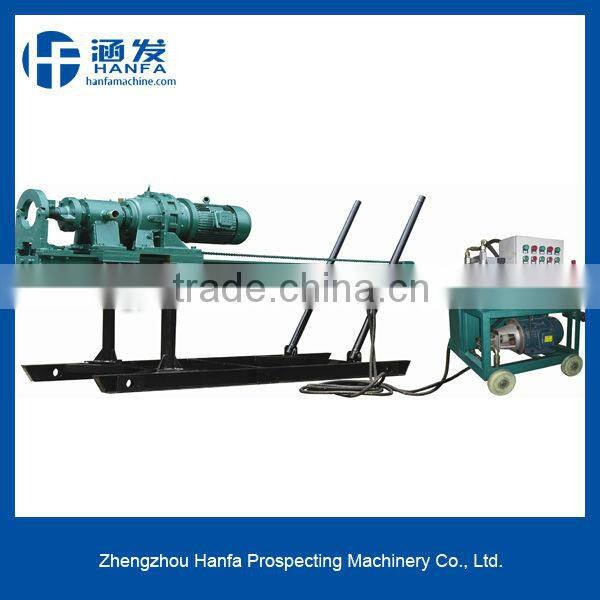

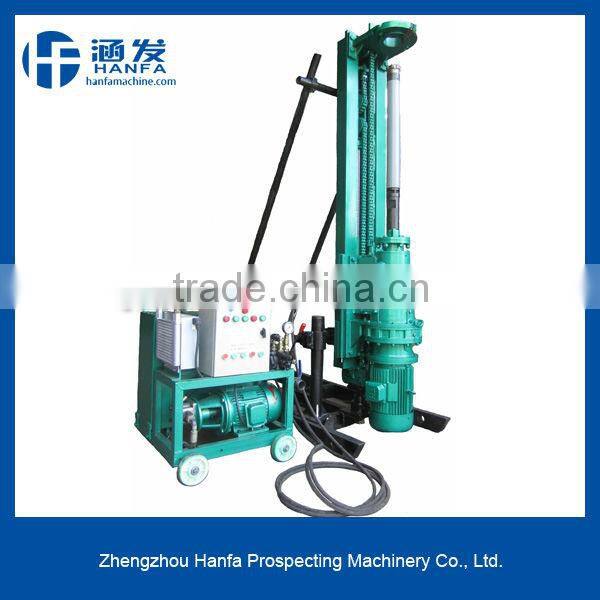

HFA40 anchor drilling machine for sale
Specifications
1,full hydraulic power head
2,can be used in water conservancy, railway and road side slope
3,for anchoring hole, drain hole..
1, simple up and down device
The simple up and down device can adjust the horizontal height of anchor cable hole easily.
Wear resisting Nylon plate can prevent guide track from wearing when power head operates.
2, reliable power head
Cycloidal gear reductor and electric motor forms power head. The power and torque transmit is stable and big.
The air packet is the air source inlet of impactor, in the meanwhile it can reduce the impact of power head from drilling rod.
3, reliable propulsion device
This device adopts hydro-cylinder and chain propulsion with compact structure, big lifting force and good stability.
4, centralized control system
Electric operating and rock drilling work are both centralized controled. It is convenience and fast.
The unidirection throttle valve can adjust feeding speed at any time.
Propulsion reducing valve hand wheel can adjust propulsion force as per different working situation.
| model | HF40 |
| bore depth | 10~60m |
| bore diameter | 90~180mm |
| drilling rod diameter | Φ76 x 1500mm |
| bore dip angle | 0~90° |
| power head torque | 2400N·m |
| max. lifting force | 25KN |
| max. propulsion force | 0~20KN |
| electric motor power for power head | 5.5kw or 7.5kw |
| electric motor power for hydraulic system | 4kw |
| weight | 500kg |
| max. component weight | 150kg |
| overall dimension | 2800x800x1400mm |
