Specifications
BW850 drill powered pump !best seller in Africa1.Mud pump work with drill rig
2.Slurry pump

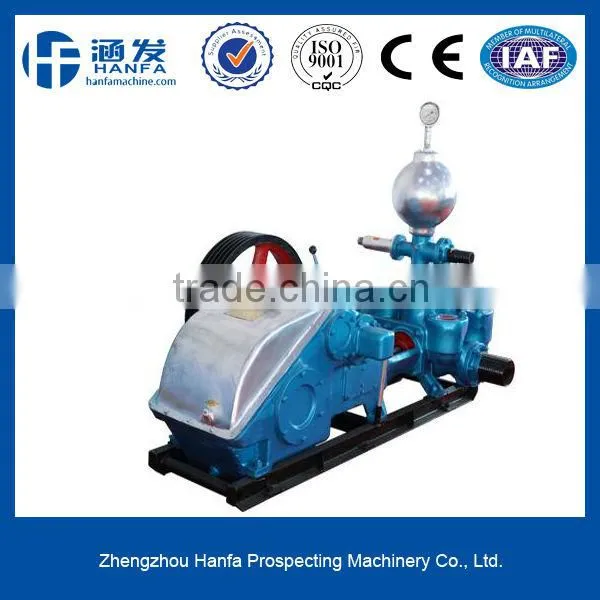

High efficiency mud pump BW850
- Application
This drilling Mud Pump are horizontal reciprocating dual cylinder,double acting pistion type.it’s uesed for pressing washing liquid(mud or water) into the drilling well when the geological drilling performs and is adaptable to the 200-600m water well drilling rig
It is characterized by bigger displacement,high pressure,long working life of wearing parts,easy maintenance
In drilling fields,it’s used to raise drilling efficiency,reduce drilling costs,the pump have been highly appreciated by users,it’s an ideal and economic equipment for drilling
- Parameter :
Specifications |
BW850 |
Cylinder diameter |
150 mm |
Piston Stroke |
180 mm |
Number of Strokes |
82, 58 Num./min |
Displacement |
850, 600 litre/min |
Pressure |
2.0, 3.0 mpa |
grooved pulley |
Φ700*C-5 |
Speed of V-Belt wheel |
470 rpm |
Power input |
37 kW (HP) |
Diameter of suction pipe |
125mm (5’’) |
Diameter of discharge pipe |
65 mm (2-1/2”) |
Diameter of Return pipe |
40mm |
Overall dimensions (LxWxH) |
2000 x 1030 x 1400 mm |
Weight |
1500 kg |
-
