Specifications

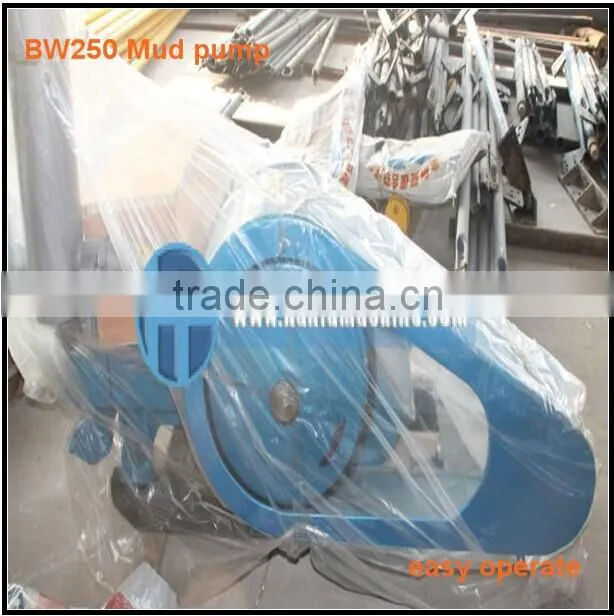

BW250 mud pump for 200-300m depth water well projectCapacity:250L/min
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
Mud mixing pump
1.model:BW160,BW200,BW250
2.diesel engine for power,easy to operate
3.superior quality,light weight
4.ISO

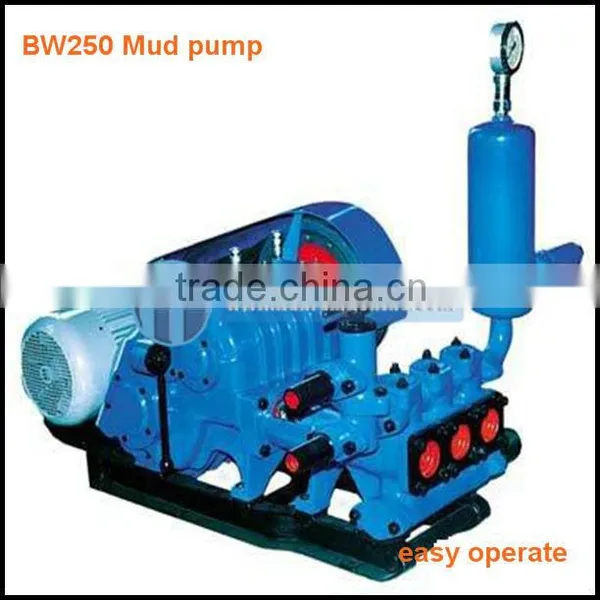

Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engineer.
It can match 1500m drilling machine at the deepest, and it can also perfue slurry.
This pump is power saving, easy to operate, high quality and durable, easy to disassemble and relocate.
Stroke |
100mm |
|||||||
Liner Diameter |
80mm |
65mm |
||||||
Gears |
I |
II |
III |
IV |
I |
II |
III |
IV |
Reciprocate Times(Times/Minute) |
200 | 116 | 72 | 200 | 200 | 116 | 72 | 42 |
Displacement(liter/minute) |
250 | 145 | 90 | 166 | 166 | 96 | 60 | 35 |
Pressure (MPa) |
2.5 | 4.5 | 6.0 | 4.0 | 4.0 | 6.0 | 7.0 | 7.0 |
Dimension rate |
85% |
|||||||
Power |
15Kw |
|||||||
Triangular section belts |
B× 5 410mm |
|||||||
Input speed |
500r/min |
|||||||
Suction water height |
2.5m |
|||||||
Suction Pipe Diameter |
76mm |
|||||||
Discharge Pipe Diameter |
51mm |
|||||||
Dimensions |
1100× 995× 650mm |
|||||||
Weight |
500KG |
|||||||
1.Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your work site and provide the training for your staff.
5.What about the quality warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
