Specifications

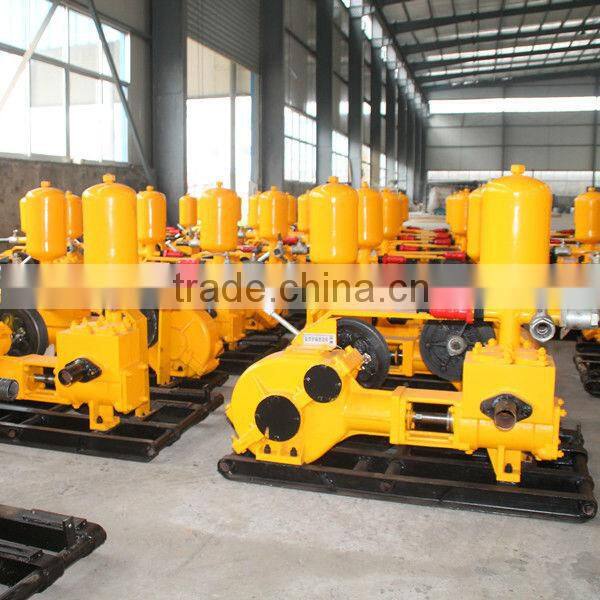

BW160 mud pump for 200m depth water well projectCapacity:160L/min
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
Mud mixing pump
1.model:BW160,BW200,BW250
2.diesel engine for power,easy to operate
3.superior quality,light weight
4.ISO

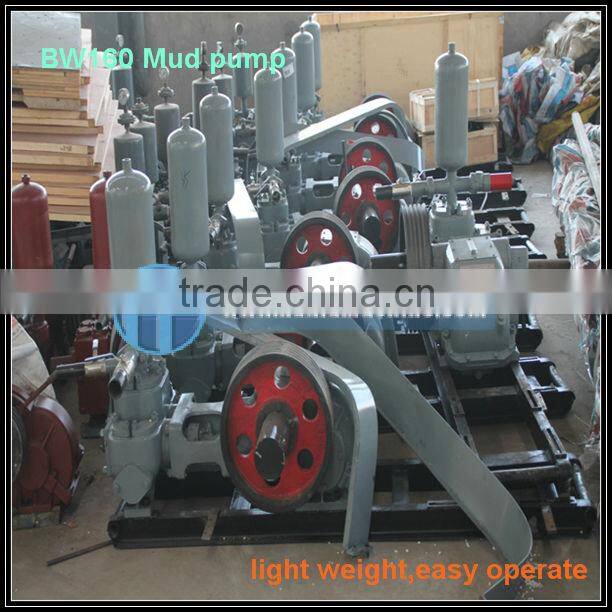

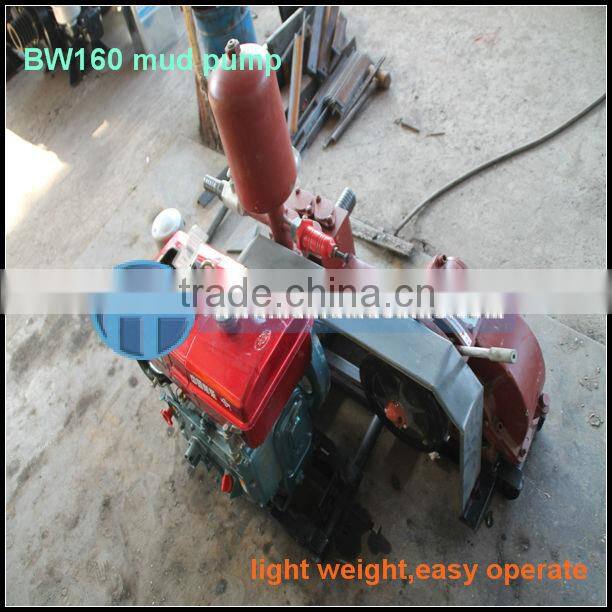

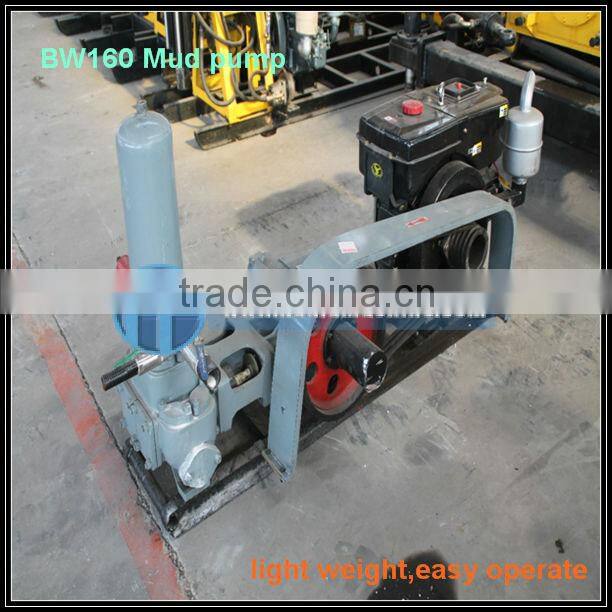

The BW-160 mud pump is a Horizontal single urn twin-action pump, It is mainly used to supply flushing fluid to the drilling well in engineering drill's bedrock drilling or exploratory drilling.
BW160 mud pump is small volume, light weight, easy operate and repair;
Type |
Horizontal single urn twin-action |
Liner Diameter |
95 mm |
| Stroke | 85 mm |
| Reciprocate Times |
165 times/ minute
|
Displacement |
160 L/min |
Pressure |
1.3 MPa |
Input Power |
5.88 KW |
Water inlet caliber |
45 |
Water to exit caliber |
38 |
V-shaped belts (B*3) |
310 mm |
Input Speed |
951 rotations/min |
Mass (including the engine) |
200 kg |
Dimensions |
1110*725*965 mm |
1.Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your work site and provide the training for your staff.
5.What about the quality warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
