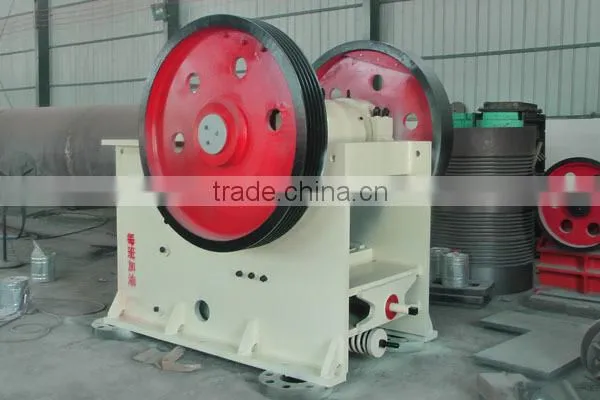

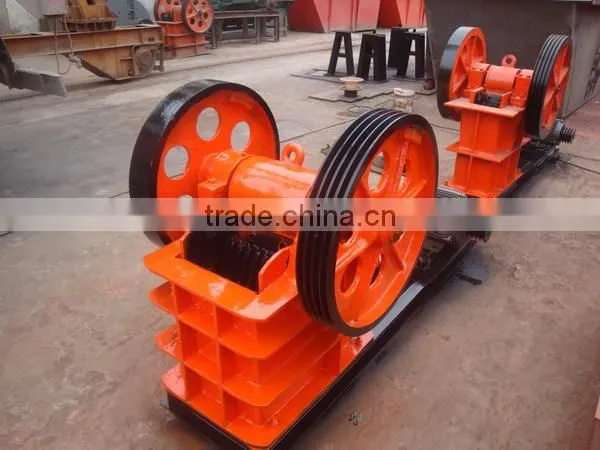

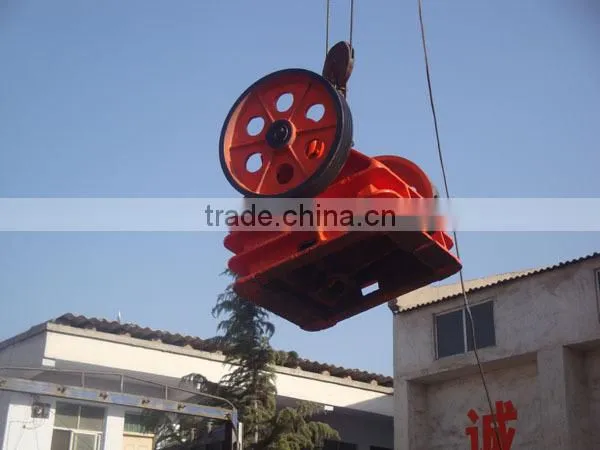

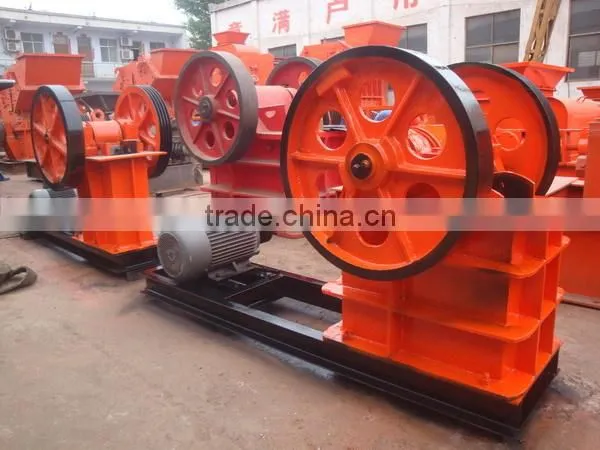

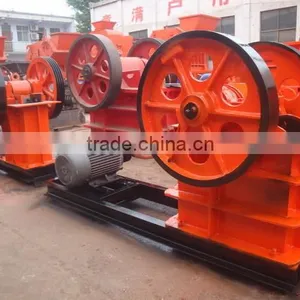

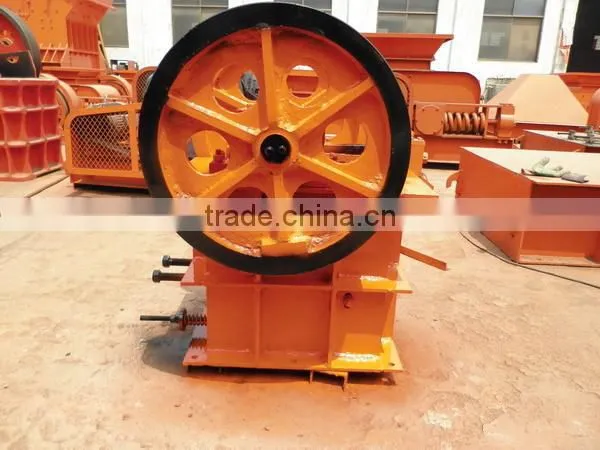

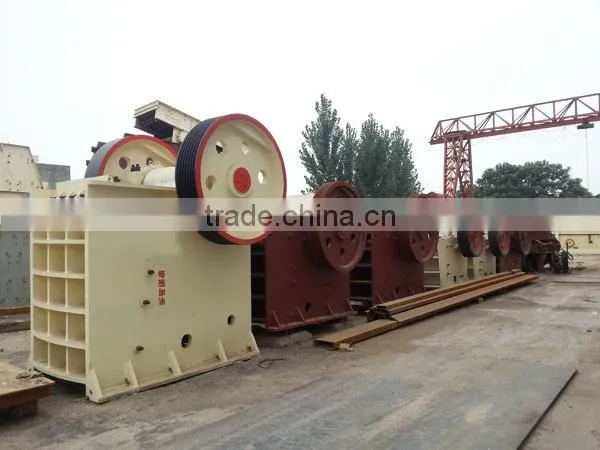

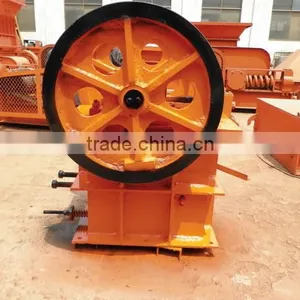

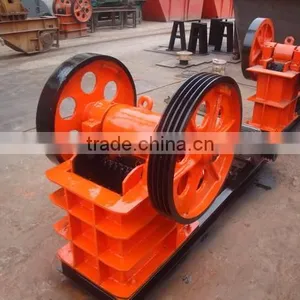

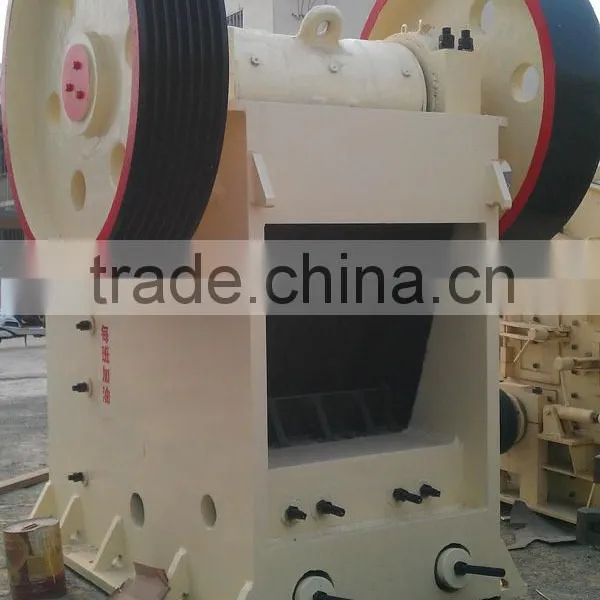

Description of jaw crusher:
Jaw Crusher is the successful experience in similar products at home and abroad, for mining, smelting, building material, highway, railway, water conservancy, road construction and other industrial sectors quarries, The product specification is complete, the feed size from 125-250mm.
Working principle:
The motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Features of Jaw Crusher:
1.Its motor drives the eccentric shaft to rotate via V-belt .
2.Two types:coarse crusher and fine crusher.
3.Movable jaw to carry out periodical complex pendular movement to generate crush capacity.
1.Select equipment model;
2.Design and manufacture products according to customers’ special requirement;
3.Train technical personnel for clients;
4.Assist clients to prepare for the first construction scheme;
5.Install and debug the equipment;
Zhengzhou Huahong mechanical equipment Co.,Ltd is a limited liability company mainly engaging in producing large and medium-sized serious broken-based milling machine and integrating with research,production and sales.
Our company brings together a scale of management,scientific research elites determined to make progress and on behalf of the industry leading level.With strong technique power and all kinds of professional technicians,our company boasts the ability to undertake the design,development and manufacture of the project and installation and debugging of completeplant.The product of our company has approved by ISO9001:2000 international quality system and the reliable,stable quality of the product of our company is famous at home and abroad,which has been sold in HongKong,Indonesia,Australia,Mali and Ghana untry and region.
Technical data for jaw crusher
| Certification and type |
Max.feed lump size (mm) |
Adjustment range (mm) |
Production capacity (m3/h) |
Maine shaft speed (r/min) |
Motor power (kw)
|
Weight (kg) |
| PEF150x250 | 125 | 10-40 | 1-3 | 285 | 7.5 | 700 |
| PEF200x300 | 165 | 20-70 | 2-8 | 265 | 11 | 800 |
| PEF250x400 | 210 | 20-80 | 5-20 | 310 | 15-18.5 | 3000 |
| PEF400x600 | 340 | 40-90 | 10-40 | 275 | 30 | 7200 |
| PEF350x750 | 290 | 30-55 | 20-50 | 300 | 37 | 8900 |
| PEF500x750 | 425 | 50-100 | 34-68 | 275 | 55 | 11320 |
| PEF600x900 | 480 | 75-200 | 40-120 | 255 | 75 | 17600 |
| PEF750x1060 | 630 | 80-200 | 80-160 | 250 | 90 | 30530 |
| PEF900x1200 | 750 | 100-200 | 110-200 | 250 | 110 | 50000 |
| PEF1000x1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55000 |
| PEF1200x1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100000 |
| PEX150x750 | 125 | 10-40 | 5-15 | 300 | 15 | 3600 |
| PEX250X1000 | 210 | 15-55 | 10-32 | 300 | 30-37 | 7350 |
| PEX250X1200 | 210 | 15-60 | 12-38 | 300 | 37 | 8700 |
| PEX300X1300 | 250 | 20-90 | 16-65 | 300 | 55 | 11600 |
Why are you choose us ?
1.We can bring you High-quality equipment and vey competitive market price and bring you more profits .
2.Our factory have more than 21 years of manufacture industry machine experience, we can solve various problems in the work, to improve the machine efficiency for you .Our engineers can also design the machine as the customers requirements .
3.We also has a good supply system, can provide you one-stop service with the pre-sale, sales and after sale service .Its save your purchasing cost and maintenance cost .
Welcome to zhengzhou Huahong mechanical equipment Co.,Ltd
Feel free to contact us if need more informations about our product!
