Specifications

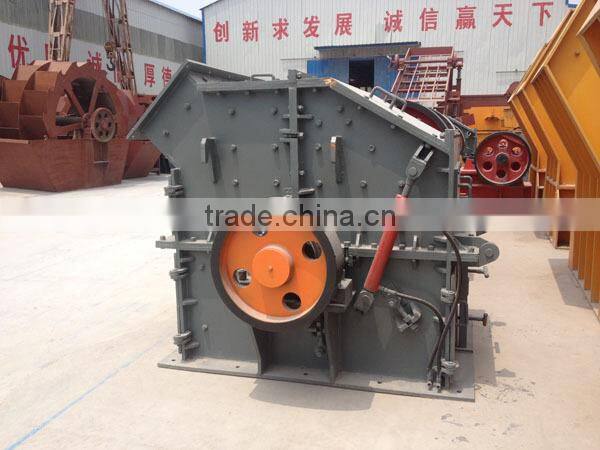

Small Sand Making Machine
1.Small and equal feeding out size
2.High production capacity
4.low supporting power
Sand Making Machine Introduction:
With the digestion and absorption of the advanced technology and connecting the working conditions of the ralated industries, the Reaction High efficiency Sand Maker is newly researched and high efficient sand maker. It is widely used in fine crushing of many minerals, such as granite, basalt, limestone, cobble, cement clinker, quartzite, iron ore and bauxite etc. And it also can produce the superior aggregate materials for the using areas of high-level road, railway, hydroelectricity, airport, cement, resistance materials and metallurgy, etc.
Sand Making Machine Features:
1.Small and equal feeding out size
2.High production capacity
3.Long service life ,low supporting power
4.Changing the three grades crushing to two grades crushing
5. Simple structure, easy maintenance and stable operation
Sand Making Machine Principle:
When the Impact High-efficient Sand Maker is working, materials are crushed primarily in the first crushing chamber by the high speed moving rotor against the hammer, and then enter the secondary chamber for fine crushing, at last, the final materials are discharged.
Sand Making Machine Parameter:
Model |
Feed in size(mm) |
Max feed in size (mm) |
Feed out size (mm) |
Adjustable wide of the material outlet(mm) |
Yield(t/h) |
Power(kw) |
||
Cement clinker |
Limestone |
Glass sand |
||||||
800×400 |
400×230 |
120 |
≤5 |
5-20 |
20-30 |
30-45 |
35-45 |
22-37 |
800×600 |
600×230 |
180 |
≤5 |
5-20 |
35-40 |
40-55 |
45-55 |
37-45 |
800×800 |
800×230 |
180 |
≤5 |
5-20 |
35-45 |
60-65 |
55-65 |
45-55 |
1010×1010 |
1000×330 |
180 |
≤5 |
5-20 |
45-55 |
60-75 |
65-75 |
55-75 |
1200×1000 |
1200×330 |
180 |
≤5 |
5-20 |
80-110 |
80-100 |
80-100 |
90-110 |
1200×1200 |
1200×420 |
180 |
≤5 |
5-20 |
100-110 |
90-100 |
90-120 |
110-132 |
1400×1400 |
1400×420 |
190 |
≤5 |
5-20 |
100-150 |
100-150 |
120-150 |
160 |
1600×1600 |
1600×520 |
190 |
≤5 |
5-20 |
170-210 |
190-250 |
190-250 |
250 |
1800×1800 |
1800×520 |
190 |
≤5 |
5-20 |
250-270 |
280-310 |
280-310 |
315 |
