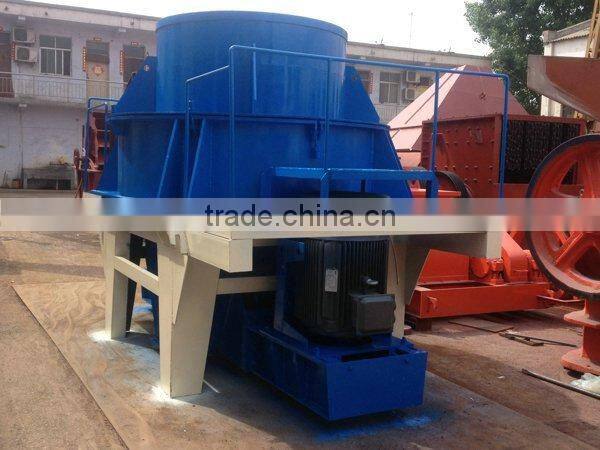

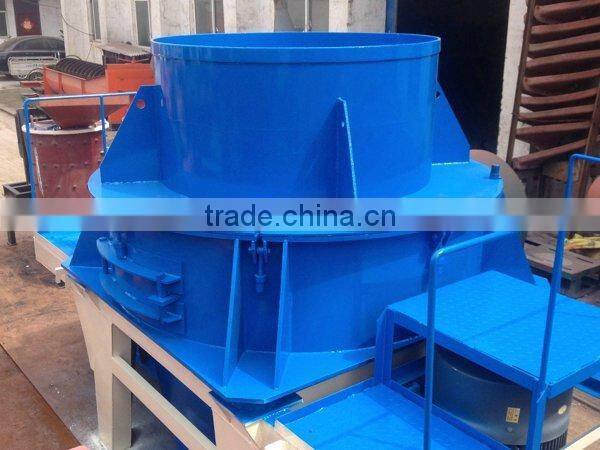

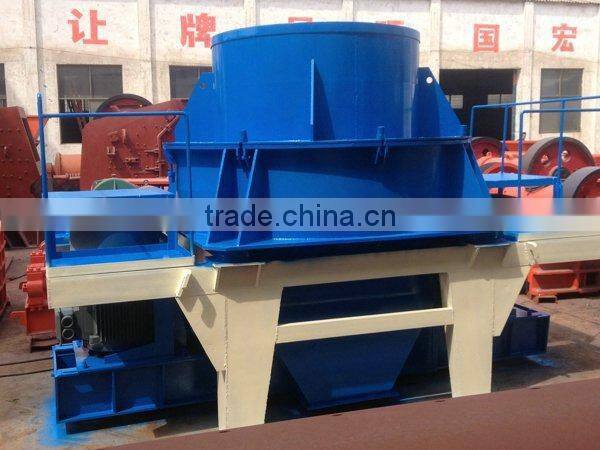

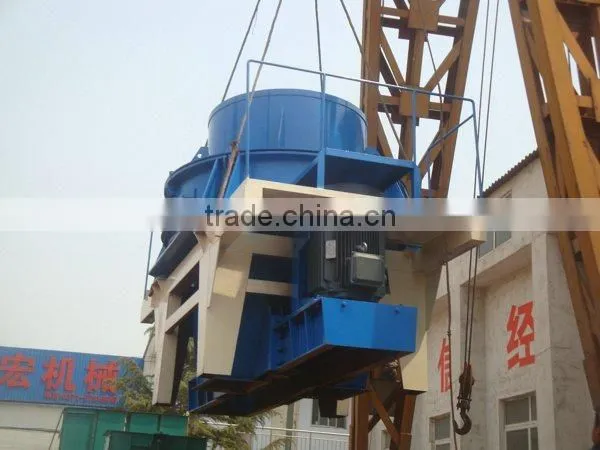

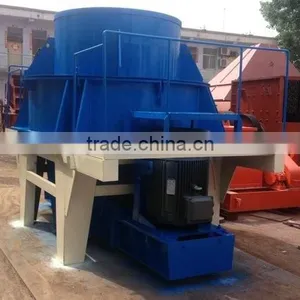

Help CenterVertical Shaft Impact Crusher/sand Making Machine for Hot Sale
Related Products
-
Huahong Manufacturing Good Quality Vertical Shaft Impact CrusherUS$ 1 - 999MOQ: 1 Set -
Low Price of Vertical Shaft Impact Crusher/sand Making MachineUS$ 1 - 999MOQ: 1 Set
-
High Performance Vertical Shaft Impact Crusher/sand Making MachineUS$ 1 - 999MOQ: 1 Set
-
High Performance Vertical Shaft Impact CrusherUS$ 1 - 999MOQ: 1 Set
-
New Design Vertical Shaft Sand Making Machine,sand Maker MachineUS$ 600 - 89,000MOQ: 1 Set
Specifications
1.New oil filtering system;
2.high capacity;
3.ISO9001:2000
Features
1.Advanced thin oil circulating lubrication system through scientific design. Thin oil lubrication core revolving part makes lubrication more sufficient.
2. Advanced operating principle and high-quality productive result. Due to the mutual collision and impacting between rock on rock rather than touching the lining plate in the machine, the wearing and maintence work will be reduced.
3. Auto-overflowing through scientific design, which make sure the motor can be operated under a stable load during the operation, also the pasing rate of the equipment is increased!
Application
Vertical shaft impact crusher, a type of crusher integrated with advanced operating principle and scientific design, physically realizes the functions of long service life, safety and reliability, high crushing ratio and sand forming ratio as well as high production capacity. It is mainly used for material crushing and building aggregate shaping with fine particle shape, moderatemodulus of fineness and low unit consumption.
Working Priciple
Vertical shaft impact crusher, under the action of centrifugal force, thrusts materials into the crushing cavity with thrusting speed of 40 to 100m/s. By taking advantage of fierce collision between the suspending materials and material liner, the materials move upward along the accumulating slope to the top and move downward afterwards before again colliding with the materials ejected from impeller, at last, the material without energy will be discharged from crushing cavity. The major function of the equipment is for impacting, grinding and crushing.
Technical parameters
|
Items Model |
Max Feeder Opening (mm) |
Motor Power (KW) |
Impeller Speed (r/min) |
Quantities (t/h) |
Overall Dimensions (mm) |
Weight (T) |
| PCL-600 | 30 | 20-35 | 2000-2470 | 20-35 | 2500×1600×2260 | 5.6 |
| PCL-750 | 35 | 74-110 | 1500-2045 | 35-55 | 2780×1800×2700 | 7.3 |
| PCL-900 | 40 | 110-180 | 1200-1685 | 55-100 | 3900×2160×2770 | 12.1 |
| PCL-1050 | 45 | 180-264 | 1000-1430 | 90-160 | 4660×2450×3660 | 16.9 |
| PCL-1250 | 45 | 264-370 | 850-1300 | 160-230 | 5600×2950×4000 | 22 |
| PCL-1350 | 50 | 320-440 | 800-1185 | 200-260 | 5340×2940×3650 | 26 |
