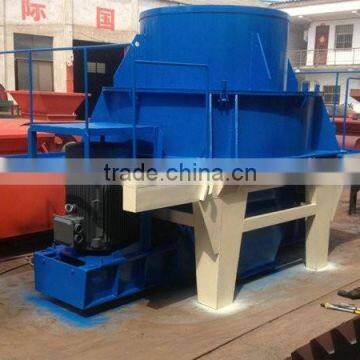

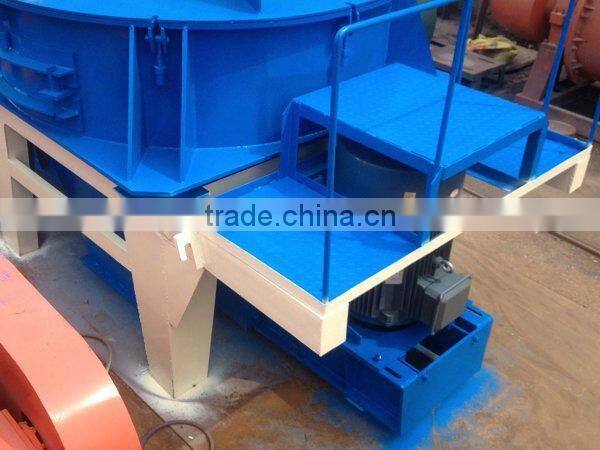

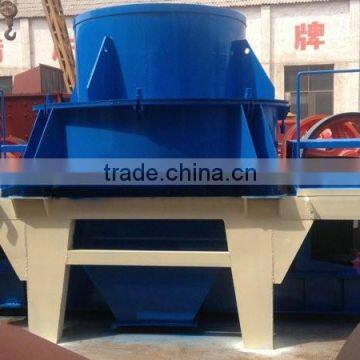

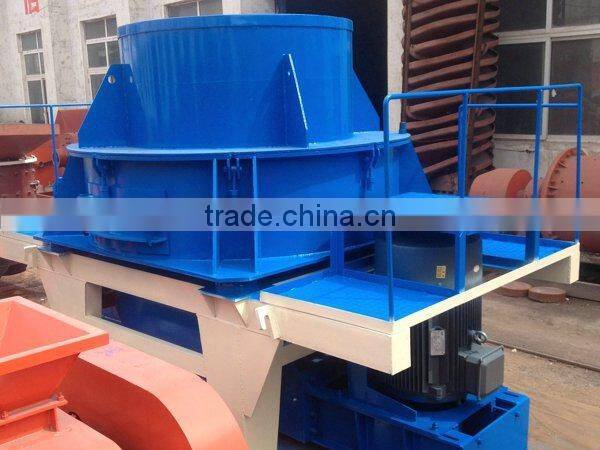

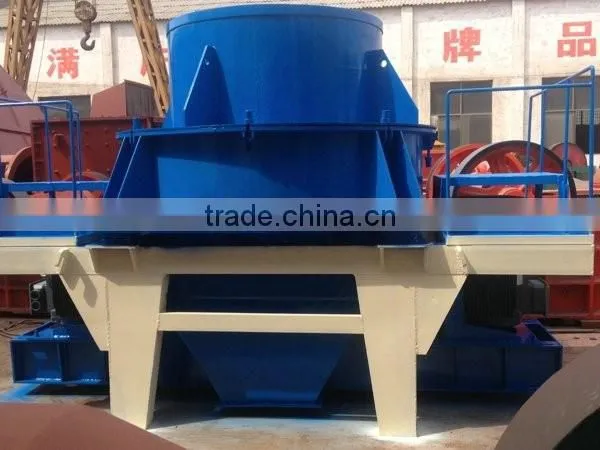

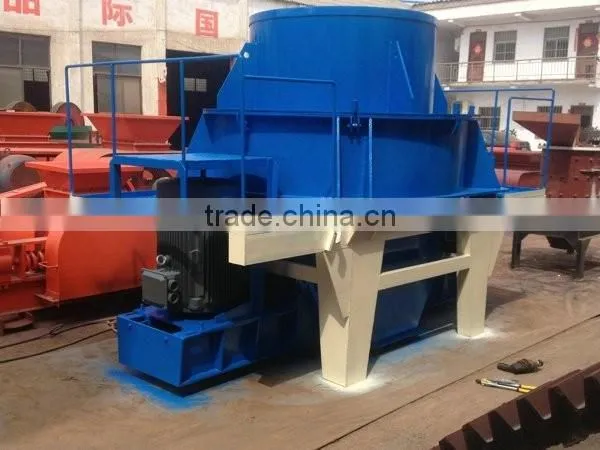

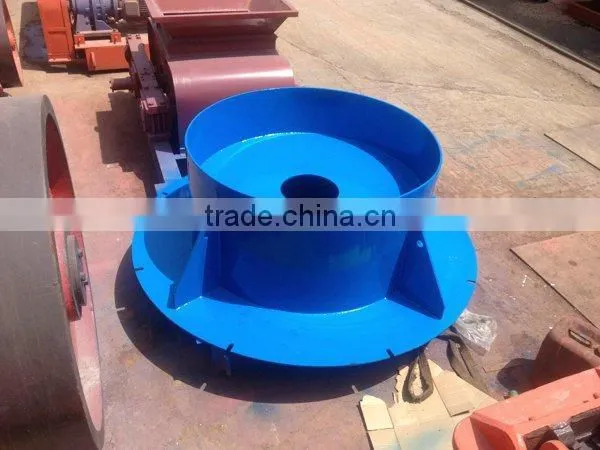

Description of vertical shaft impact crusher
Shaft impact crusher combines the latest design results with the advanced selective fragmenting principle, directly providing enough energy to the raw materials, then the material can be crushed by the energy. Shaft impact crusher makes the finished product rupture along the cleavage plane so that the powder has the natural texture face.The finished product has good grain shape and low consumption, which is more suitable for the requirement about the machine-made sand in construction site, high grade highway and railway site, hydropower project.
Vertical shaft impact crusher application
The vertical shaft impact crusheralso called sand making machine ,sand maker.It is widely used for medium and fine crushing (sand making) for various hard and brittle materials such as rocks, grinding materials, refractory materials, cement clinker, quartz, iron ore and concrete aggregate, etc. It is especially appropriate for sandstone for architecture and road construction.
Vertical shaft impact crusher features
1. Lightly affected by the moisture content of the material, Maximal water content up to about 8%
2. Simple structure, the striker breaker, lowest running cost
3. Unique installation of axis and advanced design of main shaft
4. Operate stability, high efficiency & saving energy, large crushing ratio
5. the internal air circulation of vortex chamber to little dust pollution
6. High reliability, tight security device to ensure equipment and personal safety
7. Diversity installed way, can be equipped on mobile crusher
8. with fine-crushing and coarse-grinding function
9. Low consumption of wearing parts. Most of wearing parts adopts domestic and foreign high-quality wear-resistant material, with long service life; few of wearing parts used special hard wear-resistant material, with small volume, light weight, easy to replaces.
10. Product in cubic shape, density packing, light iron pollution
Working Principle of vertical shaft impact crusher

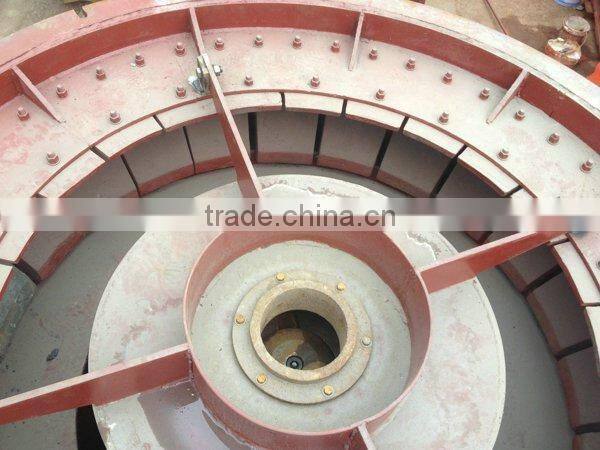

The materials fall into the crusher and be divided into two parts. One part goes into the high-speed-running impeller of the machine, and the other part goes around the impeller. The two parts materials fast bump and crush during the effect of centrifugal force. Then the materials run like swirl, bump and rub to each other again and again. The finished products go out from the bottom of the machine, and users can get the requested products size after screening by vibrating screen.
| Model |
Impeller speed (r/min) |
Max feed size (mm) |
capacity (t/h) |
Power (kw) |
weight (t) |
Overall dimensions (mm) |
| 600 | 2000-3000 | 30 | 12-30 | 2X30 | 5.6 | 2800XΦ1500X2030 |
| 750 | 1500-2500 | 35 | 25-55 | 2X45 | 7.3 | 3300XΦ1800X2440 |
| 900A | 1200-2000 | 40 | 55-100 | 2X55 | 12.1 | 3750XΦ2120X2660 |
| 900B | 1000-1450 | 40 | 65-130 | 2X75 | 13.6 | 3750XΦ2300X2090 |
| 1050 | 1000-1700 | 45 | 100-160 | 2X(90-110) | 16.9 | 4480XΦ2450X2906 |
| 1250 | 850-1450 | 45 | 160-300 | 2X(132-180) | 22 | 4563XΦ2650X3716 |
| 1350 | 800-1193 | 50 | 200-360 | 2X(180-220) | 26 | 5340XΦ2940X3650 |
