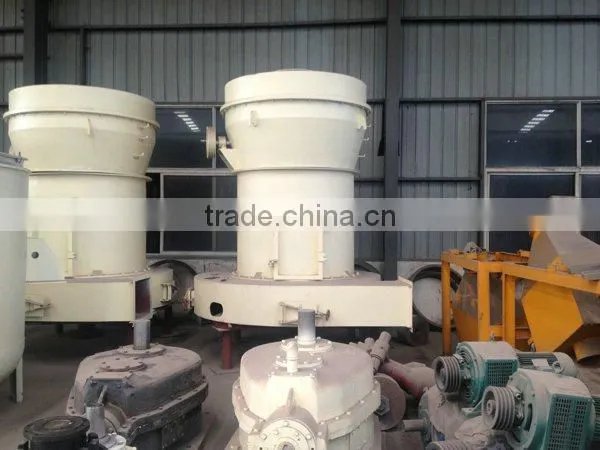

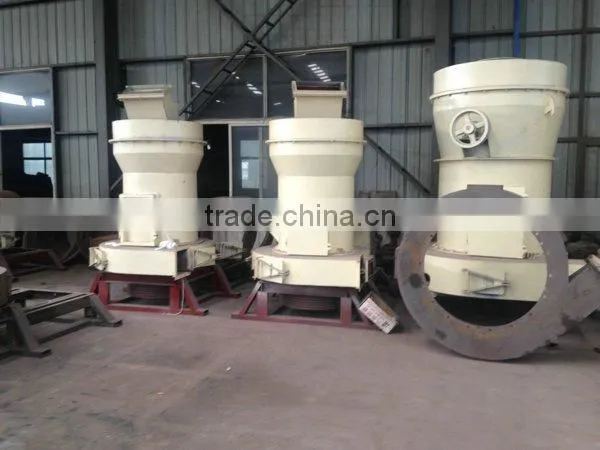

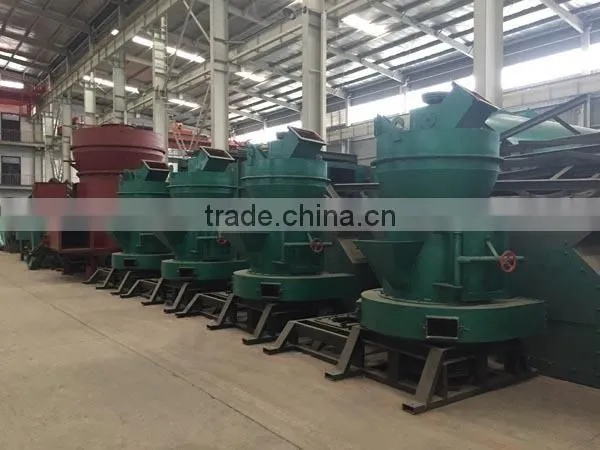

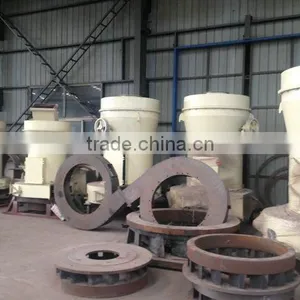

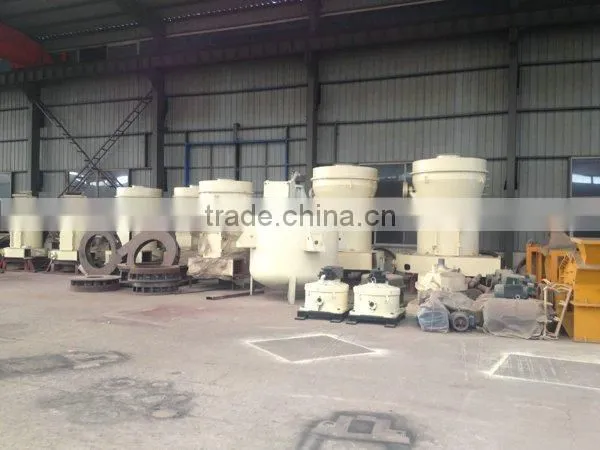

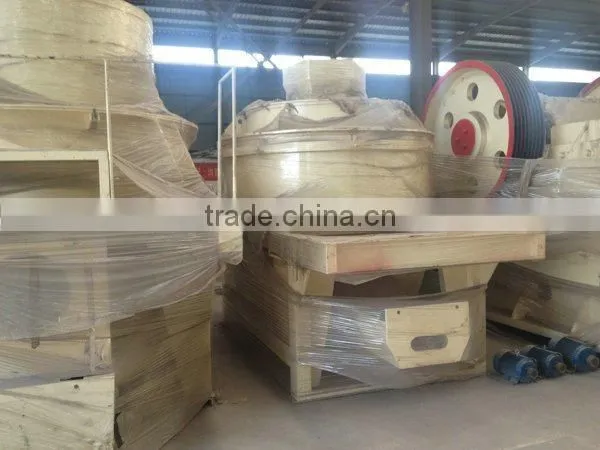

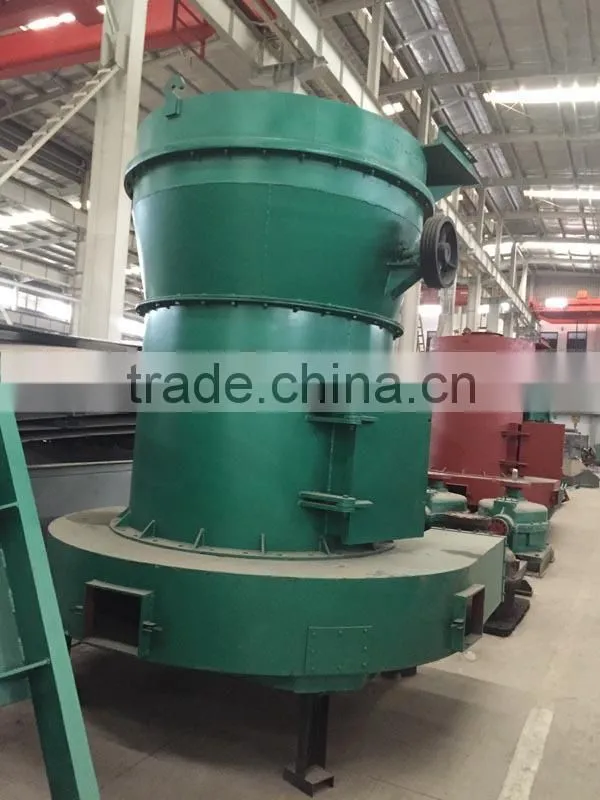

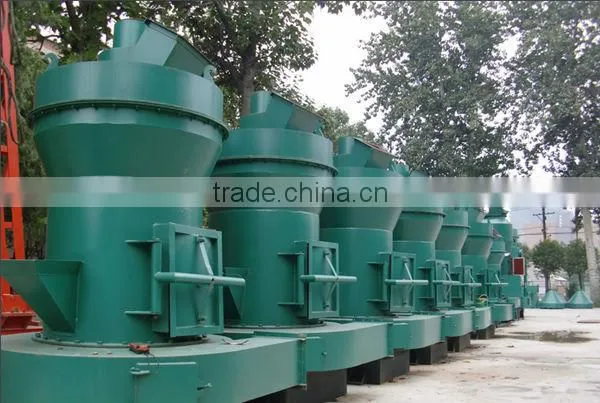

China most popular talcum powder grinding mill/raymond grinding mill
Introduction of raymond mill
The calcite raymond mill consists of main frame,duct fan,analyzer,cyclone power collection device,bag duct collector and pipe connection.we will provide the elevator,bunker,electrical cabinet,feeder,crusherand so on. to meet clientsrequirements.

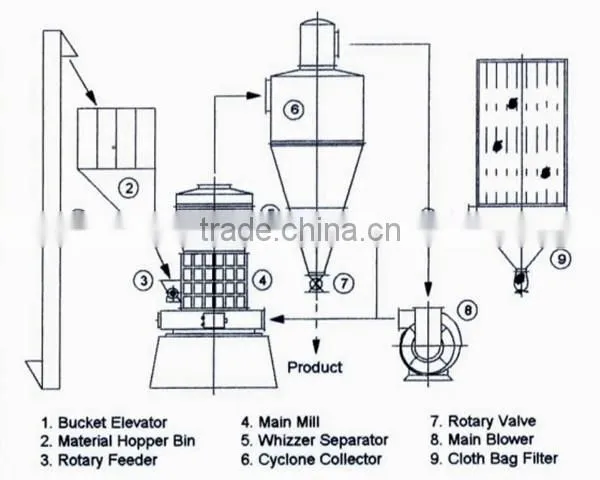

Working principles of calcite raymond mill
1.First, the materials are crushed by the jaw crusher.
2.Then the crushed materials are transferred to a hopper by the elevator ,fed uniformly.quantltatively and continously by the vibration feeder to the grinding chamber of the main frame for grinding
3.The grinded particles are brought up by the air current of the blower into the classifier for classification
4.The particles with the required fineness are brought up by the air current through the pipe into a collector for separation and collection.
5.The finished particles are discharged from a pipe outlet.
6.Because of some moisture contained in the materials to be grinded,the heat resulting from grinding leads to the vaporized air which changes the airflow volume,Moreover,the outside air inhaled from the narrow gaps of the piping connections can increase the volume of air current. it is necessary to adjust redundant air pipe between the blower and the main unit for keeping the balance of the air current.)Then the redundant air is quided into a cloth bag of a dust cleaner to collect the fine power in the air.
7.Finally, the redundant air is discharged after purfication.
Main parameters of calcite raymond mill
Model |
Grinding Roller |
Grinding Ring |
Feeding |
Output size (mm) |
Capacity |
Motor |
Overall |
|||
Nos |
Diameter |
Height |
Outside |
Height |
||||||
3R1410 |
3 |
140 |
100 |
495 |
100 |
<8 |
0.613-0.044 |
0.15-1.2 |
14.1 |
3340×2200×3200 |
3R2115 |
3 |
210 |
150 |
726 |
150 |
<15 |
0.613-0.044 |
0.28-1.8 |
28.2 |
4480×3100×3970 |
3R2615 |
3 |
260 |
150 |
865 |
150 |
<15 |
0.613-0.044 |
0.35-2.8 |
35.7 |
5000×4100×4850 |
3R2715 |
3 |
270 |
150 |
884 |
150 |
<15 |
0.613-0.044 |
0.40-3.4 |
42.7 |
5050×4150×4900 |
3R3015 |
3 |
300 |
150 |
965 |
150 |
<15 |
0.613-0.044 |
0.45-3.7 |
55 |
5200×4200×4950 |
4R3016 |
4 |
300 |
160 |
990 |
160 |
<20 |
0.613-0.044 |
0.6-4.5 |
55 |
5250×5000×5500 |
4R3216 |
4 |
320 |
160 |
1073 |
160 |
<25 |
0.613-0.044 |
1.0-5.2 |
72.5 |
7700×7200×8800 |
5R4119 |
5 |
410 |
190 |
1400 |
190 |
<30 |
0.613-0.044 |
2.0-9.0 |
157.5 |
7900×8800×9650 |
Note: This specification is just for reference.

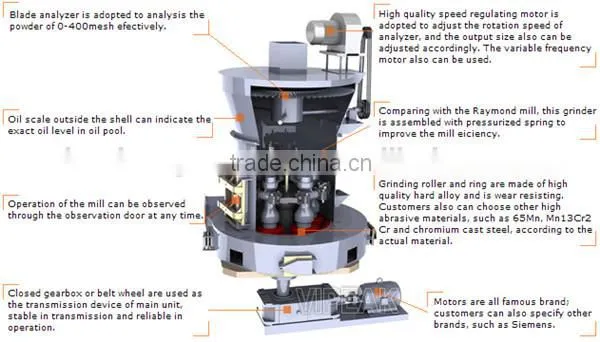

Frame figure of calcite raymond mill

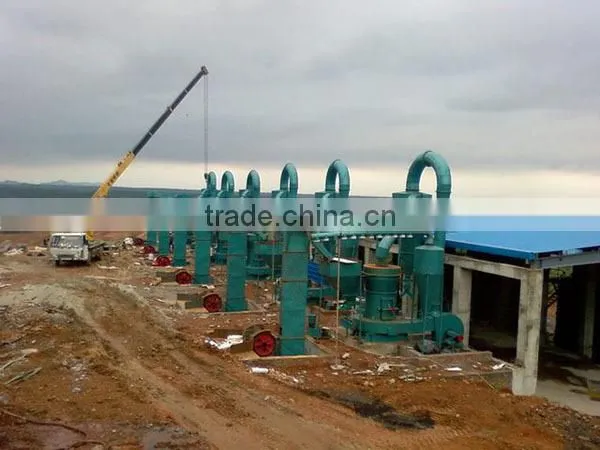

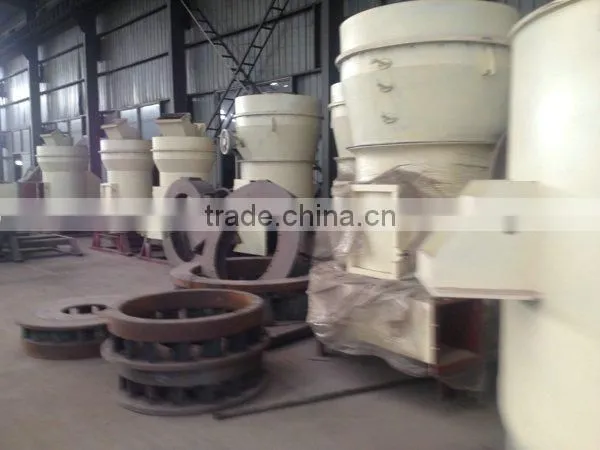

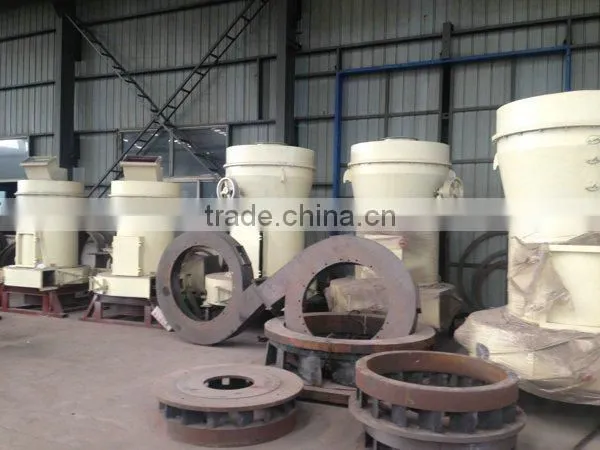

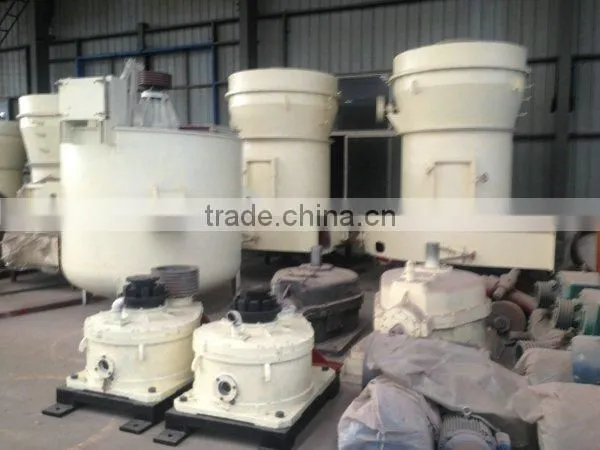

Working site of calcite raymond mill
Why Choose Us?
*Over several years production and export experience
*Perfect handwork on crushing machines, grinding machines, screening machines and ore dressing machines.
*Strict quality control on each production process.
*Satisfactory pr-sale service & after- sale service.
Welcome to contact me and visit our factory!
skype: huahongmachine11
