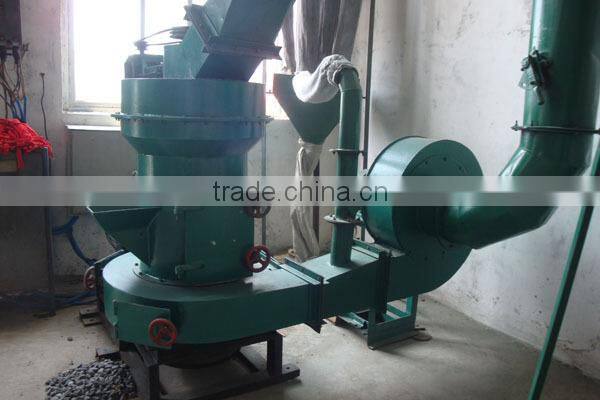

5R4119 limestone raymond mill for sale

Specifications

stone raymond mill:
1.Land-saving,steady and reliable.
2.Easy operate.
3.Lower noise.

limestone raymond mill for sale

Brief Introduction of limestone Raymond Mill:

Raymond mill is suitable for making ore powder and coal powder, such as the powder processing of raw ore, gypsum ore and coal.

Raymond mill is widely used for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation material in mine, metallurgy, chemistry and building industry. The granularity of the final products of the R type Raymond mill can be adjusted in the ranges of 80—325 meshes and part materials can reach 600 meshes.

Working Principle of limestone Raymond Mill:

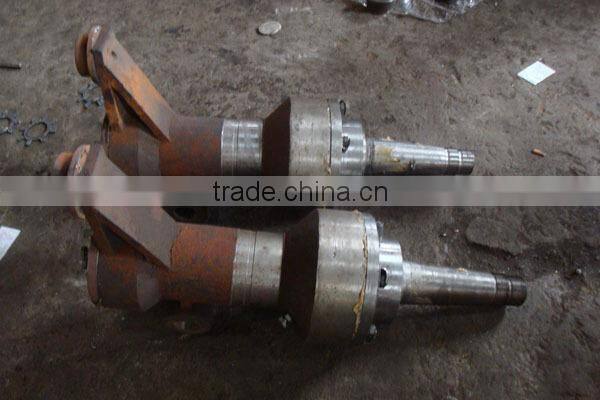

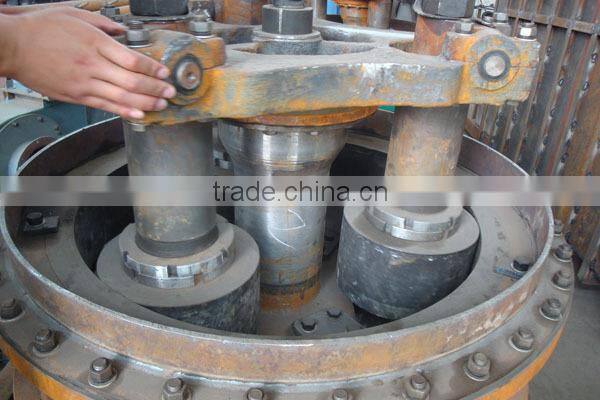

When Raymond mill works, the materials that need to be crushed are fed into the machine through the feeding hopper. The grinding roll that hangs on the main engine will rotate around the vertical axis and rotates around itself. Due to the centrifugal force produced in the rotating process, the grinding roll will swings outward and tightly press onto the grinding ring to make the relieving tool scoop up the materials and send them to the space between the grinding roll and the grinding ring, and the materials will be crushed due to the rolling and grinding of the grinding roll.

Technical parameter of limestone Raymond Mill:

Type	NO	Mater in grade    (mm)	Fineness of product     (mesh)	Capacity   (t/h)	Main power   (kw)	Blower (kw)	Separator (kw)	Dimension (mm)
3R1510	3	10	80-325	0.3-1.2	7.5	5.5	1.1	3200*2100*4500
3R2115	3	20	80-325	0.4-1.6	15	11	2.2	4100*3300*4500
3R2615	3	20	80-325	0.5-2.7	18.5	15	2.2	4300*3500*4500
3R2715	3	20	80-325	0.7-3	22	18.5	2.2	5300*4100*5200
4R3016	4	20	80-325	0.8-5	30	30	2.2	5300*4100*5200
4R3015	4	25	80-325	1.0-4	30	22	2.2	5500*4300*5400
4R3216	4	25	80-325	1.0-8	45	30	5.5	7100*5900*7900
4R3220	4	28	80-400	1-10	45	37	5.5	8000*6000*9500
5R4119	5	30	80-400	5-10	75	75	7.5	9200*7250*9700
6R4427	6	35	80-400	9-15	132	132	11	12550*5700*8355

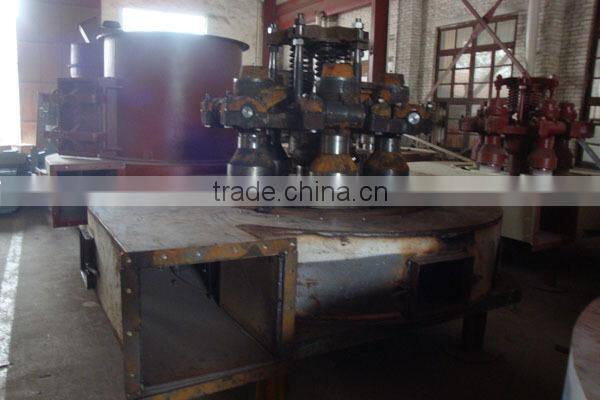

Star Rack of Raymond Mill:
