high production reputable raymond mill

Specifications

Raymond Milll ,grinding mill,pulverizer
1.Over 30 years' experience
2.Particle size form 80~600 mesh
3.2~30mt/hr
4.ISOCE

Advantage of High-pressure Raymond Mill:

Raymond grinding mill improved the plum flower shelf, bearing room, center, in areas based on the original grinding mill, has a powerful strength crushes impact for hardness materials by reasonable design and adding a powerful high-pressure spring device, thus can grind materials fully and increase output.

Detailed Description of Raymond Mill:

This Raymond Mill is used to grind materials in the fields of metallurgy, building materials, chemical and mining industry. It used to grind the materials which are non-inflammable and non-explosive with the hardness below Mohs 7-8 and moisture level less than 6%,such as ,feldspar, clay, betonies, calcite, talc, barites, fluorite, clay, marble and limestone, dolomite, lime, activated carbon, kaolin, phosphate rock, glass, manganese, refractory materials, insulation materials, causticization, mullet and minifanshi stone, blood attapulgite,Coal mine, iron ore, copper ore, silicon ore, ferric oxide magnesium, Barium salt etc.

Main Structure of High-pressure Raymond Mill:

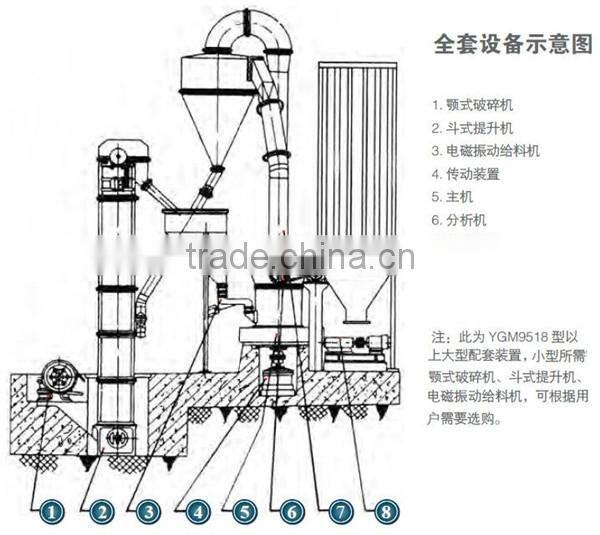

Raymond Mill consists mainly of mainframe, analyzer, blower, finished product cyclone separator, micro mist cyclone separator and air duct. The mainframe is composed by frame, spiral into wind, shovel knife, grinding roll, grinding ring, cover shells and motor.

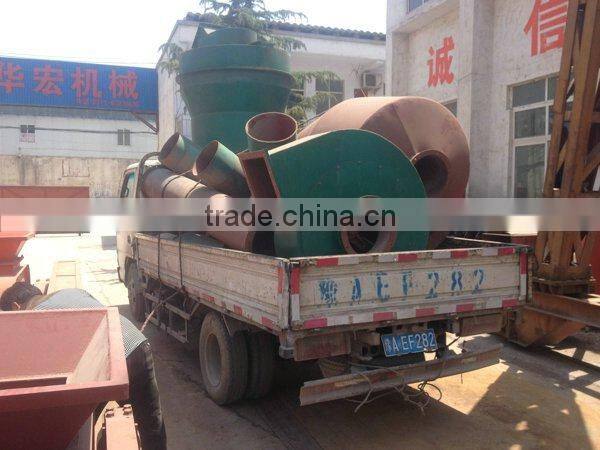

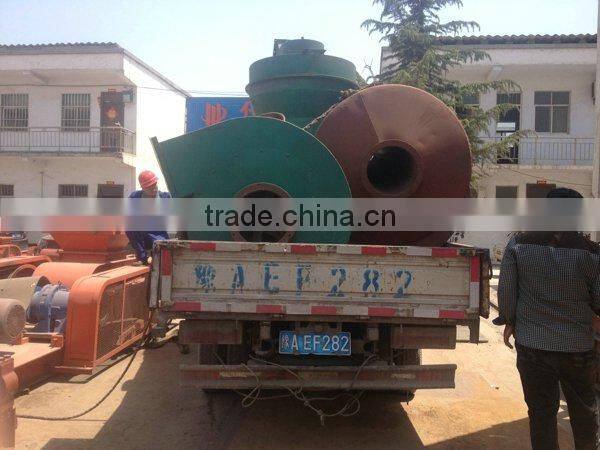

Raymond mill shipment:

Model	Grinding Roller			Grinding Ring		FeedingSize(mm)	Output size (mm)	Capacity (t/h)	Motor Power(kw)	OverallDimension(mm)
	Nos(pcs)	Diameter(mm)	Height(mm)	OutsideDia(mm)	Height(mm)
5R4119	5	410	190	1400	190	<30	0.613-0.044	2.0-9.0	157.5	7900×8800×9650

More informantion please contact me !Welcome to visit our company!
