China ore grinder machine/powder grinding machine raymond mill for sale

Specifications

Grinding raymond mill for sale
Stable and reliable operation
low cost consumption
long service life
energy-saving

China ore grinder machine/powder grinding machine raymond mill for sale



Introduction of raymond mill

Raymond mill consists of main frame,duct fan,analyzer,cyclone power collection device,bag duct collector and pipe connection.we will provide the elevator,bunker,electrical cabinet,feeder,crusherand so on. to meet clientsrequirements.

This machine is widely used in metallurgy, building materials, chemical industry, mine and so on fields for crushing mineral materials, it is suitable for processing all kinds of inflammable and non-explosive minerals with Mohs hardness below 7, humidity below 6%, such as gypsum, talc, calcite, limestone, marble, potassium feldspar, barites, dolomite, granite, kaolin, peng bentonite, stone, bauxite, most, iron ore, etc. The product size is 613μm~440μm (0.613mm~0.044mm), through the common effect of analysis machine and fan, it can meet the using requirements of different users. This machine is a kind of high-performance closed circuit milling equipment, and has the advantages of high efficiency, low electric consumption, covering small area, small capital investment and no environmental pollution.



Operating principle  of raymond mill

Raymond mill firstly grind the big block raw materials to needed feeding size, then materials will be transported to storage silo through the Ben elevator. Then by electromagnetic vibration feeder evenly to the host grinding chamber, the material in mill chamber will be grinded between rollers and rings, grinded powder will be brought to the analytical engine by the fan engine air. After have achieved the required powder fineness, the powder will enter into large cyclone collector through pipeline, separation and collection, the finished products will discharge from the unloaded. When the host is in the working process, shovel knife system has played a very important role. It located at the bottom rollers.





Structure feature of raymond mill

1. The whole machine has vertical structure, cover a small area, strong systematicness, from raw materials rough matching to delivery to milling and final packaging; it can be an independent production system.

2. Compared with other grinding equipment, screening rate can reach 99%.

3. Raymond mill host transmission device adopts sealed gear box and belt pulley, smooth transmission, reliable operation.

4. Important parts of Raymond milling machine adopt high quality castings and molding manufacture, fine technology, rigorous process,



Main parameters of raymond mill



Model	Grinding Roller			Grinding Ring		Feeding Size (mm)	Output size (mm)	Capacity  (t/h)	Motor  Power (kw)	Overall Dimension (mm)
	Nos (pcs)	Diameter (mm)	Height (mm)	Outside Dia (mm)	Height (mm)
3R1410	3	140	100	495	100	<8	0.613-0.044	0.15-1.2	14.1	3340×2200×3200
3R2115	3	210	150	726	150	<15	0.613-0.044	0.28-1.8	18.2	4480×3100×3970
3R2615	3	260	150	865	150	<15	0.613-0.044	0.35-2.8	35.7	5000×4100×4850
3R2715	3	270	150	884	150	<15	0.613-0.044	0.40-4	45	5050×4150×4900
3R3015	3	300	150	965	150	<15	0.613-0.044	0.45-4.3	55	5200×4200×4950
4R3016	4	300	160	990	160	<20	0.613-0.044	0.6-4.5	55	5250×5000×5500
4R3216	4	320	160	1073	160	<25	0.613-0.044	1.0-5.2	72.5	7700×7200×8800
5R4119	5	410	190	1400	190	<30	0.613-0.044	2.0-9.0	157.5	7900×8800×9650



Note: This specification is just for reference.

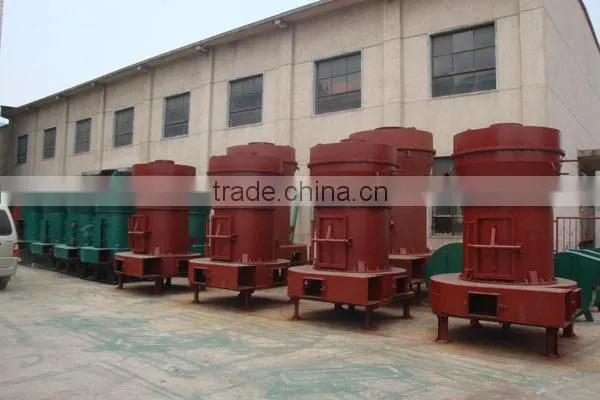

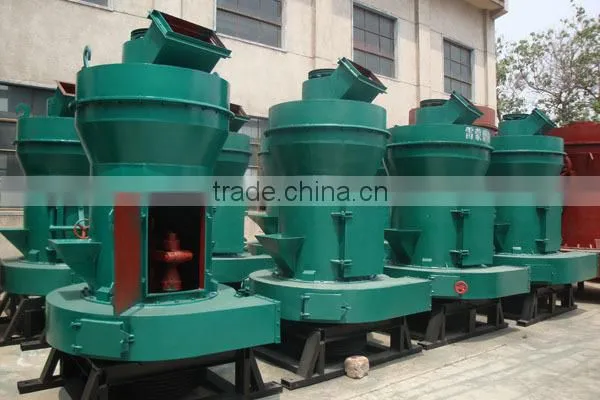

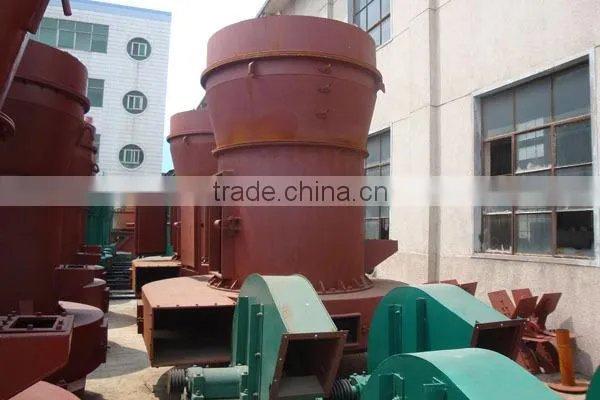

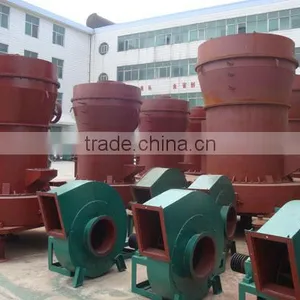

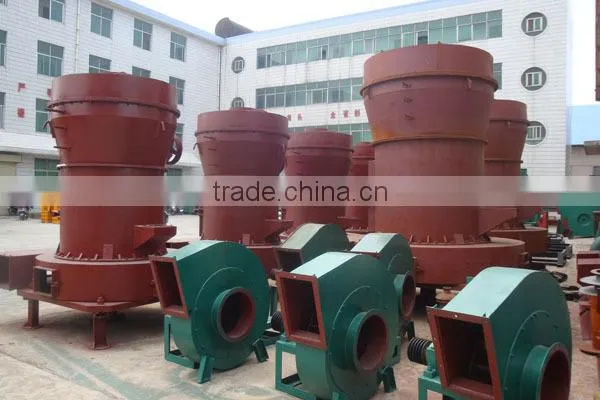

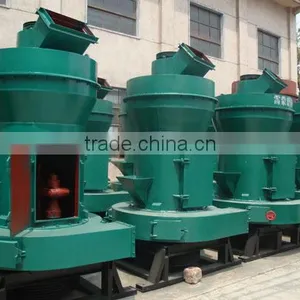

 Appearance of raymond mill

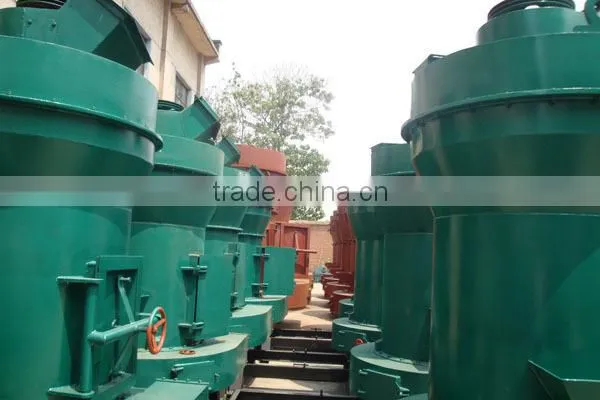

Raymond mill line

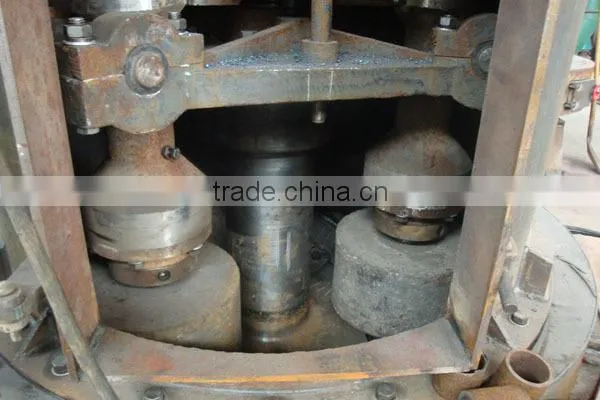

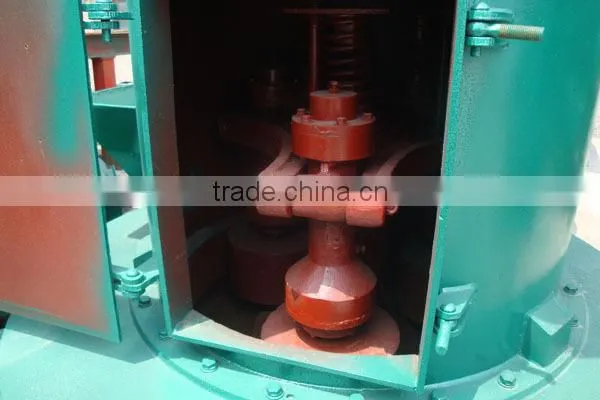

Frame figure of raymond grinding mill

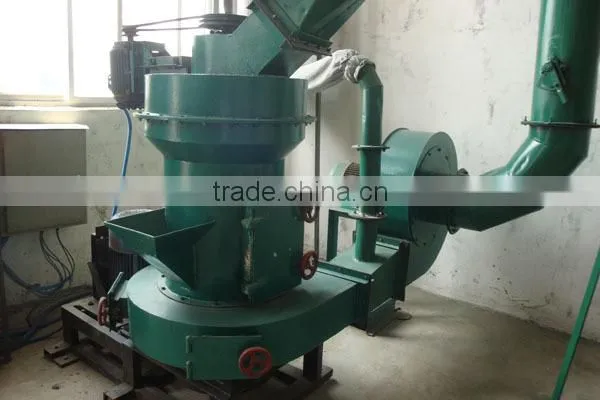

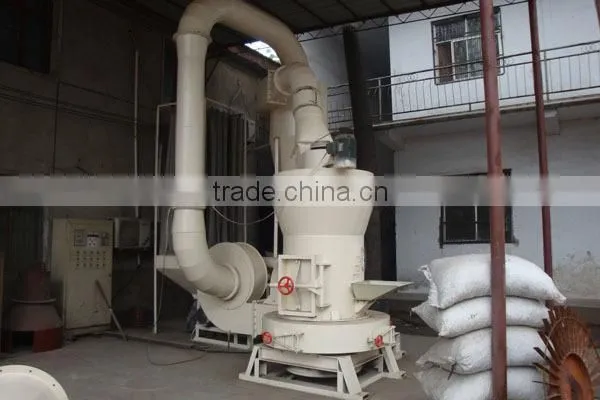

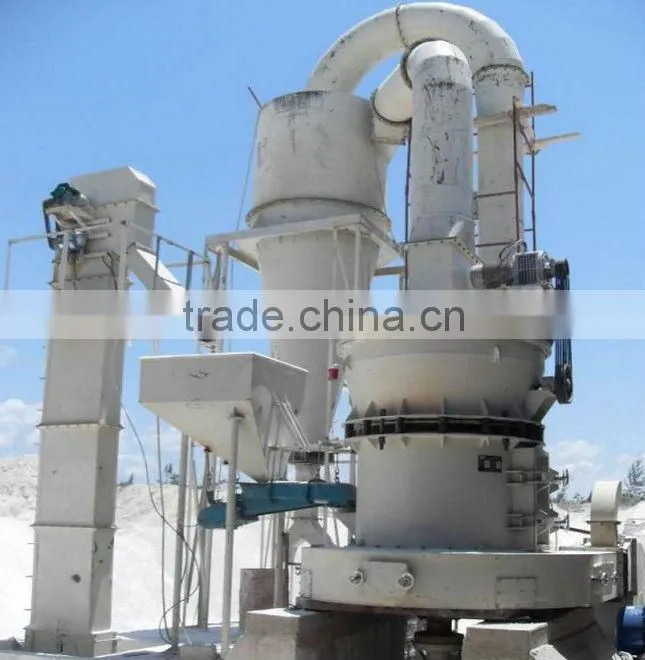

Working site of raymond grinding mill



Our services

1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big items.

About our company

1.Zhengzhou Huahong Machinery Equipment Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.



2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.



3.We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.



4.Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.



We will provide you our best equipments at the reasonable price to meet your requirements.
