Specifications
1.Three-dimensional structure2.Reliable performance
3.High capacity
4. Land-saving
China most popular copper ore raymond mill
raymond bentonite miller grinding mill
Micro powder grinding machine produced by our company is mainly used to grind non-inflammable and non-explosive materials with Moh’s hardness below 7 and moisture content below 6% such as barite, calcite, potash feldspar, talcum, marble, limestone, ceramic, glass, etc Raymond grinder can be used in mining, chemical industry, construction materials, metallurgy and so on. The final products can be adjusted freely from 100 mesh to 425 mesh.
Top good quality talcum mill plant
Working Principle of micro powder grinding machine:
Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding.After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powder pipe as the final products.
Technical parameter:
Model |
Roller Number |
Roller Size |
Maximum Feed Size (mm) |
Fineness of final product(mm) |
Output(t/h) |
Main Frame power (kW) |
Fan power (kw) |
Overall Dimension(mm)
|
5R4119 |
5 |
410×190 |
20-25 |
0.613-0.044 |
5-12 |
75 |
55 |
7850×8000×9700 |
4R3216 |
4 |
320×160 |
20-25 |
0.28-0.047 |
1.0-8.0 |
37 |
30 |
9900×5800×10580 |
4R2715 |
4 |
270×150 |
15-25 |
0.28-0.047 |
0.8-4.0 |
22 |
18.5 |
8700×5000×7819 |
3R2715 |
3 |
270×150 |
15-20 |
0.28-0.047 |
0.7-3 |
22 |
18.5 |
8700×5000×7819 |
3R2615 |
3 |
260×150 |
15-20 |
0.28-0.047 |
0.5-2.7 |
18.5 |
15 |
5650×3305×5950 |
3R2115 |
3 |
210×150 |
15-20 |
0.28-0.047 |
0.4-1.6 |
15 |
11 |
4500×2800×5800 |
3R1410 |
3 |
140×100 |
5-10 |
0.28-0.047 |
0.1-1.0 |
7.5 |
5 |
3200×2100×4500 |

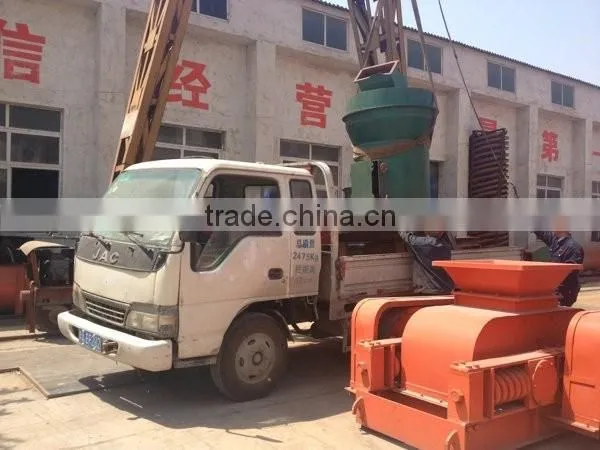

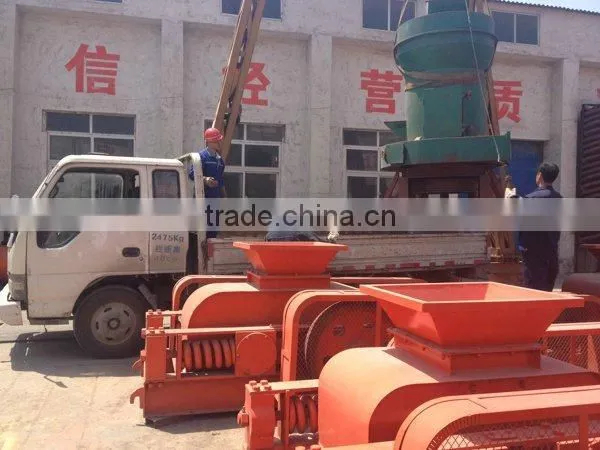

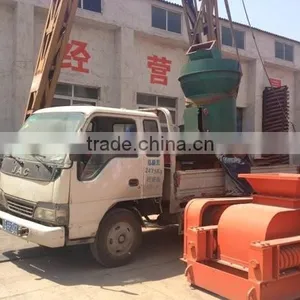

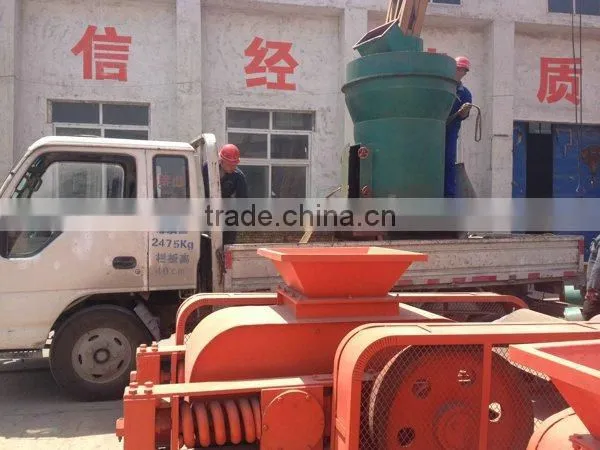

Raymond mill deliver to Iran:
