Zhengzhou hot sale raymond mill machine, powder grinding machine

Specifications

raymond grinding mill for sale
1.High ratio of grinding
2.Even final size
3.Simple structure
4.CE,ISO9001

Zhengzhou hot sale raymond mill machine, powder grinding machine



Introduction of raymond mill

The calcite raymond mill consists of main frame,duct fan,analyzer,cyclone power collection device,bag duct collector and pipe connection.we will provide the elevator,bunker,electrical cabinet,feeder,crusherand so on. to meet clientsrequirements.





Working principles of calcite raymond mill

1.First, the materials are crushed by the jaw crusher.

2.Then the crushed materials are transferred to a hopper by the elevator ,fed uniformly.quantltatively and continously by the vibration feeder to the grinding chamber of the main frame for grinding

3.The grinded particles are brought up by the air current of the blower into the classifier for classification

4.The particles with the required fineness are brought up by the air current through the pipe into a collector for separation and collection.

5.The finished particles are discharged from a pipe outlet.

6.Because of some moisture contained in the materials to be grinded,the heat resulting from grinding leads to the vaporized air which changes the airflow volume,Moreover,the outside air inhaled from the narrow gaps of the piping connections can increase the volume of air current. it is necessary to adjust redundant air pipe between the blower and the main unit for keeping the balance of the air current.)Then the redundant air is quided into a cloth bag of a dust cleaner to collect the fine power in the air.

7.Finally, the redundant air is discharged after purfication.



Main parameters of calcite raymond mill

Model	Grinding Roller			Grinding Ring		Feeding Size (mm)	Output size (mm)	Capacity  (t/h)	Motor  Power (kw)	Overall Dimension (mm)
	Nos (pcs)	Diameter (mm)	Height (mm)	Outside Dia (mm)	Height (mm)
3R1410	3	140	100	495	100	<8	0.613-0.044	0.15-1.2	14.1	3340×2200×3200
3R2115	3	210	150	726	150	<15	0.613-0.044	0.28-1.8	28.2	4480×3100×3970
3R2615	3	260	150	865	150	<15	0.613-0.044	0.35-2.8	35.7	5000×4100×4850
3R2715	3	270	150	884	150	<15	0.613-0.044	0.40-3.4	42.7	5050×4150×4900
3R3015	3	300	150	965	150	<15	0.613-0.044	0.45-3.7	55	5200×4200×4950
4R3016	4	300	160	990	160	<20	0.613-0.044	0.6-4.5	55	5250×5000×5500
4R3216	4	320	160	1073	160	<25	0.613-0.044	1.0-5.2	72.5	7700×7200×8800
5R4119	5	410	190	1400	190	<30	0.613-0.044	2.0-9.0	157.5	7900×8800×9650

  Note: This specification is just for reference.

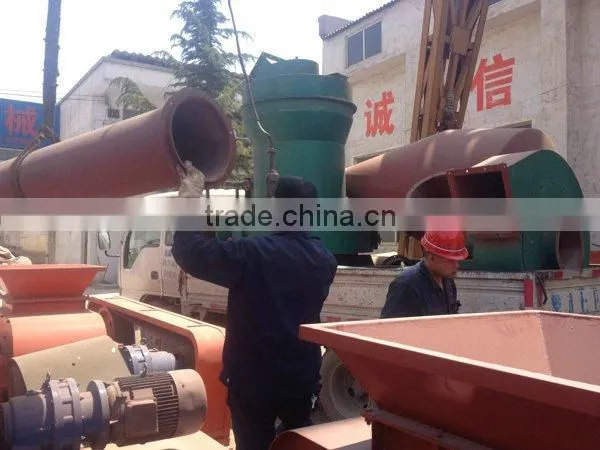

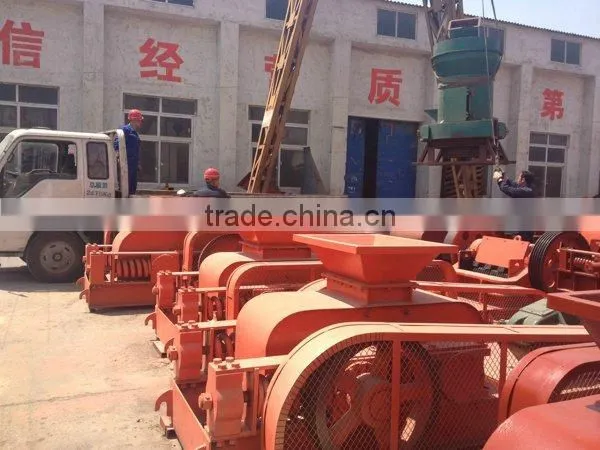

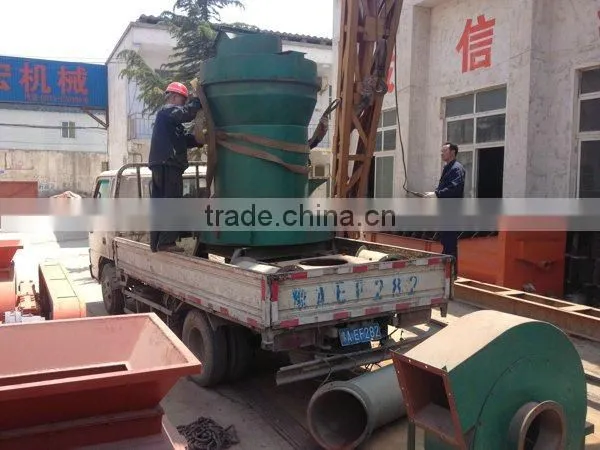

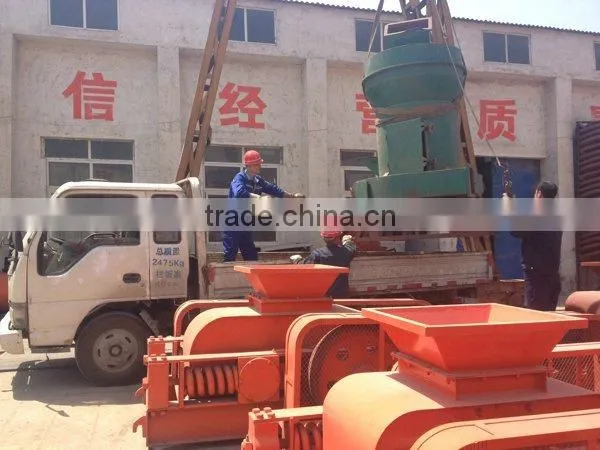

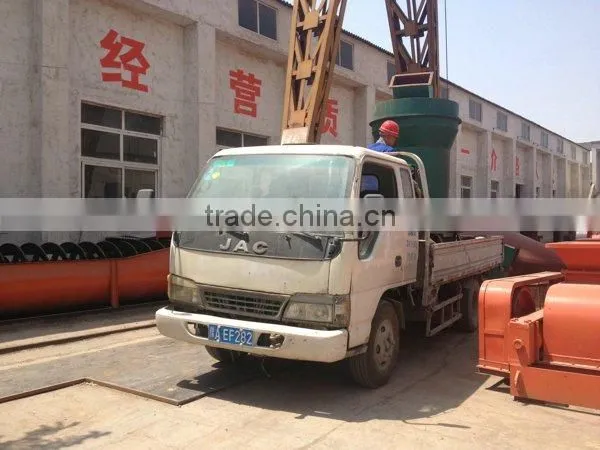

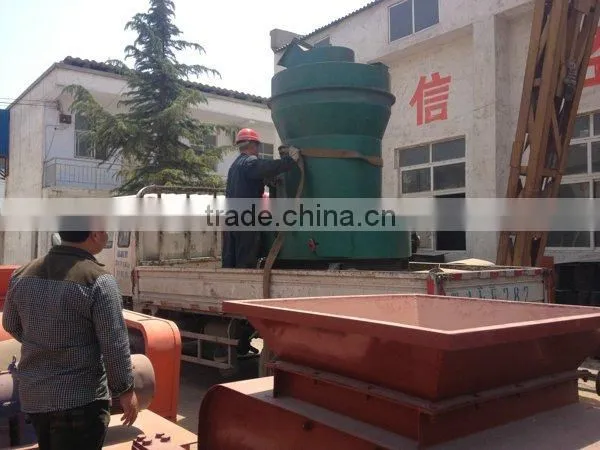

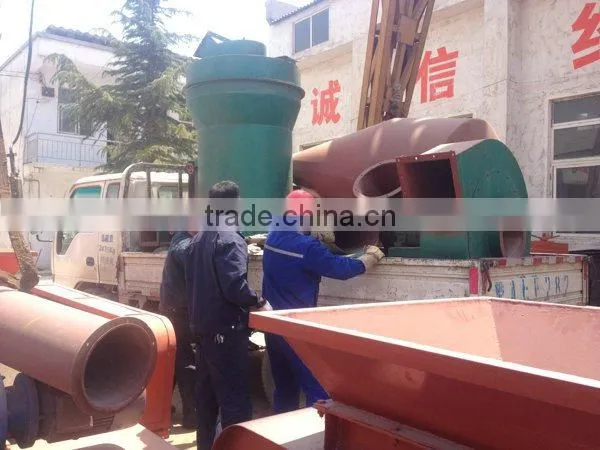

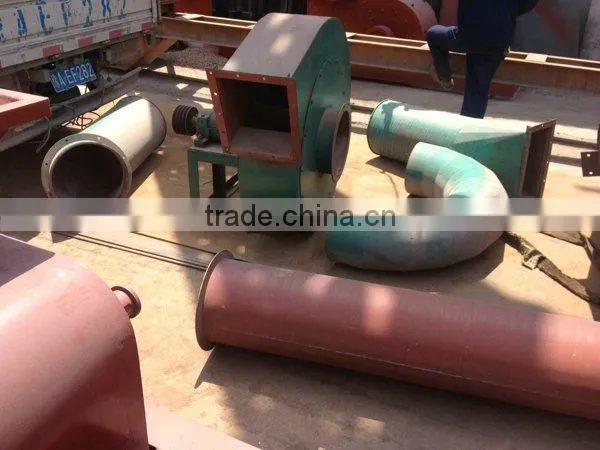

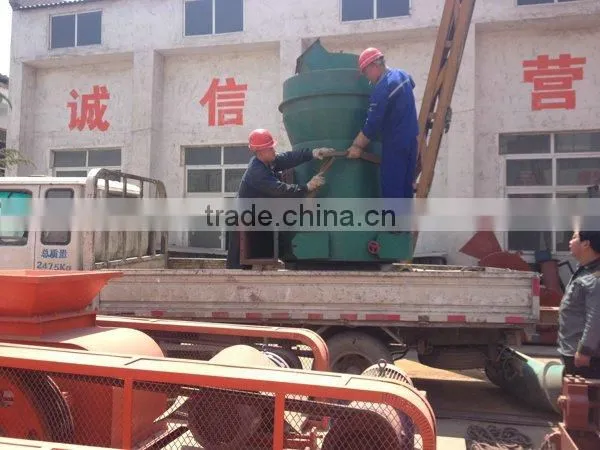

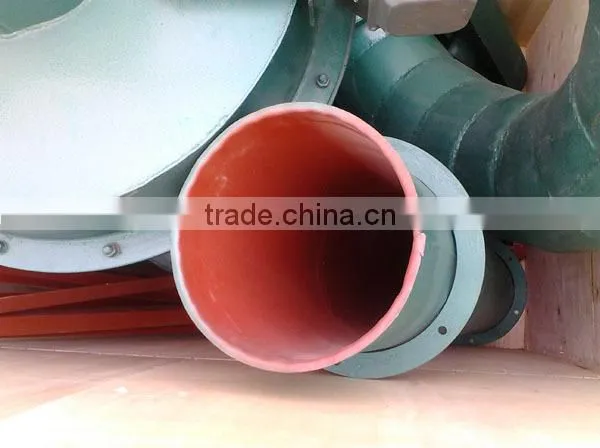

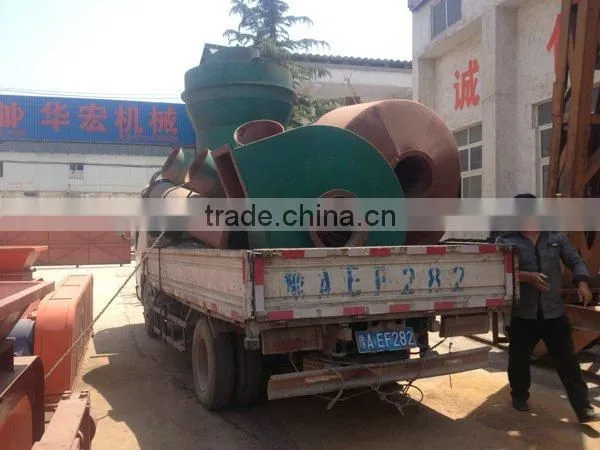

Shipment pictures of calcite raymond mill

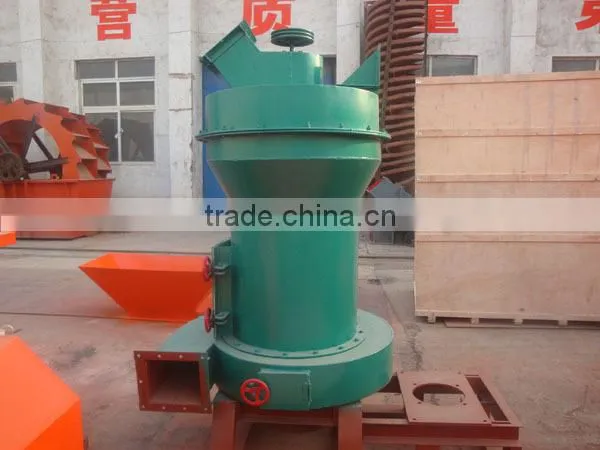

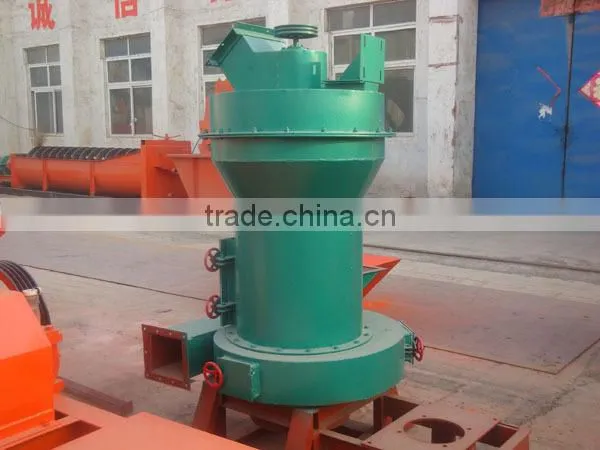

Frame figure of calcite raymond mill

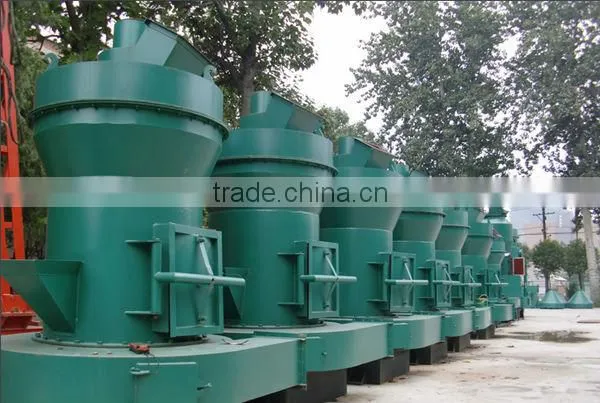

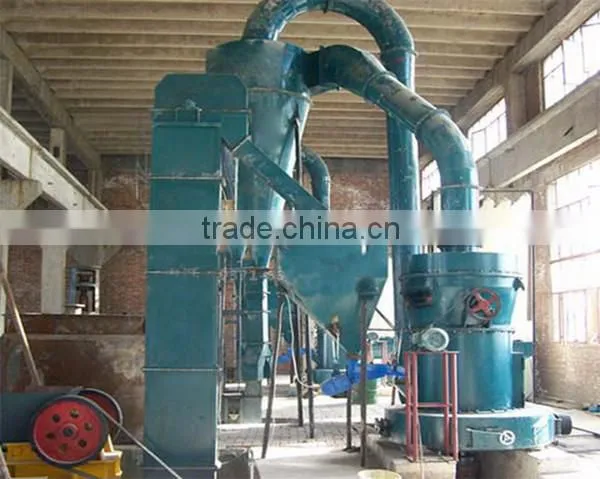

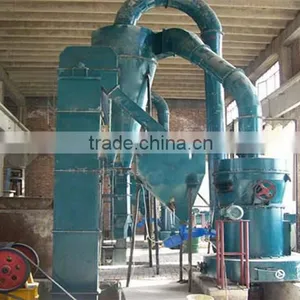

Working site of calcite raymond mill



Why Choose Us?

*Over several years production and export experience

*Perfect handwork on crushing machines, grinding machines, screening machines and ore dressing machines.

*Strict quality control on each production process.

*Satisfactory pr-sale service & after- sale service.





Welcome to contact me and visit our factory!
