Specifications
Raymond Mill:1.High efficient Raymond mill
2.Works reliably
3.Complete grinding production system

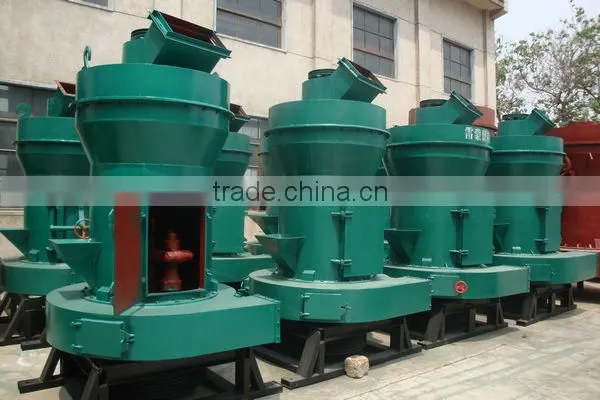

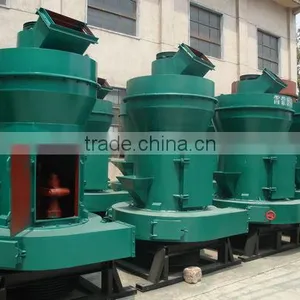

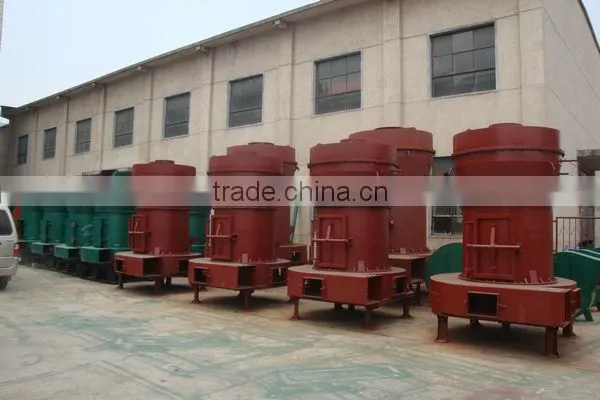

Stone raymond mill,raymond mill price,raymond roller mill
Raymond Mill is suitable for producing minerals powder.final size is adjustable as required in the range of 100 -325 meshes.
Raymond Mill(Raymond Grinder)is suitable for producing minerals powder, which is widely used in the fields of metallurgy, building materials, chemical, and mining industry. Raymond Mill(Raymond Grinder) can be used to grinding the material that Moh's hardness degree is below 7 , and humidity is in 6% non-flammable explosive minerals' processing. The final product size is adjustable as required in the range of 100-325 meshes ( 0.165mm -0.044mm).

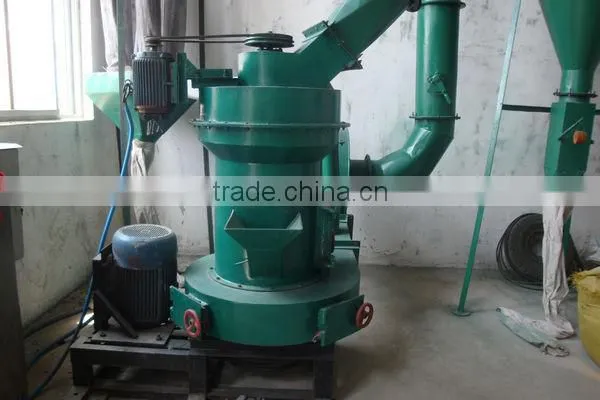

Raymond Mill(Raymond Grinder)is made up of the Mainframe, Separator, Pipeline System, Air Blower, Jaw Crusher, Hopper Elevator, Electromagnetic Vibrating Feeder, and Electric Control Motor and so on (for details see underlying graph of installation)
Technical datas of raymond mill/raymond pulverizer/raymond grinder:
Model data |
3R1410 |
3R2615 |
3R2714 |
4R2714 |
3R3016 |
4R3016 |
4R3216 |
5R4119 |
6R4525 |
Max. feeding siz(mm) |
5-8 |
20 |
20 |
15-25 |
15-25 |
15-25 |
25 |
30 |
30 |
|
Fineness of product (mm) |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
|
Capacity/Shift(t/8h) (Range diff materials) |
1-10 |
2-25 |
2-28 |
3-30 |
3-34 |
3-36 |
3-38 |
6-76 |
10-120 |
Speed (r/m) |
280 |
170 |
170 |
170 |
178 |
178 |
130 |
105 |
82 |
|
Inner ring diameter (mm) |
Φ405 |
Φ780 |
Φ830 |
Φ830 |
Φ910 |
Φ910 |
Φ970 |
Φ1280 |
Φ1770 |
Roller diameter (mm) |
Φ140 |
Φ260 |
Φ270 |
Φ270 |
Φ300 |
Φ300 |
Φ320 |
Φ410 |
Φ450 |
Height (mm) |
100 |
150 |
140 |
140 |
160 |
160 |
160 |
190 |
250 |
Main motor power(kw) |
Y160M-6-7.5 |
Y225S-8-18.5 |
Y255M-8-18.5 |
Y225M-8-22 |
Y225M-8-30 |
Y225M-8-30 |
Y225S-4-37 |
Y280S-4-75 |
Y315M-4-132 |
Fan motor model(kw) |
Y132S-4-5.5 |
Y180M-4-15 |
Y180M-4-18.5 |
Y180M-4-18.5 |
Y180L-4-22 |
Y180L-4-22 |
Y220M-4-30 |
Y25M-4-55 |
Y315M-4-132 |
Classifier motor(kw) |
Y90L-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y132S-6-3 |
Y132S-6-3 |
YC1200-4A-5.5 |
YC1200-4B-7.5 |
Y160M-4-11 |
Dimensions(mm) |
3340×2161×3246 |
5970×4000×5000 |
5970×4000×5000 |
5970×4000×5000 |
7500×4500×6200 |
7500×4500×6200 |
9900×5800×8500 |
7850×8000×9700 |
8850×10500×1100 |
Weight (kg) |
2500 |
3800 |
3850 |
3900 |
7000 |
7500 |
14000 |

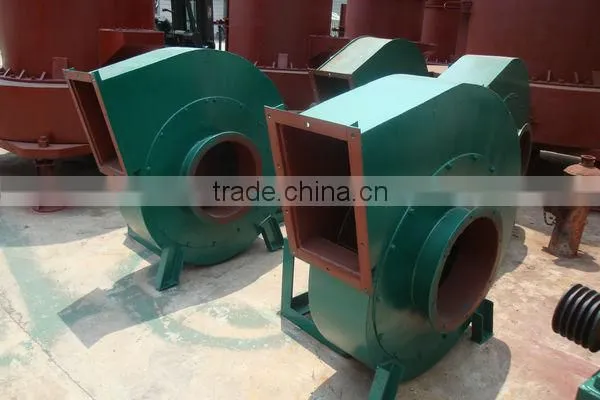

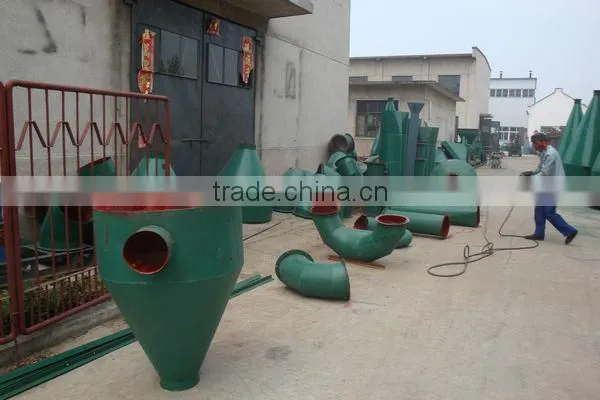

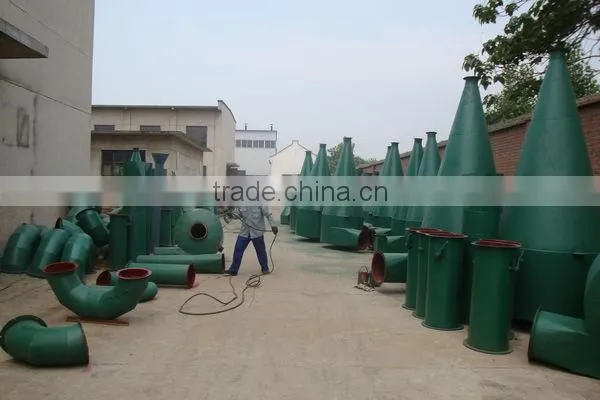

This is spare parts that suit for raymond mill:
