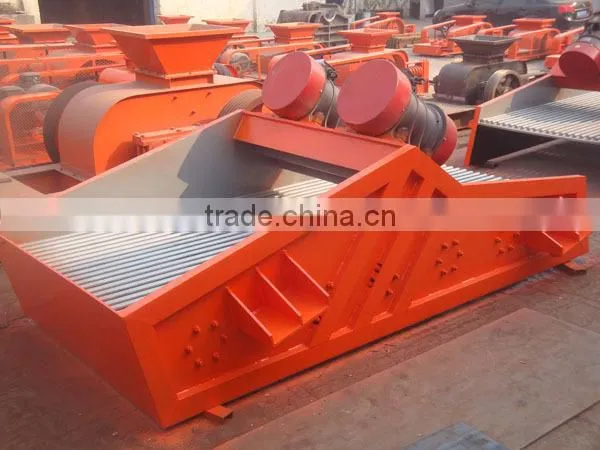

Help Center2015 New Type and Best Quality Motor Vibrating Feeder
Related Products
-
China Supplier Motor Grizzly Vibrating Feeder/vibrating Grizzly Feeder/vibrating Feeder PriceUS$ 1,000 - 200,000MOQ: 1 Set -
High Performance of Small Vibrating Feeder / Motor Vibrating Feeder for Sale With ISO CE ApprovedUS$ 1,000 - 200,000MOQ: 1 Set
-
Professional Manufacturer of Vibrating Feeder,vibrating Feeding Machine From ChinaUS$ 1,000 - 5,000MOQ: 1 Set
-
Huahong Linear Vibrating Feeder,linear Vibrating Feeding MachineUS$ 1,500 - 2,980MOQ: 1 Set
-
Mining Feeder Vibrating Feeder, Stone Feeder MachineUS$ 800 - 12,000MOQ: 1 Set
Vbrating feeder is an instrument that uses vibration to "feed" material to a process or machine. Vibrating feeders use both vibration and gravity to move material. Gravity is used to determine the direction, either down, or down and to a side, and then vibration is used to move the material. They are mainly used to transport a large number of smaller objects.
Vibrating Feeder Features and Benefits
- Stable and long span life
- Easy to adjust
- Reliable operation
- Easy maintenance
- No pollution
Vibrating Feeder Working Principle

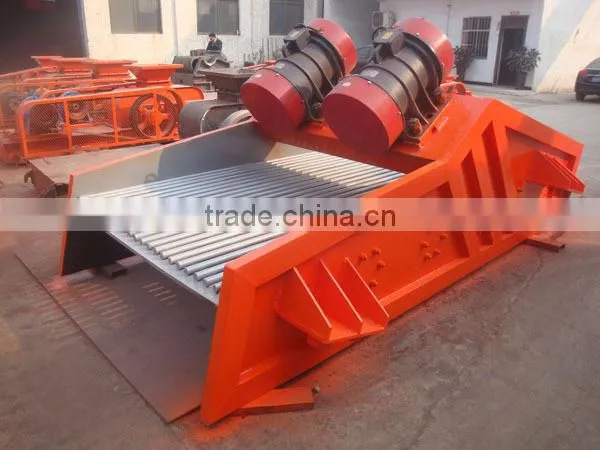

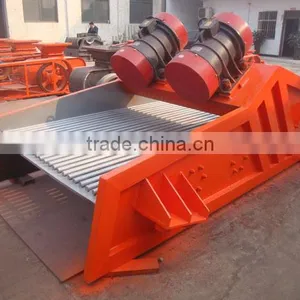

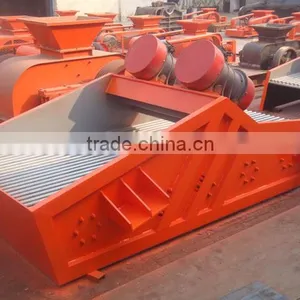

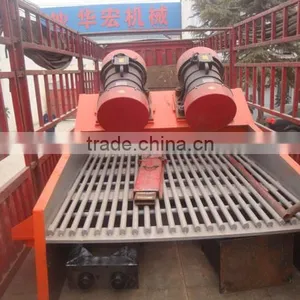

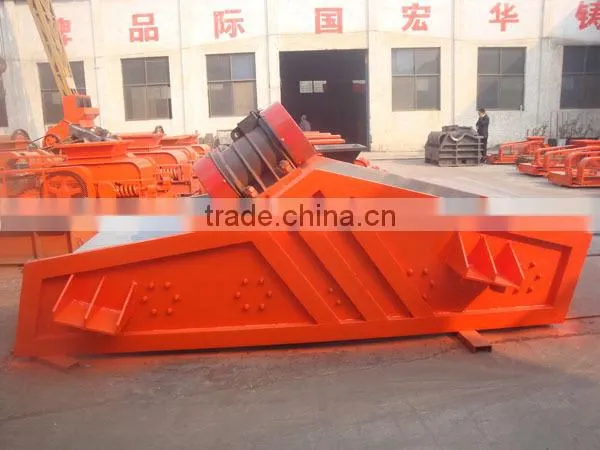

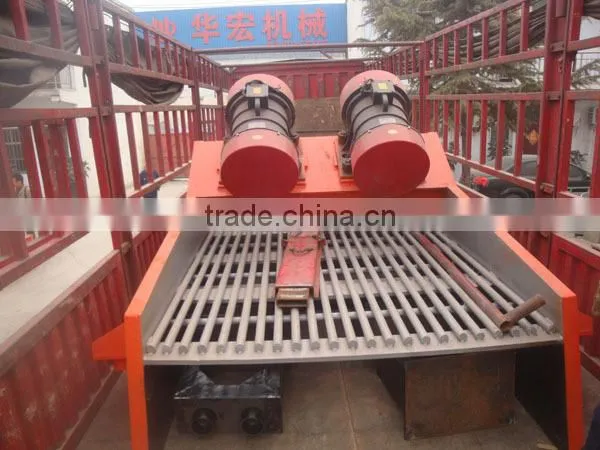

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
Main Technical Parameter
| Type | Size of Funnel(mm) | Max Feed Size(mm) | Capacity(t/h) | Power(kw) | Weight(kg) | Overall Dimension(mm) |
| GZD-850×3000 | 850×3000 | 400 | 80-120 | 7.5 | 3898 | 3110×1800×1600 |
| GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
| GZD- 1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
| GZD- 1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
| GZD- 1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
