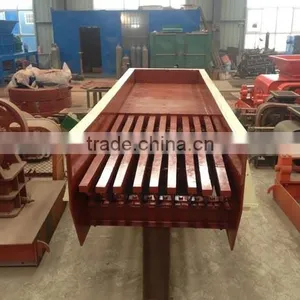

Mining Feeder Vibrating Feeder, Stone Feeder Machine thumbnail-5

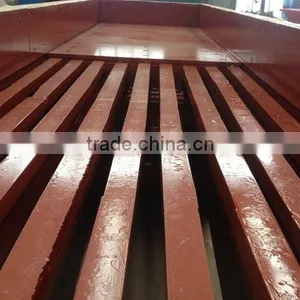

Mining Feeder Vibrating Feeder, Stone Feeder Machine thumbnail-6
Mining Feeder Vibrating Feeder, Stone Feeder Machine photo-1
Mining Feeder Vibrating Feeder, Stone Feeder Machine photo-2
Mining Feeder Vibrating Feeder, Stone Feeder Machine photo-3
Mining Feeder Vibrating Feeder, Stone Feeder Machine photo-4
Mining Feeder Vibrating Feeder, Stone Feeder Machine photo-5
Mining Feeder Vibrating Feeder, Stone Feeder Machine photo-6
US$ 800 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Ore
Capacity(t/h):
80-600t/h
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai (or others as you required)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Ore
Capacity(t/h) 80-600t/h
Place of Origin Henan, China
Brand Name HUAHONG
Model Number GZDseries
Power(W) 7.5-22kw
Dimension(L*W*H) Refer to the specific model
Weight 4-5t
Certification ISO CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas





Product Description





 Introduction of vibrating feeder:

The Vibrating Feeder (Vibratory feeder) is mainly used in feeding materials before coarse crushing. Our GZD series machine can put the block or granule materials from the material storage into the charging device in time evenly and continuously. Therefore, it can realize even feeding for crushers in sandstone production line and make rough screening of materials. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding,ect.

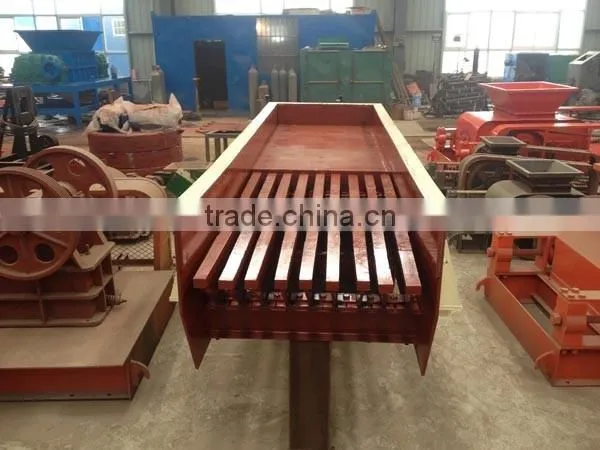

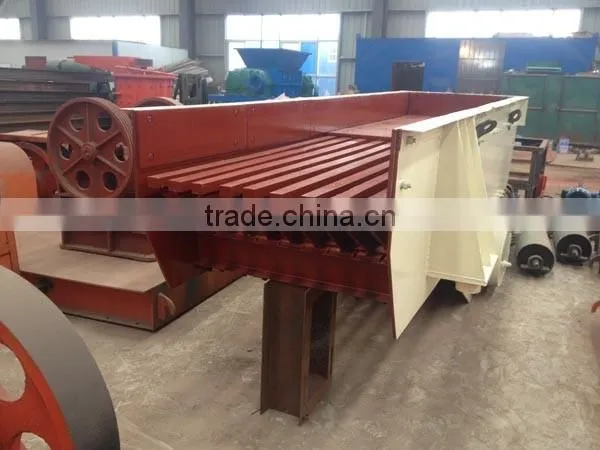

Mining Feeder Vibrating Feeder, Stone Feeder Machine



Mining Feeder Vibrating Feeder, Stone Feeder Machine



Working principle of vibrating feeder:



Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached



Features of vibrating feeder



GZD series vibrating feeder has simple structure, uniform feeding, continuous performance is good, exciting force can be adjusted; Always change and control flow, convenient operation; Eccentric block as the excitation source, low noise, less consumption, good regulation performance, no flow phenomenon; If the enclosed body can prevent dust pollution smooth vibration, reliable operation, long service life; Can adjust vibration force, can change at any time and control flow, convenient adjustment and stable; Vibration motor as vibration source, low noise, small power consumption, good regulation performance, no flow phenomenon. Vibrating feeder has simple structure, reliable operation, adjustment convenient installation, light weight, small volume, convenient maintenance, when using closed structure fuselage can prevent dust pollution.



MainTechnical parameter of vibrating feeder:




Models

Max Feed Size
(mm)

Crushing Capacity
(t/h)

Electric Motor Power
(KW)

Installation Slope

Weight
(kg)

Size of Funnel
(mm)

Overall Dimensions
(L×W×H) (mm)

GZD-850×3000

400

80~120

3.7×2

5°

3607

850×3000

3110×1800×1600

GZD-960×3800

500

120~210

5.5×2

5°

3980

1000×3600

3850×1950×1630

GZD-1100×4200

580

200~430

5.5×2

5°

4170

1100×4200

4400×2050×1660

GZD-1100×4900

580

280~500

7.5×2

5°

4520

4900×1100

5200×2050×1700

GZD-1300×4900

650

450~600

11×2

5°

5200

4900×1300

5200×2350×1750

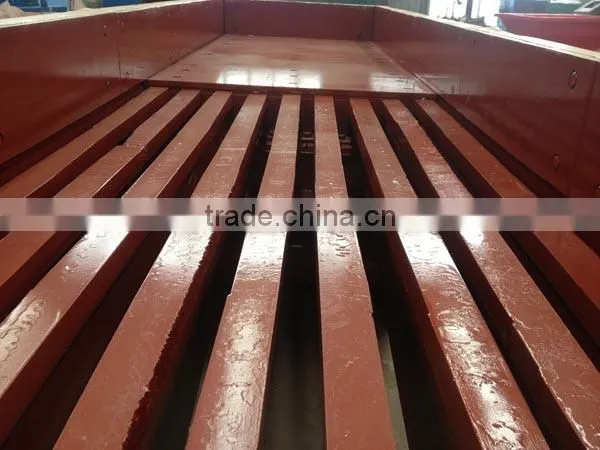

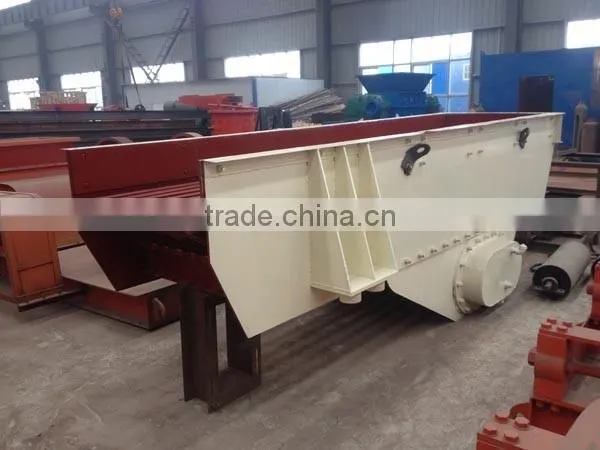

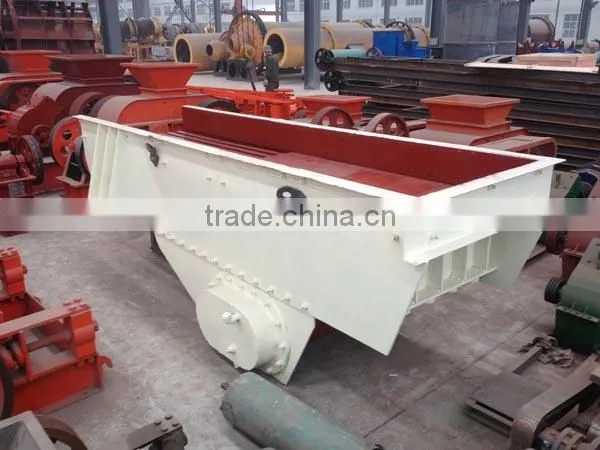

The GZD Series of vibrating feedr in our factory

 Mining Feeder Vibrating Feeder, Stone Feeder MachineMining Feeder Vibrating Feeder, Stone Feeder MachineMining Feeder Vibrating Feeder, Stone Feeder MachineMining Feeder Vibrating Feeder, Stone Feeder MachineMining Feeder Vibrating Feeder, Stone Feeder Machine
