Energy Saving Electromagnetic Vibrating Feeder

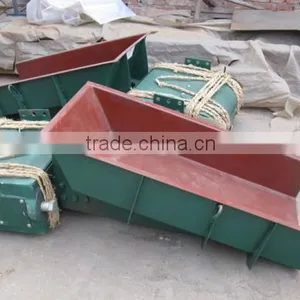

Energy Saving Electromagnetic Vibrating Feeder thumbnail-1
Energy Saving Electromagnetic Vibrating Feeder photo-1
US$ 100 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Coal,sand,stone,mining,power plant,machinery,chemistry, food etc.
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Coal,sand,stone,mining,power plant,machinery,chemistry, food etc.
Power Type Electric
Capacity(t/h) 10t/h
Place of Origin Henan, China
Brand Name huahong
Model Number GZ series
Power(W) 0.15-5.5kw
Dimension(L*W*H) accroding to the model
Weight accroding to the model
Certification ISO,CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Electromagnetic vibrating feeder
1.Automatic control;
2.Simple structure, easy maintenance;
3.Reliable operation
4.ISO,ce

Energy Saving Electromagnetic Vibrating Feeder





Introduction



Electromagnetic vibrating feeder is a kind of linear direction feeding equipment. It makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding. They are wear resistant and thus do not influence the quality and character of the product they handle. They are widely used in mining, building, silicate and chemical industries for crushing and screening.





 Energy Saving Electromagnetic Vibrating Feeder





Advantages



1. Small volume, light weight, simple structure, easy to assemble.
2. Small power consumption because it works nearly in the state of critical sympathetic vibration.
3. Control device use half wave silicon controlled rectifier circuit , hence the feeding quantity can realize the stepless adjustment easily.
4. Since the feeding material volume can be changed, started or stopped instantaneously, the feeding quantity can be controlled accurately.
5. The feeder is kept being threw up during feeding process, so the abrasion to the trough is small.

.





Parameters





 Model

Feeding capacity (t/h)

Max feeding size

(mm)

Double amplitude  (mm)

Voltage (V)

Electric current

(A)

Power (kw)

Weight

(kg)

Level angle

-10° angle

GZ-1

5

7

50

1.75

220

1.34

0.06

50

GZ-2

10

20

50

3

0.15

95

GZ-3

25

35

75

4.6

0.25

140

GZ-4

35

50

85

6.8

0.35

220

GZ-5

50

70

100

8.4

0.45

330

GZ-6

100

140

150

12.7

0.65

560

GZ-7

150

210

200

1.5

380

16.4

1.5

1150

GZ-8

250

350

250

24.6

3

1820

GZ-9

400

560

300

39.4

4

2950

GZ-10

600

840

350

47.6

5.5

3650

GZ-11

1000

1400

500

47.6×2

5.5×2

7580
