Specifications
Features of Vibrating Feeder1.Stably vibrating, reliable working.
2.Adjustable exciting frce
3.Light in weight,low noise

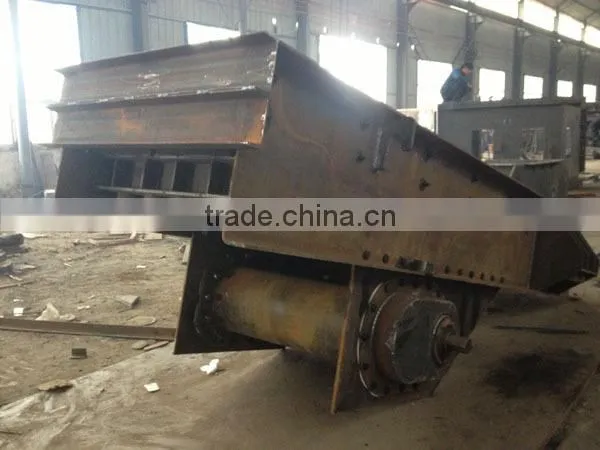

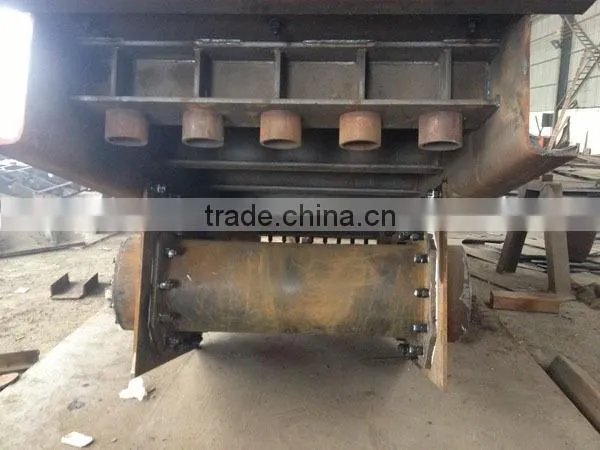

Introduction of ore chute feeder
Chute feeder is a kind of feeding equipment which is earlier used in storage trough and it is suitable for the short-distance transport of metallic and non-metallic materials. Chute feeder is widely used in metallurgical, chemical, coal, mining, water conservancy and hydropower engineering department, sending the massive and granular materials that are fed from the storage bunker to the various device.
Types of chute feeder
There are many types of chute feeder which have the common ground that they are equipped with the adjustment flashboard that is used to control the height of material layer. Below the feeding trough, there is a piece of feeding plate, which can move back and forth. The different point among the various kinds of chute feeder is that the angle of the feeding plate is different. Generally, the angle will slop down 5 degree along the unloading direction or greater inclination angle (smaller than the static angle of repose of the material) or the horizontal type with zero angle. The moving form of the feeding plate includes reciprocating type, jitter type and swinging type.
Features of ore chute feeder
1.The chute feeder can be not only set up on the ground, but also lifted on the discharge opening of
the ore bin.
2.The chassis of the trough does the reciprocating movement, its frequency of stroke is 20-60 times /
min and the stroke is 20-200mm. The stroke can be adjusted by the eccentric wheel to make proper
adjustments and the eccentricity is the half of the stroke.
3.According to the production experience of some dressing plants, as for the cohesive ores, their
eccentricity should not be less than 30 mm. The width of the cell body of chute feeder should be about
2-2.5 times of the maximum particle size of the feeding materials.
4.The largest chute feeder can meet the feeding of the ore whose granularity is less than 500mm.
Technical parameters of ore chute feeder
| Model | Trough-size(mm) | Max. feeding size(mm) | Capacity(t/h) | Motor power(kw) | Overall dimensions(mm) | Weight(kg) |
| GZD850x3000 | 850x3000 | 400 | 80-120 | 7.5 | 3110x1800x1600 | 3895 |
| GZD960x3800 | 960x3800 | 500 | 120-210 | 11-15 | 3850x1950x1630 | 3980 |
| GZD1100x4200 | 1100x4200 | 580 | 200-430 | 11-15 | 4400x2050x1660 | 4170 |
| GZD1100x4900 | 1100x4900 | 580 | 280-500 | 15-18.5 | 5200x2050x1700 | 4520 |
| GZD1300x4900 | 1300x4900 | 650 | 450-600 | 18.5-22 | 5200x2350x1750 | 5200 |
Our factory is a manufacturer and exporter of mining machinery in China.
Our main products are grinding mill, briquetting machine,sand making production line, stone prod
uction line, magnetic separating production line, Flotation separating production line, cement prod
uction line, crusher, dryer, rotary dryer, rotary kiln, coal gasifier, conveyor, ball milland so on.
All of them are ISO9001:2008 confirmed.
Warmly welcome to visit our factory!
