Specifications
Electromagnetic vibrating feeder specification:1.Evenly feeding
2.Long sevice life
3.Low power consumption

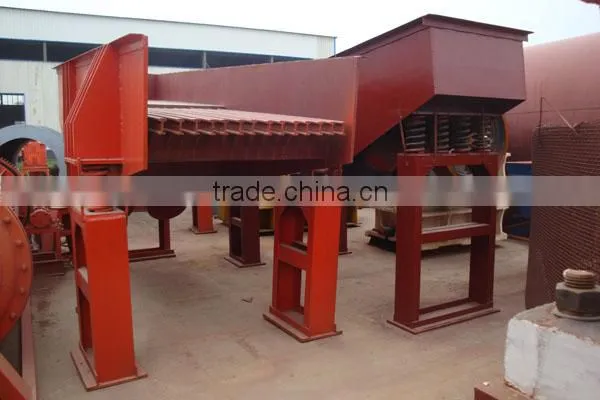

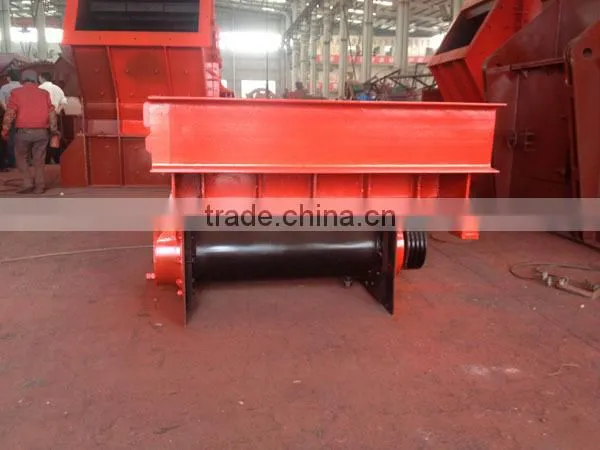

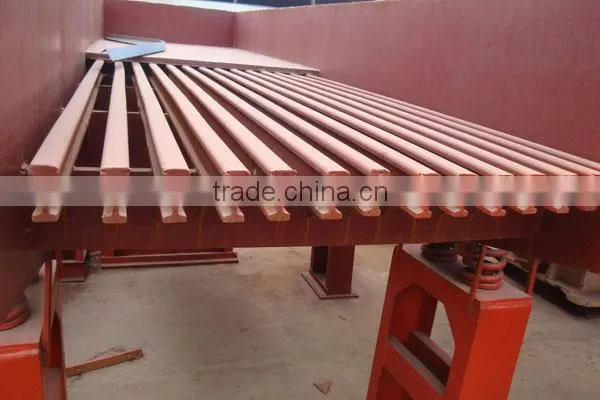

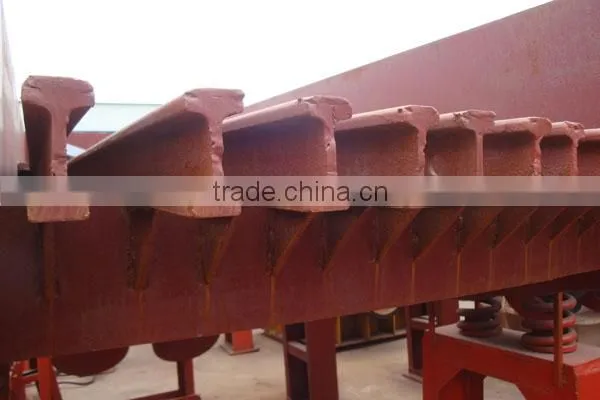

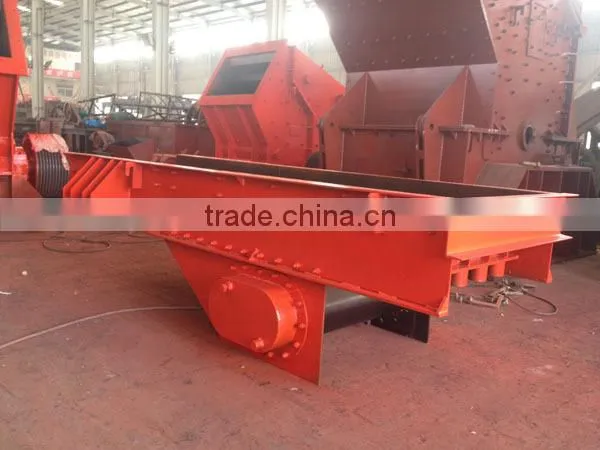

Electromagnetic vibrating feeder vibration bowl feeders, vibrating feeder
1) Introduction of electromagnetic vibrating feeder:
During the processing, vibrating feeder can transport the raw material from the storage bin to the receiving equipment uniformly, regularly, and continuously. In the stone and sand production line, the vibrating feeder can feed for the crushers uniformly, continuously, and select the materials coarsely. The vibrating feeders are widely used in the crushing, screening, etc, combination equipments of various industries like metallurgy, coal mine, mineral processing, constructions, chemical industry, abrasive materials, etc.
2) Features of electromagnetic vibrating feeder
1.Simple and reasonable structure
2.Good continuity, adjustable exciting force.
3.Easy operations and maintenance.
4.Good regulating performance, no material clashing.
5.Stable vibration, reliable work.
6.Low noise, less power consumption.
7.Reliable work, long life.
3)Main parameters of electromagnetic vibrating feeder
|
Model
|
Hopper Size (mm) |
Max feed size (mm) |
Capacity (t/h) |
Motor (kw) |
Eccentric shaft rotate speed (r/min) |
Overall Dimension (L * W * H) ) (mm) |
Weight (kg) |
Zsw380*96 |
3800*960 |
500 |
96-160 |
11 |
500-714 |
3882*2177*2066 |
4360 |
Zsw420*110 |
4200*1100 |
580 |
120-240 |
15 |
500-800 |
4282*2400*2150 |
5004 |
Zsw490*110 |
4900*1100 |
630 |
120-280 |
15 |
500-800 |
4950*2455*2031 |
5352 |
Zsw590*110 |
5900*1100 |
700 |
200-350 |
22 |
500-800 |
6000*2500*2150 |
6130 |
Zsw600*130 |
6000*1300 |
750 |
400-560 |
22 |
500-800 |
6082*2580*2083 |
7800 |
Note: If the type is not what you need, please contact us and more other types are available.
Also, we are pleasure to special design for you according to your needs.
4)Stone-Making Production Line
Stone production line:
Including:
Jaw crusher
Impact crusher
Cone crusher
Hammer crusher
Vibrating screen etc
*In order to find the suitable models and design the best stone crusher plant or sand making line for you, please kindly inform us the following information:
1.Material Property
2.Capacity
3.Output Size
4.Types of Output
5.Site Conditions and Purpose.
Thank you for your cooperation!
If you have any other questions, please feel free to contact us!
