Specifications
1.stable vibration2.reliable operation
3.low noise, low power consumption
4.good regulation
5.easy to install and maint
mining motor vibrating hopper feeder machine for iron ore
Introduction of mining motor vibrating hopper feeder machine :
The Vibrating Feeder (Vibratory feeder) is mainly used in feeding materials before coarse crushing. Our GZD series machine can put the block or granule materials from the material storage into the charging device in time evenly and continuously. Therefore, it can realize even feeding for crushers in sandstone production line and make rough screening of materials. The vibrating feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding,ect.
Performance of mining motor vibrating hopper feeder machine :
1.stable vibration, reliable operation and long service life;
2.the excitation force and materials quantity moving in the feeder can be adjusted conveniently and easily;
3.the vibrating motor, as the excitation source, has low noise, small power consumption, good adjusting performance and without material splash;
4. simple structure, reliable running, convenient installation, light weight, small size, easy maintenance, and the enclosed type can prevent dust pollution
Principle of mining motor vibrating hopper feeder machine:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the
slope surface of the feeder.

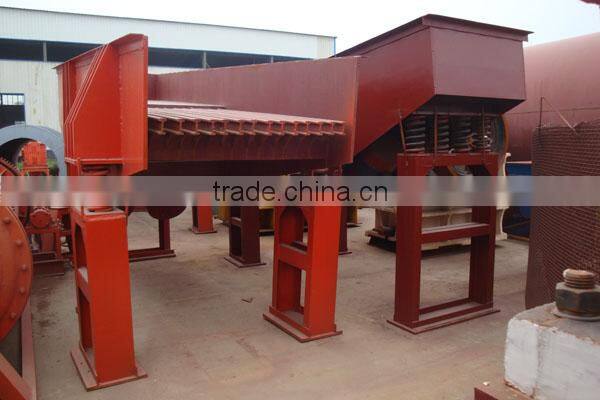

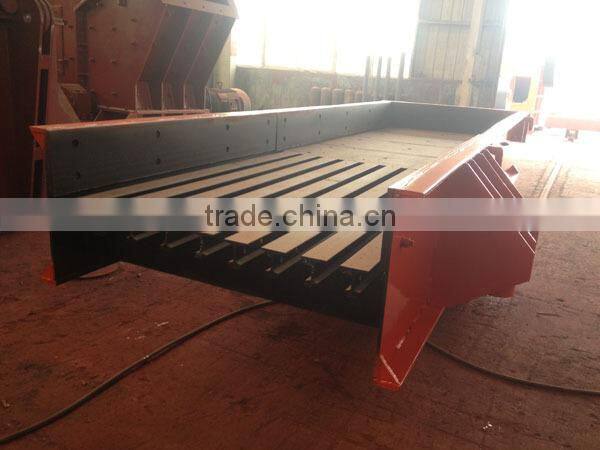

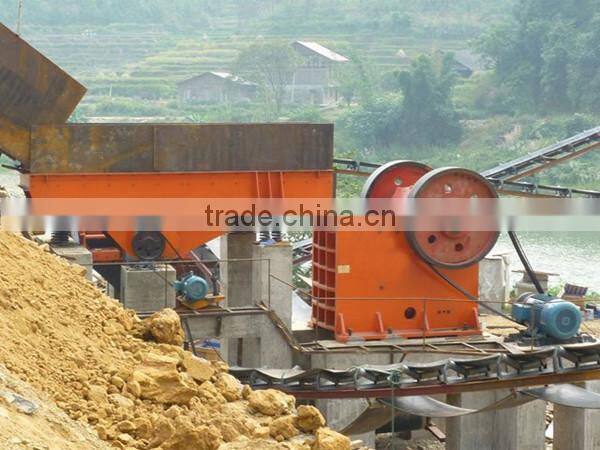

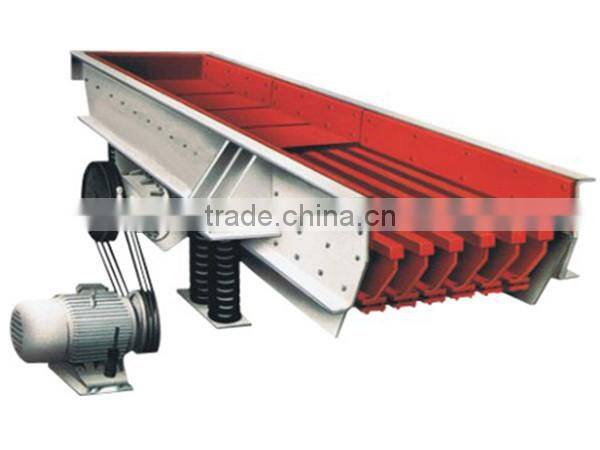

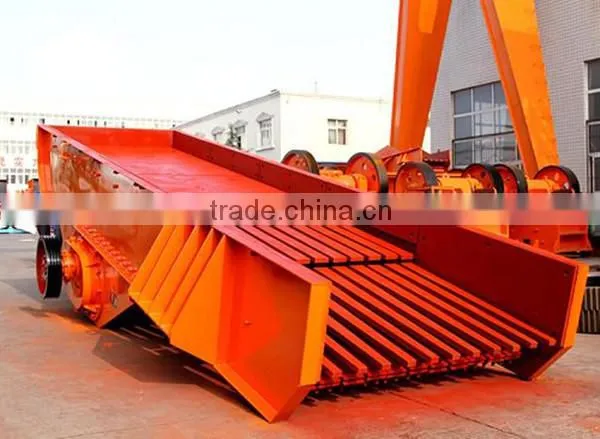

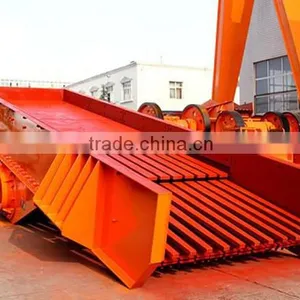

Pictures of mining motor vibrating hopper feeder machine:

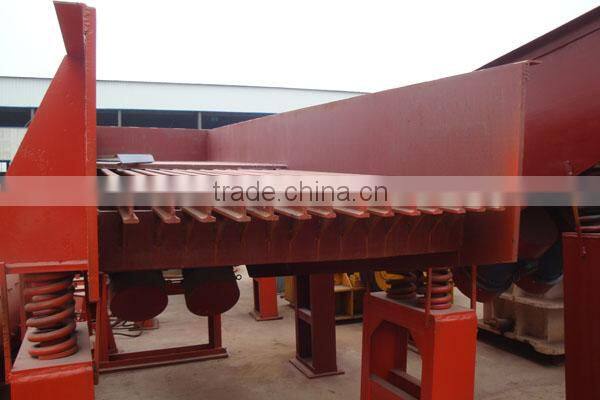

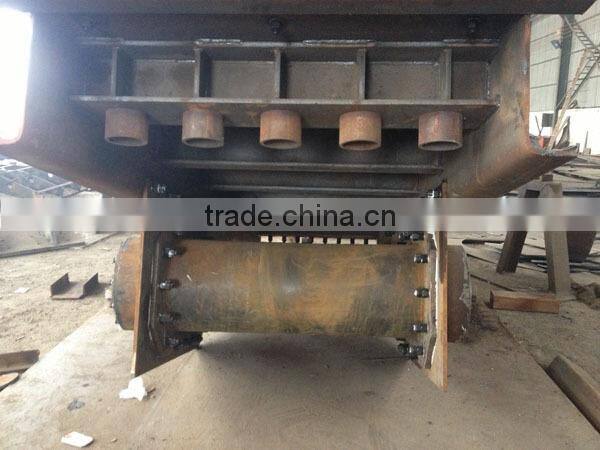

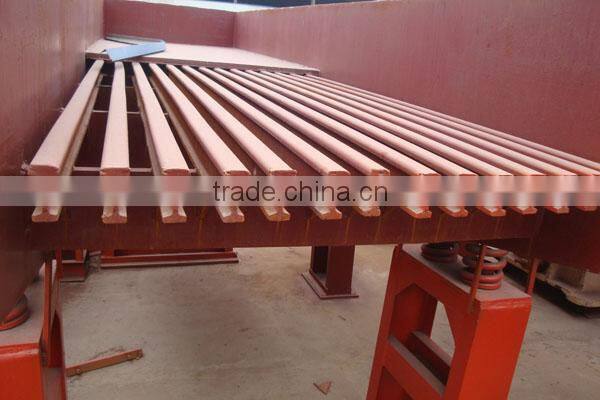

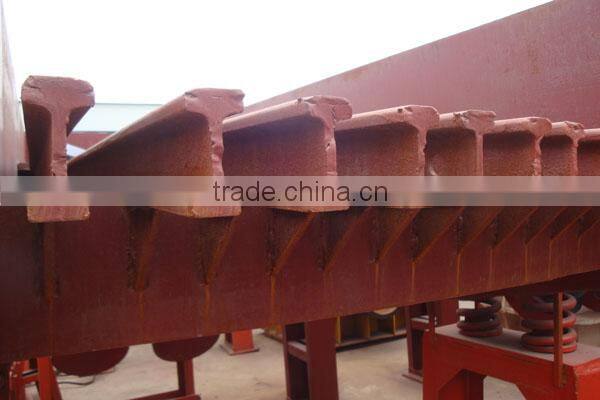

No paint mining motor vibrating hopper feeder machine :
Performance of Performance of mining motor vibrating hopper feeder machine:
1.stable vibration, reliable operation and long service life;
2.the excitation force and materials quantity moving in the feeder can be adjusted conveniently and easily;
3.the vibrating motor, as the excitation source, has low noise, small power consumption, good adjusting performance and without material splash;
4. simple structure, reliable running, convenient installation, light weight, small size, easy maintenance, and the enclosed type can prevent dust pollution
Principle of mining motor vibrating hopper feeder machine:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
GZD mining motor vibrating hopper feeder machine technical parameter:
Model |
Max. feed size (mm)
|
Rotate speed (r/min)
|
Capacity (t/h)
|
Power (kw)
|
Dimension (mm)
|
Weight (kg)
|
GZD95×300 |
400 |
970 |
120 |
3.7×2 |
3100×1750×1640 |
3360 |
GZD100×300 |
500 |
970 |
150 |
3.7×2 |
3100×1800×1640 |
3800 |
GZD100×360 |
500 |
725 |
150 |
5.5×2 |
3600×1700×1600 |
4200 |
GZD120×360 |
500 |
735 |
180 |
5.5×2 |
3880×2150×2115 |
4909 |
GZD120×420 |
600 |
735 |
200 |
7.5×2 |
4310×2157×2150 |
5710 |
Note: This specification is just reference, any changes are subject to the products. We can produce equpement as your special requirement.
Mining machines design and manufacture.
Technical engineer is available to the construction site for installation instruction and trial operation.
Customization is available.
Why Choose Us?
We are the manufactory, we can provide you ex-factory price;
Strictly quality control system;
Professional technical online service;
Any mail or message will be replied within 8 hours;
Completive manufactory price;
We have many large ore dressing line;
We will provide equipment operation training for our client;
We have a professional after-sale service team to promptly solve your problems.
