Home > Products > UHF RFID Integrated Reader > High Quality Long Distance Rfid Parking System
High Quality Long Distance Rfid Parking System
- 1000 Unit / Units per Month
- Shenzhen
- Credit Card
Product Details
Type: | Parking Lift | Height (mm): | 306 | Width (mm): | 306 |
Place of Origin: | Guangdong, China | Brand Name: | VANCH | Model Number: | VI-86F |
Product Description

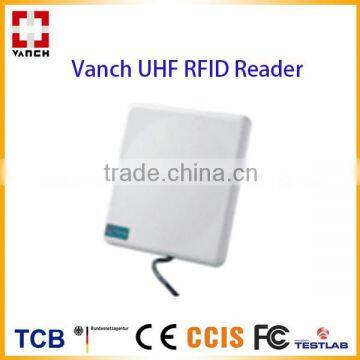

High Quality Long Distance Rfid Parking System
Application
logistics, access control, ETC, electronic security, manufacturing automation and etc.
Features
Reliable industry structure design, workable in varied severe environment.
Specification
Performance Index |
| |
Frequency range | 902-928MHZ/865-868MHZ(or customized) |
|
FM mode | FHSS or fixed frequency, set by the software |
|
Reader chip | Impinj R2000 indy | |
RF output | 30dBm adjustable |
|
Communication interface | TCP/IP,RS232,RS485,Wiegand26/34 |
|
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
|
GP I/O interface | 12 pin + 4 pin |
|
Power dissipation | average<15W |
|
Application software | Provide with API SDK and VC, VB, Java application routines |
|
Tag Operation Performance |
| |
Reading distance | 5-30m equipped with 12dbi antenna(tag dependent) |
|
Air interface | EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B |
|
Mechanical and Electrical Performance |
| |
Dimension | 445(L)*445 (W)*70(H)mm |
|
Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
|
Weight | 2KG |
|
Humidity | 5% to 95%, non-condensing |
|
Protection grade | IEC IP65 |
|
Operation temperature | -20 ºC to +60 ºC |
|
Storage temperature | -40°C to 80°C |
|
Project case
Underground Parking lot System
Company Information
Shenzhen VANCH Intelligent Technology Co., Ltd. is the leading UHF RFID product manufacturer and application solution supplier in China.
