UHF RFID Waste Bins Tracking/Garbage Bags Tracking Solution With GPRS
VANCH UHF RFID Waste Bins tracking/Garbage Bags Tracking
VANCH RFID Hardware for this application:

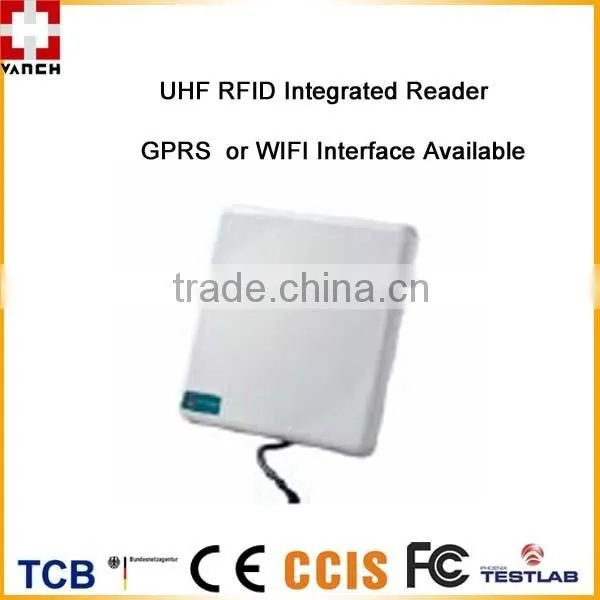

VI-86E UHF RFID Integrated Reader to be put on the Truck
VT-87 RFID ANTI-METAL tag to be fixed on the wast bin
Data transfer to web server via GPRS
Application:
1. Parking management: Long range intelligent parking management and automatic charge without stop the car
2. Production line management: Goods identification for production flow
3. Auto Access control: Long range access control management for custom, sea port
4. Logistics and warehouse management
5. People auto registry for important meeting or exhibition
6. Automatic weighing and data capture.
Frequency range | 902-928MHZ(or customized) |
FM mode | FHSS or fixed frequency, set by the software |
RF output | 30dBm adjustable;50Ω load |
Communication interface | LAN,RS232,RS485,Wiegand26/34,IEEE 802.11 |
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
GP I/O interface | 12 pin + 4 pin |
Power dissipation | average<10W |
Application software | Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance | 6~10m equipped with 9dbi antenna(tag dependent) |
Air interface | EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension | 306(L)*306(W)*25(H)mm(excluding mounting bracket and external wiring) |
Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight | 2.6Kg |
Installation | Embrace rod mounting |
Diameter of support rod | 40-50mm |
Humidity | 5% to 95%, non-condensing |
Protection grade | IEC IP65 |
Operation temperature | -20 ºC to +60 ºC |
Other products available: rfid reader, rfid tag, uhf rfid, rfid software, rfid module, hf rfid, rfid handheld reader, rfid system, rfid solution, rfid smart card, SDK, rfid mobile reader, 902-928MHz rfid reader, 865-868MHz rfid reader, rfid forklift reader, OEM rfid antenna, rfid transponder, Long Range 2.4G Active RFID Reader, 2.4G RFID Reader, active integrated reader, long distance RFID reader, directional rfid reader, active directional rfid reader, 2.45ghz rfid reader, vehicle access control rfid reader, RFID reader price rfid access control, rfid tracking, rfid laundry tag, passive rfid reader, rfid reader rs232 and so on, and our products are used in warehouse management, assets tracking, Automatic vehicle identification ,vehicle management/tracking, Parking management, highway toll collection , Warehousing and logistics ,library & files management, School & cooperation personnel management and positioning , personnel tracking, sports timing etc.
