865MHz or 915MHz Long Range UHF RFID Integrated Reader for Vehicle Car Access Control in Parking Lot
Q: What is the UHF RFID Integrated Reader (VI-88F) made of?

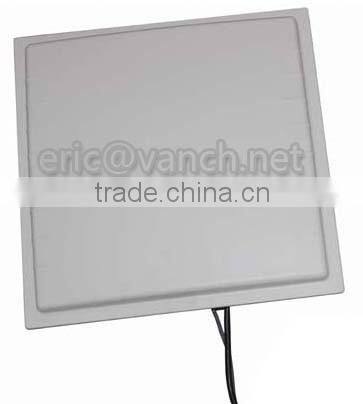

A: It is made of antenna with housing, reader board, communication cable and clamp for installation.
Q: What project will the UHF RFID Integrated Reader (VI-88F) be able to implement?

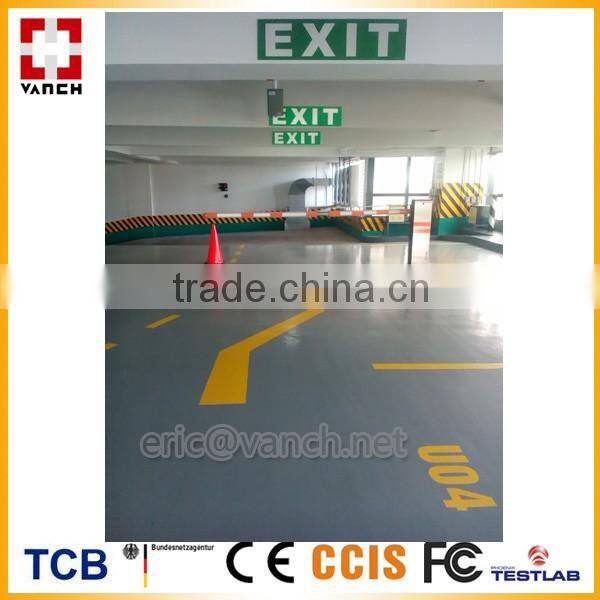

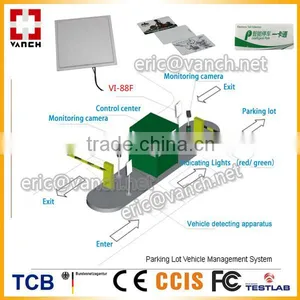

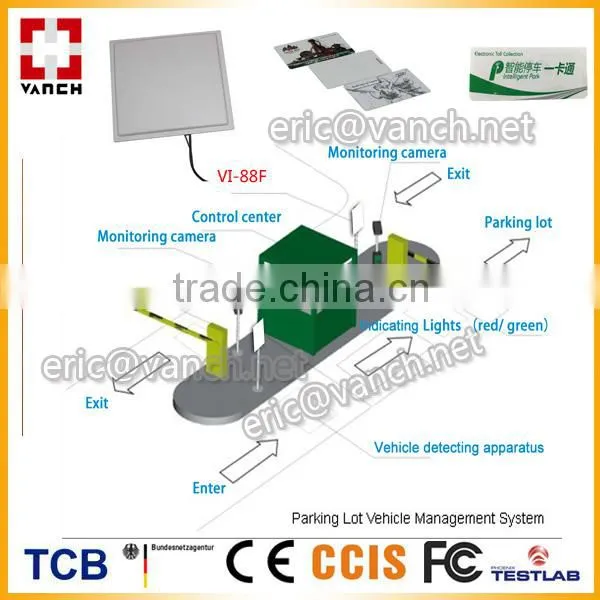

A: Parking lot, vehicle access control, ETC (electronic tolling collection),
manufacturing automation,laundry and personnel attendance etc.
Q: What is its main feature?
A: 1. Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
2. RF output power 30dbm adjustable, support multi work modes (auto, command, triggering);
3. Reliable industry structure design, workable in varied severe environment. It is IP65 level.
Quick View of Parameter:
Model# | VI-88F |
Performance Index | |
Frequency range | 902-928MHZ/865-868MHZ(or customized) |
FM mode | FHSS or fixed frequency, set by the software |
RF output | 30dBm adjustable |
Communication interface | LAN,RS232,RS485,Wiegand26/34; Option WIFI, GPRS |
Communication rate | Serial port 9600~115200bps,RJ45 10Mbps |
I/O interface | TTL |
Power dissipation | average<15W |
Application software | Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance | 5~18m equipped with 12dbi antenna(tag dependent) |
Air interface | EPC global UHF ISO-18000-6C(EPC G2)and ISO-18000-6B |
Mechanical and Electrical Performance | |
Dimension | 445(L)*445 (W)*70(H)mm |
Power supply | Equipped with power convertor 220V AC input, +9V/3A DC output |
Weight | 5.2 KG |
Humidity | 5% to 95%, non-condensing |
Protection grade | IEC IP 65 |
Operation temperature | -20 ºC to +60 ºC |
Storage temperature | -40°C to 80°C |
