Vanch UHF RFID Integrated Reader VI-86R For Logistics Management

Name: Vanch UHF RFID Integrated Reader VI-86R For Logistics Management
Brand: Vanch RFID
SKU: 101691761

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Vanch RFID

Model Number:

VI-86R

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Vanch RFID

Model Number VI-86R

Vanch UHF RFID Integrated Reader VI-86R For Logistics Management

Application

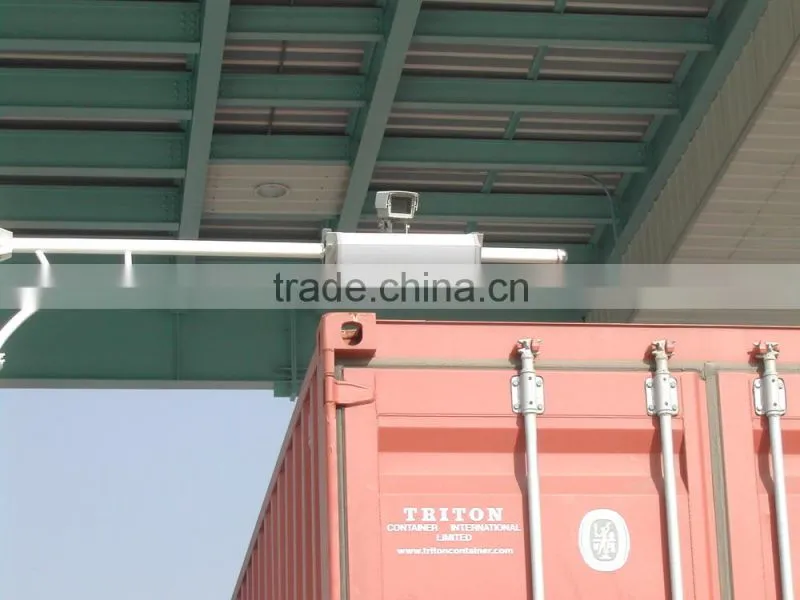

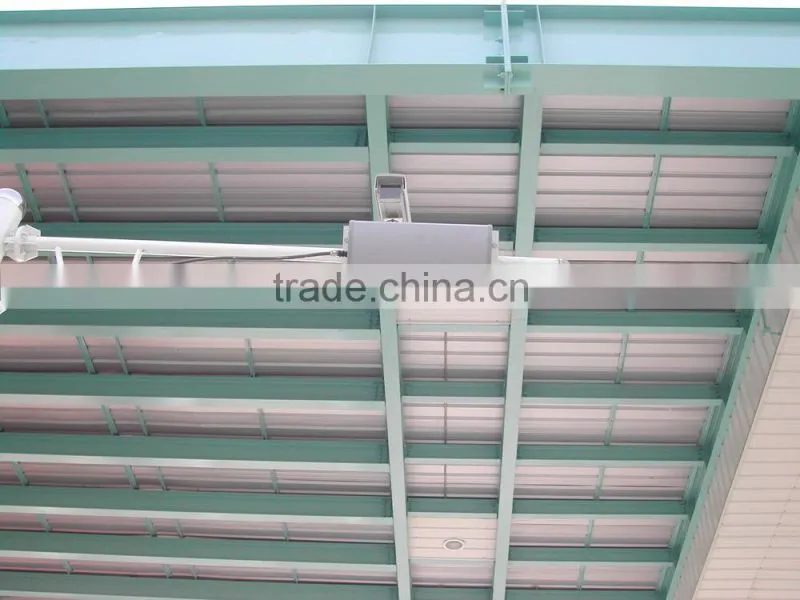

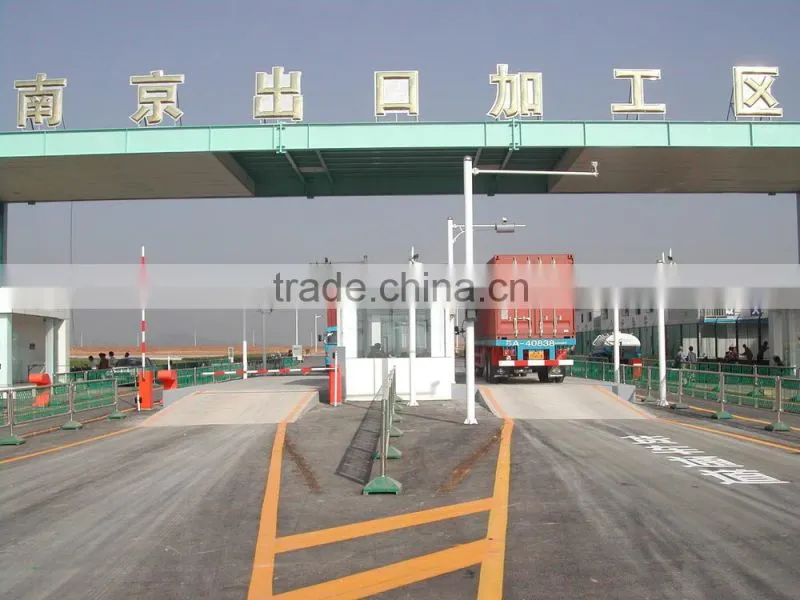

logistics, access control, parking management, manufacturing control and etc.

Features
Reliable industry structure design, workable in varied severe environment.

Specification

Performance Index
Frequency range	902-928MHZ/865-868MHz(or customized)
FM mode	FHSS or fixed frequency, set by the software
Reader chip	Impinj R2000 indy
RF output	30dBm adjustable;50Ω load
Communication interface	LAN,RS232,RS485,Wiegand26/34,IEEE 802.11
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
GP I/O interface	12 pin + 4 pin
Power dissipation	average<10W
Application software	Provide with API SDK and VC, VB, Java application routines
Tag Operation Performance
Reading distance	6~10m equipped with 9dbi antenna(tag dependent)
Air interface	EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B
Mechanical and Electrical Performance
Dimension	306(L)306(W)25(H)mm(excluding mounting bracket and external wiring)
Power supply	Equipped with power convertor 220V AC input, +9V/3A DC output
Weight	2.6Kg
Installation	Embrace rod mounting
Diameter of support rod	40-50mm
Humidity	5% to 95%, non-condensing
Protection grade	IEC IP65
Operation temperature	-20 ºC to +60 ºC
