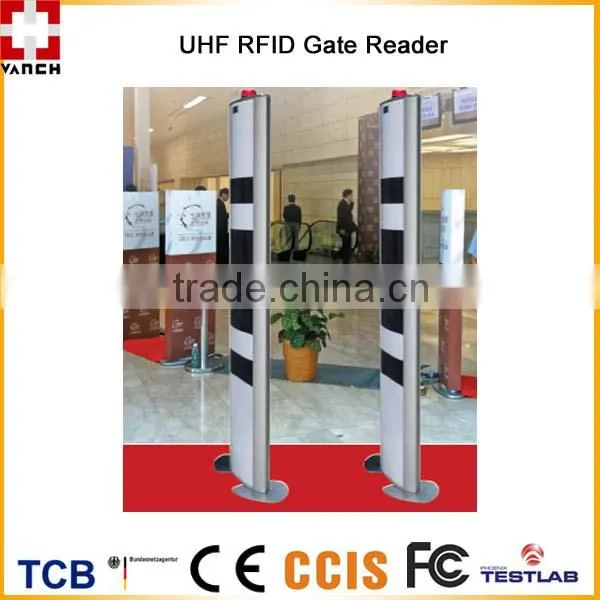

VANCH Library EAS+ UHF RFID Access Control Gate Reader
l Based on independent intellectual property development, adapt reader to work with global frequency range.
l RFID gate reader is combined by RFID antennas, reader, EAS sound and light alarm system, power supply and
l other assistant equipments. When goods or person attached with RFID tag go through the channel, RFID antenna
l will read the information and real time send to reader and related processor, to achieve the goods or person
l management.
l Application: warehouse assets management, meeting attendance, clothes industry, books and files industry,
l manufacturing control and other open fields with big flows.
Features
- Support tags conforming to standards EPC global UHF ISO-18000-6C (EPC G2), TK900;
- Frequency range 902~928MHZ(or customized);
- Support multi communication interfaces (LAN, RS232, RS485, Wiegand26/34);
- 4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable;
- RF output power 20 ~ 30dBm adjustable, support auto, command, trigger work modes;
- Reliable industry structure design, workable in varied severe environment.
Specification |
|
Model# |
VC-420T |
Performance Index | |
Frequency range |
902-928MHZ(or customized) |
FM mode |
FHSS or fixed frequency, set by the software |
RF output |
20-30dBm adjustable |
Antenna connection qty’ |
4 SMA antenna ports, 7dbi circular polarization antenna, the height of antenna adjustable |
Communication interface |
LAN,RS232,RS485,Wiegand26/34 |
Communication rate |
Serial port 9600~115200bps,RJ45 10Mbps |
Power dissipation |
average<20W |
EAS alarm |
3s sound and light prompt |
GP I/O interface |
12 pin + 4 pin |
Reliable firmware upgrade |
Extensible upgrade mechanism |
Application software interface |
Provide with API SDK and VC, VB, Java application routines |
Tag Operation Performance | |
Reading distance |
1.5-3m equipped with 7dbi antenna (tag dependent) |
Air interface |
EPC global UHF ISO-18000-6C(EPC G2),TK900 |
Mechanical and Electrical Performance | |
Dimension |
157(L)x44.5 (W)x13(H)cm |
Power supply |
220V AC input |
Weight |
20KG |
Humidity |
5% to 95%, non-condensing |
Protection grade |
IEC IP51 |
Operation temperature |
-20 ºC to +60 ºC |
Storage temperature |
-40°C to 80°C |
1, Supply different kinds of UHF RFID reades,antennas, tags(protocol of EPC C1G2 and ISO-18000/6C 902-928MHZ 865-868MHZ and 2.45GHZ active RFID Products
2, Have our own R&D Department to customize RFID Products for you.
3.Assist you to design different kinds of industry RFID solution
4.Products are CE and FCC certified
Shenzhen Vanch Intelligent was established in2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.VANCH products were widely used in City Smart transportation, Electric power system, asset and logistics management, the world's top 500 enterprises, government and military and other fields
