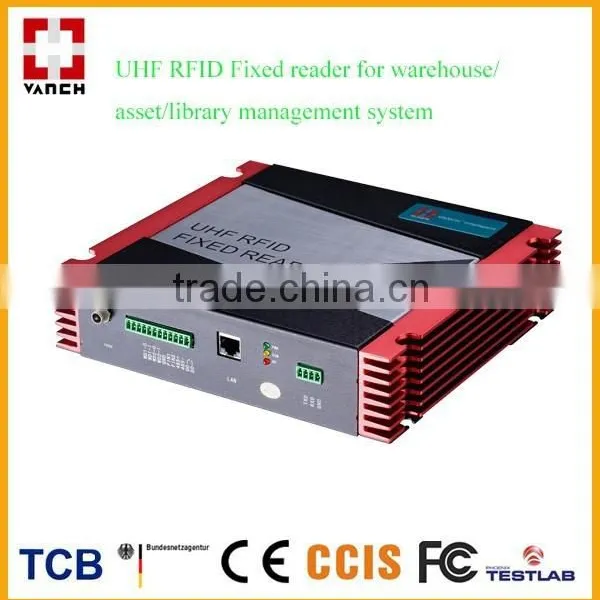

Help Center860mhz-960mhz Long Range Read Distance Passive UHF RS232 RFID Fixed Parking Gate Reader With Competitive
Related Products
-
Linux Rfid Reader UHF With MemoryNegotiableMOQ: 1 Piece -
VANCH UHF Card Reader/ Rfid Reader Gen 2 6C Tag ReaderNegotiableMOQ: 1 Set
-
IP67 UHF RFID Fixed Waterproof, Dustproof Reader for OutdoorNegotiableMOQ: 1 Unit
-
Long Range Fixed Mounted UHF RFID Reader 4 Port Antenna Reader Quality ChoiceUS$ 1 - 750MOQ: 1 Unit
-
IP67 UHF RFID Outdoor Fixed Reader 4 ChannelNegotiableMOQ: 1 Unit
Introduction
l Based on the development of independent intellectual property rights, the reader adapt to the global frequency band setting.
l Adopt high-performance Impinj UHF reader chip IndyR2000 to achieve the best Intensive reader mode, the maximum read speed and optimum read ranges.
l Application: warehousing and logistics supply chain, fixed asset management, transportation and vehicle management, manufacturing, etc.
Features
1, Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation
2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard
3, operating frequency is between 860-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)
4, RS232, RS485 and TCP / IP communication
5, Support 1, 2, 4 external SMA antenna connections
6, Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.
7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.
8, Reader supply multi I/O input output connectors, convenient for device to integrate and application
9, highly reliable design for industrial structure to meet the demanding work environment
Tag air interfaces |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Frequency ranges |
902~928MHz(customize for your requirement) |
Work style |
For FHSS or fixed frequency |
Antenna port |
4SMA (female) antenna port |
RF power control |
+10.0 to +32.5 dBm |
Read distance |
3~20M(Tags dependent) |
Max receiving sensitivity |
-82 dBm; Maximum return loss: 10 dBm |
Communication interface |
LAN, RS232, RS485, Wiegand26/34 |
Communication rate |
serial port rate 9600~115200bps, RJ 45 is 10Mbps |
Reliable firmware update |
extensible upgrade mechanism |
Input/output(GPIO) |
2 route input, 1 route output |
Power |
External 22OV AC, +12V/3A DC adapter |
Consumption |
Average Power<20W |
Non-condensing Enclosure |
IEC IP52 |
Operating Temp. |
-20 ºC to +60 ºC |
Humidity |
5% to 95%, no condensed |
Dimensions |
220(L)*200 (W)*48(H)mm |
Application software interface |
Provide API SDK,Demo in VC and VB. |
Weight |
1.5KG |
1. With high performance Impinj UHF reader chip IndyR2000,achieve best multi-tags read effect, best read rate and best read range
2. Apply for: supply chain, fixed assets management, manufacturing and etc.
Not only for this, we did some other related projects as well, pls check the project pictures.
Welcome to contact me at mail beata at if you have any interest!
** Vanch Intelligent Technology Co.,Ltd. was established in 2005, one of the earliest UHF RFID products manufacture and application solutions supplier in China.
** As High-tech enterprise and software development &Design company, Vanch has a number of patents and copyright of software and hardware. RFID products passed CE certification and FCC, sold very well in Europe and America market.
** VANCH is membership of RFID Enterprise Alliance, RFID Standards Association and Internet of Things Association.
