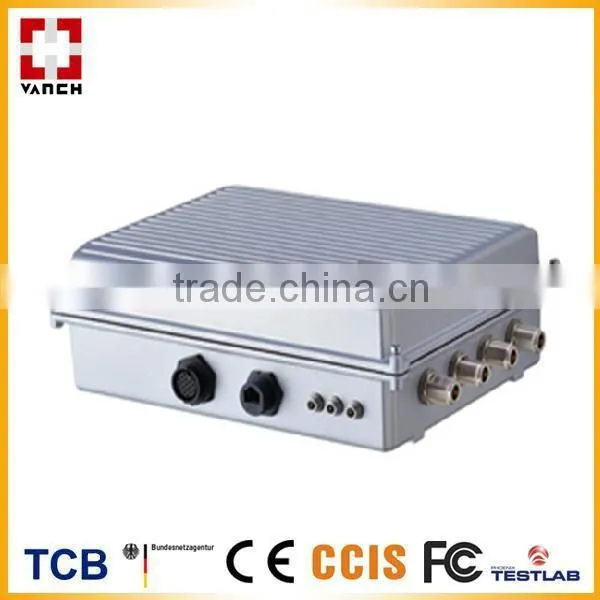

IP67 UHF RFID outdoor fixed Reader 4 channel
New arrival!!!
Introduction
l Adopt High-strength die-casting aluminum shell,IP-67 protection rating
l Adopt high-performance Impinj UHF reader chip IndyR2000 and TI ARM Embedded processing chip
l achieve stable operation of the multi-lane free flow by Tag read sensitivity and Collaborative professional algorithm
l Application:Intelligent transportation, Port and dock vehicle management and outdoor harsh environment
Features
1. Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation
2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard
3, operating frequency is between 860-868MHZ/902- 928MHZ (can be adjusted according to different countries or regions)
4, Support RS232, RS485 and TCP / IP communication interface etc.
5, Support 1, 2, 4 external SMA antenna connections
6, Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.
7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.
8, Reader supply multi I/O input output connectors, convenient for device to integrate and application
9, Highly reliable design for industrial structure to meet the demanding work environment
Specification |
|
Performance Index | |
Frequency range |
865-868MHZ,902-928MHZ(can be customized) |
Frequency modulation |
FHSS or fixed-frequency, can be set by software |
RF output |
+10.0 to +32.5 dBm;50 ohm load. |
Number of antennas |
1 SMA antenna connector; 2 SMA antenna connector; 4 SMA antenna connectors for selections |
Communication interface |
10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface |
Communication rate |
Serial rate 9600~115200bps,RJ45 is 10Mbps |
Secure firmware upgrade |
The upgrade mechanism can be extended |
input / output (GPIO) |
2 inputs, 1 output |
Application software |
Supply API SDK and VC and VB, Java application routines |
Tag Performance | |
Reading distance |
8dbiAntenna configuration, typical read range: 3 to 20 m (depends on tag) |
Protocol |
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Maximum receiver sensitivity |
-82 dBm;Maximum return loss: 10 Dbm |
Mechanical electrical performance | |
Dimension |
256(L)*200 (W)*86(H)mm |
Power |
220V AC input |
Weight |
<4KG |
Humidity |
5% to 95%, Non-condensing |
IP rating |
IEC IP67 |
Operating Temp. |
-20 ºC to +60 ºC |
Storage Temp. |
-40°C to 80°C |
