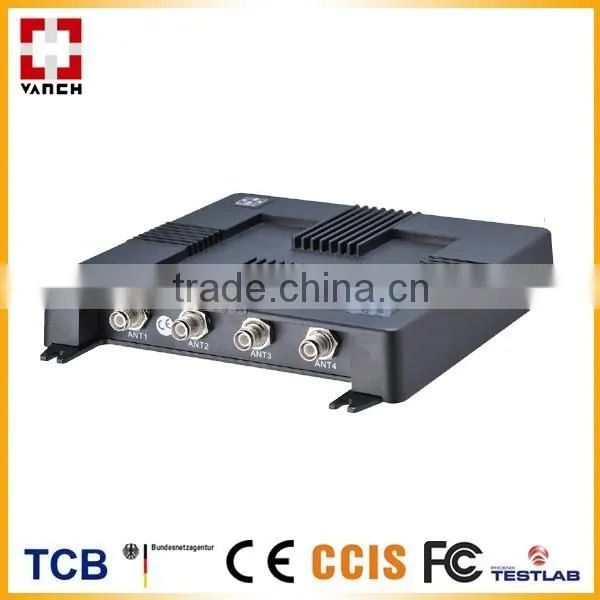

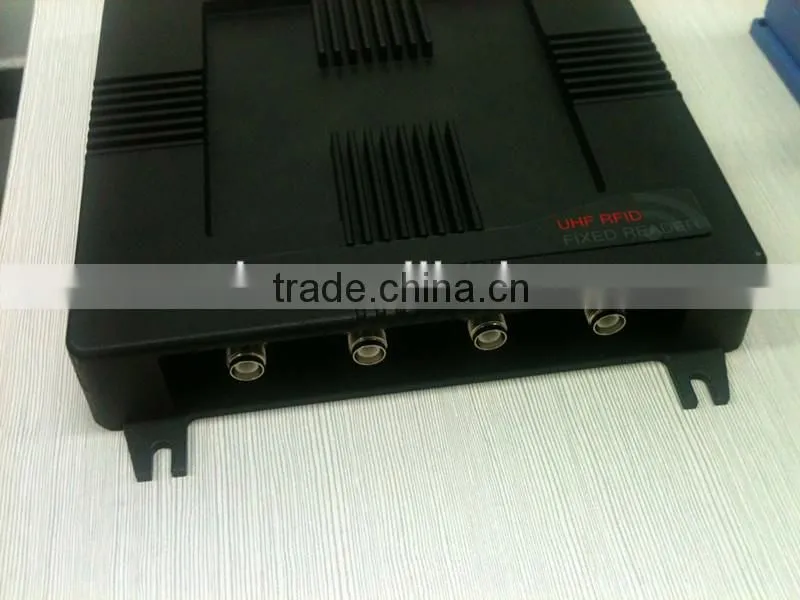

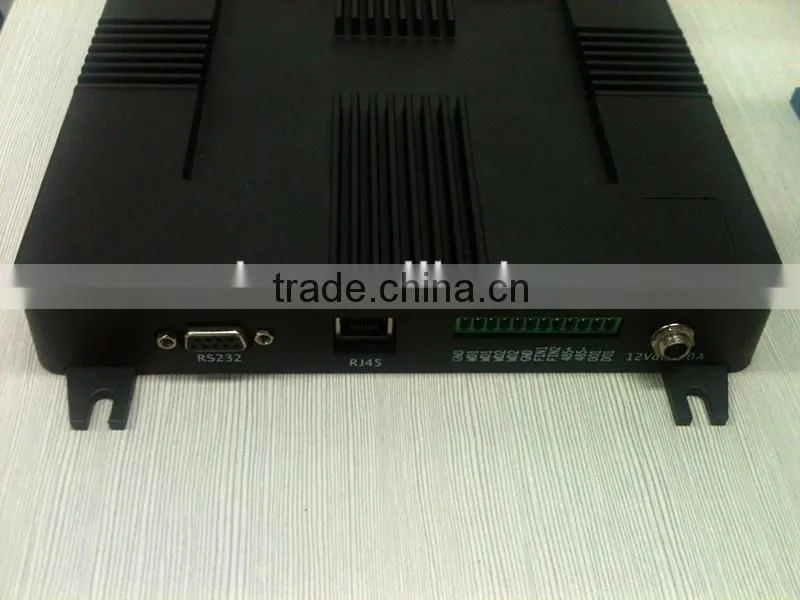

Linux Rfid Reader UHF With Memory

Name: Linux Rfid Reader UHF With Memory
Brand: VANCH rfid reader
SKU: 101690019

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

VANCH rfid reader

Model Number:

linux rfid reader VF-847

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name VANCH rfid reader

Model Number linux rfid reader VF-847

Linux RFID reader UHF with memory

Feature

1. Adopt impinj indy r2000 chip and ARM9 processor +Linux platform, realize high-speed reading and fast data operation;

2. support tags with standards EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B;

3. work frequency 860-868MHZ,902-928MHZ(depends on different coutries);

4. support RS232,RS485,Ethernet,Wiegand communication interfaces;

5.Support SSH,FTP,Telnet,HTTP network communication modes,and embedded with WebServer to realize basic self-testing function;

5. support 1,2,4 TNC antenna ports;

6. output power 32dbm adjustable,support AUTO mode,COMMAND mode,Trigger mode;

7. buzzer and LED indicator light;support file sharing,ftp firmware online upgrade;

8. support multi-group I/O interface, easy to application integration;

9. high industrial structure design, supply to harsh environment;

10. apply to warehouse logistic supply chain, fixed assets management, vehicle management, manufacturing and etc.

Specification
Model#	VF-847
Performance Index
OS	LINUX2.6
CPU	ATSAM9G20
Memory	SDRAM 64M,NandFlash 128M
Frequency	860Mhz – 960Mhz(depends on countries’frequency)
Support countries	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China Japan Korea Malaysia Taiwan
FM mode	FHSS or fixed frequency, set by software
RF output	20-30dBm;50Ωload
Tag inventory peak speed	> 500 tag/s
Tag buffer	800 tags @ 96 bit EPC
Tag RSSI	support
Antenna connection protection	support
Environment temperature monitor	support
Antenna quantity	4 TNC antenna ports
Communication interface	10M/100M self-adaption Ethernet,RS232,RS485,Wiegand26/34
Communication rate	Serial port 9600~115200bps,RJ45 10Mbps
Reliable firmware upgrade	Extensible upgrade mechanism
GPIO	2 input,1 output
Application software interface	Provide API SDK and VC,VB,JAVA application routine
Tag operation performance
Reading distance	With 8dbi antenna, 3-25m(tag dependent)
Air interface protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B
Maximum receive sensitivity	-82 dBm; maximum return loss: 10 Dbm
Machinery electric performance
Dimension	200(L)200(W)35(H)mm
Material	Die-casting aluminum
Power supply	Equipped with power converter, 220V AC input,+12V/3A DC output
RF output interface	TNC
Net Weight	<2KG
Humidity	5% to 95%, non-condensing
Protection grade	IEC IP51
Operating temperature	-20 ºC to +60 ºC
Storage temperature	-40°C to 80°C
certificate	FCC,CE
