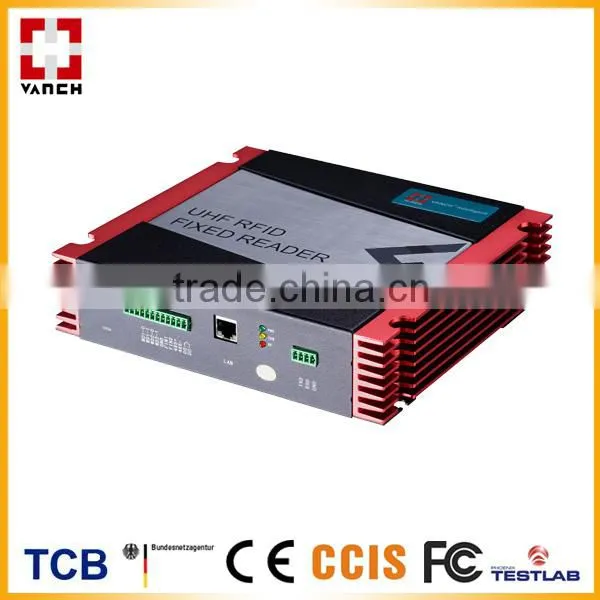

Long Range Fixed Mounted UHF RFID Reader 4 Port Antenna Reader Quality Choice

Name: Long Range Fixed Mounted UHF RFID Reader 4 Port Antenna Reader Quality Choice
Brand: Vanch
SKU: 101690061

US$ 1 - 750 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Vanch

Model Number:

VF-647

Shenzhen Vanch Intelligent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Vanch

Model Number VF-647

Introduction

l Based on the development of independent intellectual property rights, the reader adapt to the global frequency band setting.

l Adopt high-performance Impinj UHF reader chip IndyR2000 to achieve the best Intensive reader mode, the maximum read speed and optimum read ranges.

l Application: warehousing and logistics supply chain, fixed asset management, transportation and vehicle management, manufacturing, etc.

Features

1, Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation

2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard

3, operating frequency is between 860-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)

4, RS232, RS485 and TCP / IP communication

5, Support 1, 2, 4 external SMA antenna connections

6, Output power reach 32dbm, it is adjustable. Support active mode, command mode and trigger mode.

7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.

8, Reader supply multi I/O input output connectors, convenient for device to integrate and application

9, highly reliable design for industrial structure to meet the demanding work environment

Tag air interfaces	EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B
Frequency ranges	902~928MHz(customize for your requirement)
Work style	For FHSS or fixed frequency
Antenna port	4SMA (female) antenna port
RF power control	+10.0 to +32.5 dBm
Read distance	3~20M(Tags dependent)
Max receiving sensitivity	-82 dBm; Maximum return loss: 10 dBm
Communication interface	LAN, RS232, RS485, Wiegand26/34
Communication rate	serial port rate 9600~115200bps, RJ 45 is 10Mbps
Reliable firmware update	extensible upgrade mechanism
Input/output(GPIO)	2 route input, 1 route output
Power	External 22OV AC, +12V/3A DC adapter
Consumption	Average Power<20W
Non-condensing Enclosure	IEC IP52
Operating Temp.	-20 ºC to +60 ºC
Humidity	5% to 95%, no condensed
Dimensions	220(L)200 (W)48(H)mm
Application software interface	Provide API SDK,Demo in VC and VB.
Weight	1.5KG
