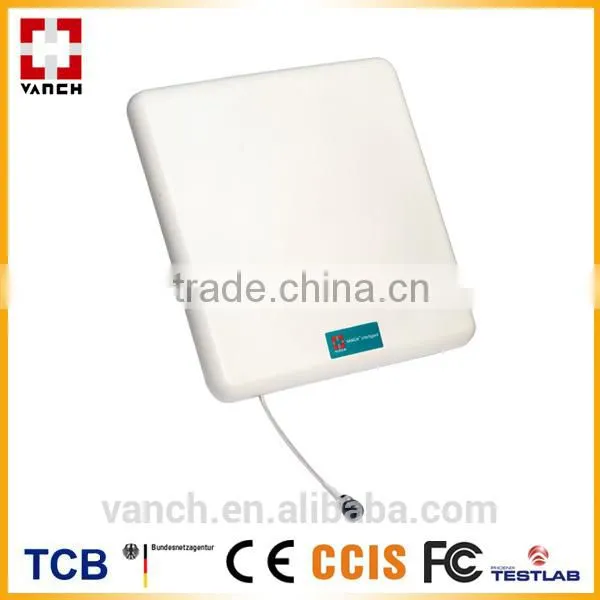

UHF RFID RETAIL ANTENNA
Introduction
This antenna is small in size, excellent performance, adopting ABS material.

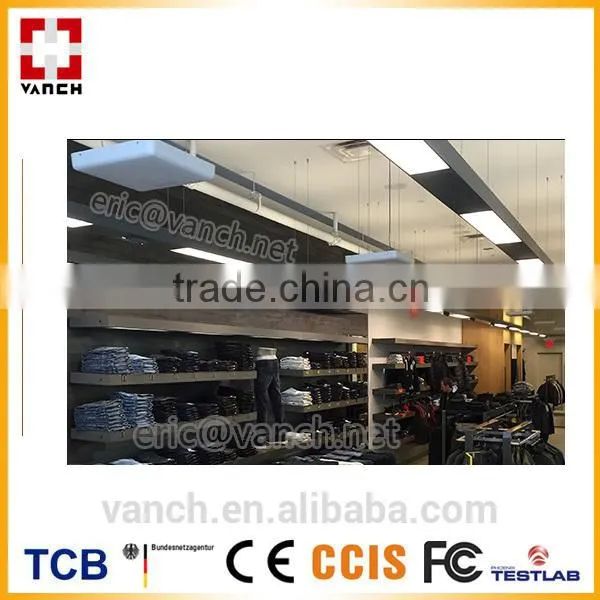

Application: warehouse management, Out/In portal and vehicle tracking etc
Features
1.Standing wave with good performance, light weight, small size, low profile
2. Working frequency is between 865-868MHz, 902-928 MHz (Customized)
3. Antenna connector N-Female
4. Offer pole mounting kit
Specification Parameter
Model |
VA-992 |
| |
Performance Index | |
Frequency |
865-868MHz, 902-928 MHz (Customized) |
Input Impedance |
50 Ohm load |
Antenna connector |
N-female antennas connector or can be customized. |
Gain-dBi |
9dBi |
Band width |
4 |
Beam width |
E:70 H:65 |
VSWR |
≤1.3 |
Polarization |
circular polarization |
Dimension |
306 (L) * 306 (W) * 25 (D) mm |
Weight (Kg) |
1.4(With clamp) |
Color |
White |
Installation |
Pole mounting |
Rod diameter (mm) |
40-50 |
