VA-993R

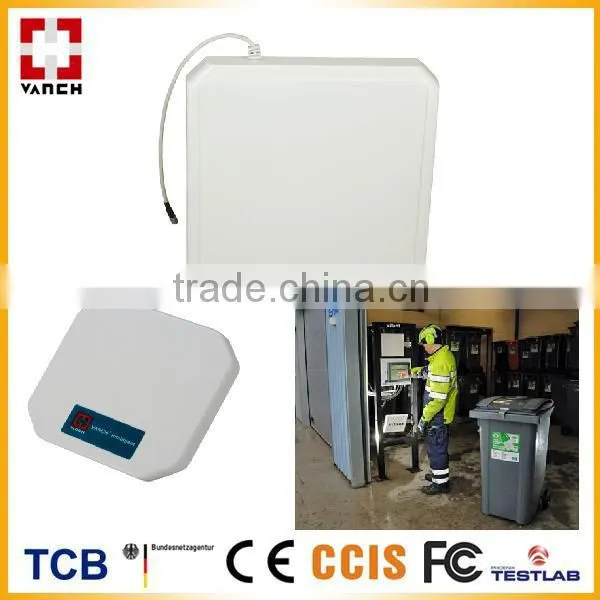

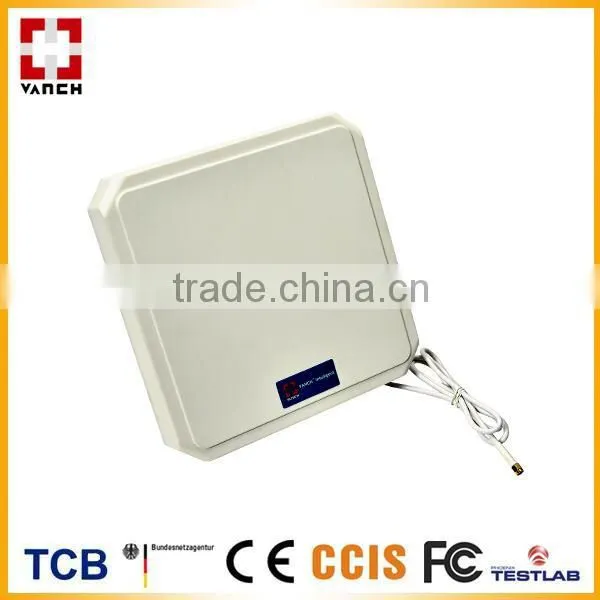

9Dbi Panel Antenna
l This antenna has the independent intellectual property rights
l This antenna is small in size, with excellent performance, shell adopt ABS plastic;
l Work Frequency 902-928MHZ(Can be adjusted to different countries and disctricts);
l Provide the standard fixing clip
l Application:access control, warehouse asset management, vehicle management,etc
Specification |
|
Model |
VA-993R |
Electrical Performance | |
Frequency Range (MHz) |
902-928 MHZ or customized |
Polarization |
circular polarization |
Gaid(dBi) |
9 dBi |
Mechanical tilt (°) |
±10 |
Half-power angle (°) |
Hor:60 Ver:60 |
Front to Back Ratio (dB) |
≥20 |
Resistance(Ω) |
50 |
VSWR |
≤1.4 |
Power(W) |
100 |
Lightning Protection |
DC Grounded |
Mechanical Performance | |
Connector |
SMA Male |
Connector Position |
At the bottom |
Antenna Dimension(mm) |
260×260×40 |
Packing Dimension(mm) |
405×305×105 |
N.W(kg) |
1.2 |
G.W(kg) |
1.35 |
Wind loading Area |
≤0.2 |
Max. Wind Strength(m/s) |
60 |
Radiation material |
Aluminum |
Antenna Housing Material |
UV or ABS |
Antenna Housing Color |
White |
Work Temperature(°C) |
-40~70 |
Holding Pole Dimension(mm) |
40~50 |
