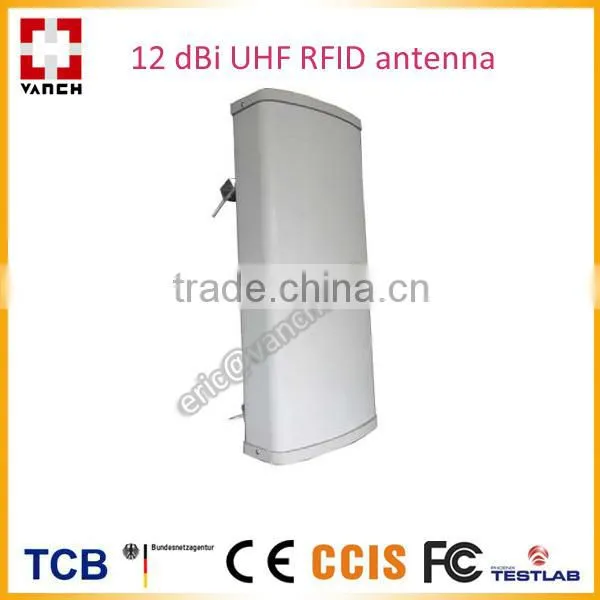

UHF RFID Antenna for road tolls ETC
Overview:
This antenna adopt Linear polarization design, 12DBi gain, with ability of reading more than 4 meters distance,

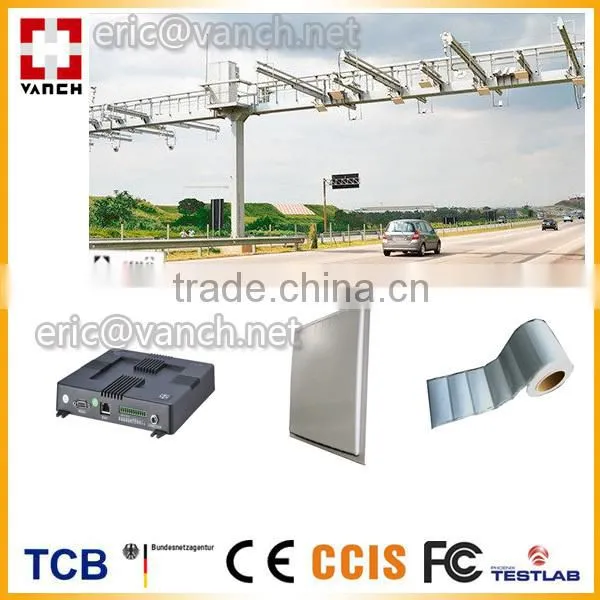

extensively applied to custom port, vehicle access control and ETC etc.
Features:
1, 12 DBi gain
2, Support more than 4 meters reading distance.
3, extensive application areas.
4, 865-868MHz/902-928MHz
Parameters:
Model(Order Code) |
VA-9121H |
|
Physical Characteristics |
Dimensions |
610(L)*310(W)*70(H)mm |
Weight |
5.2KG |
|
Environment |
Operating Temp |
-70°C to 55°C |
Storage Temp |
-70°C to 80°C |
|
|
non-condensing Enclosure |
IP-53 |
|
Antenna Connector |
N (Female) The port in the middle of antenna |
|
Gain |
12dBi |
|
Frequency Ranges |
902- 928 MHz/865-868MHz |
|
Polarization |
horizontal polarization |
|
VSWR |
<1.3 |
|
Lightning Protection |
Direct Ground |
|
Horizontal 3dB Beamwidth |
65°±5° |
|
Vertical 3dB Beamwidth |
30°±2° |
|
Impedance |
50Ω |
|
Cover meterial |
GFRP |
|
