SZ-680 Plastic Cup Thermoforming Machine

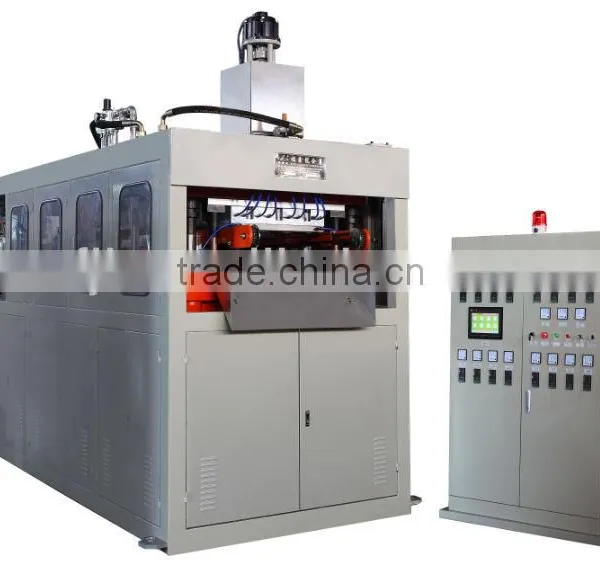

SZ-680 Plastic Cup Thermoforming Machine photo-1
US$ 25,000 - 26,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Cup
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Plastic Cup
Place of Origin Zhejiang, China
Brand Name FXINLONG
Model Number SZ-680
Certification CE

Specifications

1. The sheet feeding & stretching of plug inside of up mould are driven by servomotor.
2. control by PLC & touch screen

I. Main Features:



1)It is mainly used to produce different plastic cups, such as ice cream cups, cold/hot drinking cups, yoghurt

cups, jelly cups, coffee cup, etc. It could also make some regular shape products, such as bowls, dishes, trays, covers/lids, etc with different moulds.

2) The sheet is driven by pin chain and the pin chain is driven by servomotor. The feeding length could be adjusted by parameter setting through touch screen.



3) The stretching of plug inside of up mould is controlled by servomotor.

4) Mould adopts four pillars to fix the mould.

5 It adopts hydraulic system to drive the movement of the mould.

6) Fill oil automatically to lubricate mechanism movement at certain time.

7) Temperature controller modules to control up and down temperature area.

8) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.

9) Stable operation and reliable performance, low noise, high quality.

10) Machine frame adopts square bar to make it. Its lifespan will be longer.

11) The movement of heating oven is controlled by touch screen.

12) Waste sheet winder to collect the waste sheet.

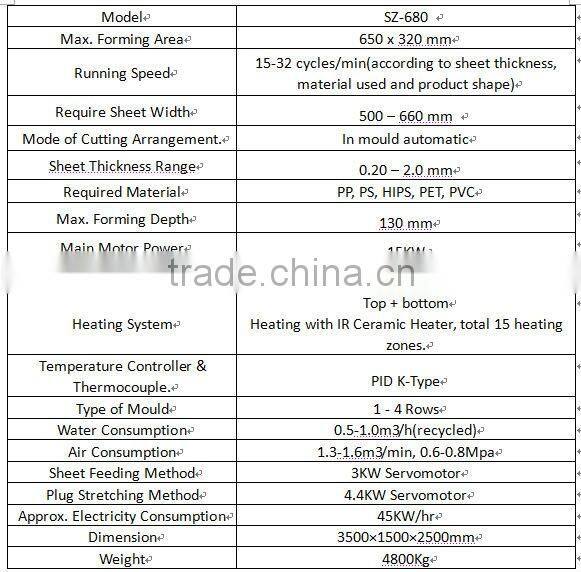

II. Main Technical Parameter:

SZ-680 Plastic Cup Thermoforming Machine

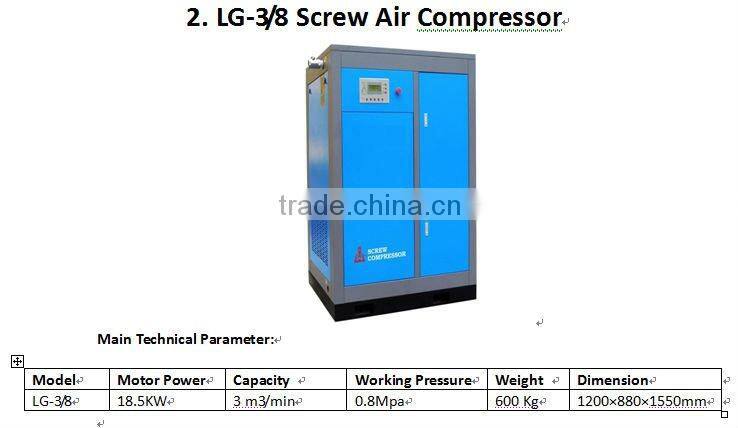

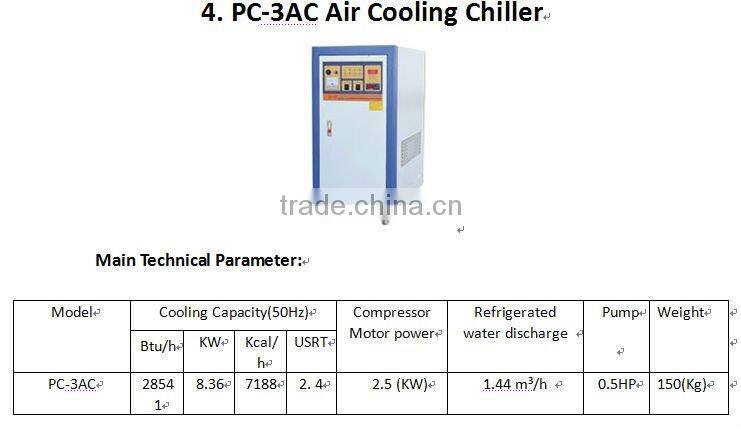

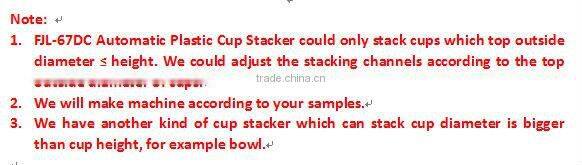

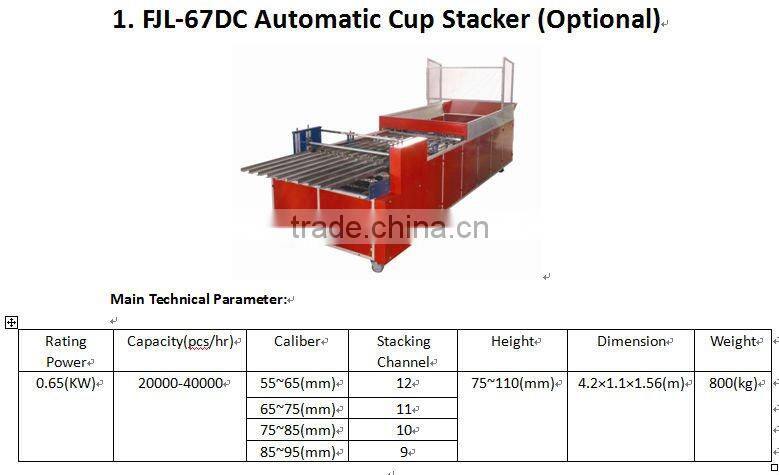

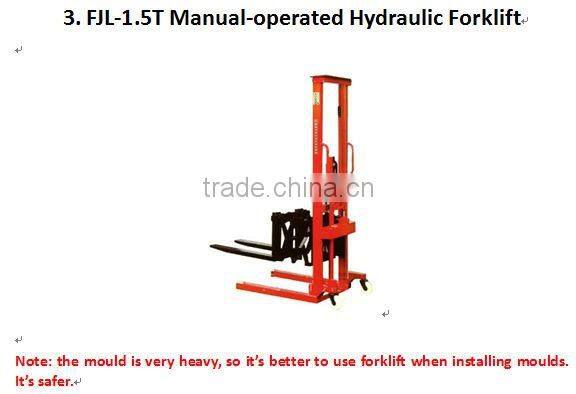

Auxiliary Equipment For Cup Thermoforming Machines:

SZ-680 Plastic Cup Thermoforming MachineSZ-680 Plastic Cup Thermoforming MachineSZ-680 Plastic Cup Thermoforming MachineSZ-680 Plastic Cup Thermoforming Machine

SZ-680 Plastic Cup Thermoforming Machine
