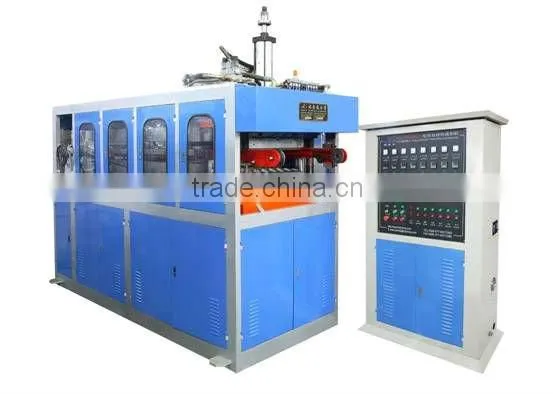

Help CenterFJL-660SB-D Plastic Cup Thermoforming Machine
Related Products
-
FJL-660SB Automatic Plastic Cup Making Machine Price, Thermocol Plate Making MachineUS$ 20,500 - 45,000MOQ: 1 Set -
FJL-660SB-C Machines for Making Disposable Plates/ Disposable Plate Making Machine/ Foam Plate Making MachineUS$ 21,000 - 243,000MOQ: 1 Set
-
Automatic Machine to Make Disposable Cup, Disposable Cup Making MachineUS$ 20,500 - 45,000MOQ: 1 Set
-
FJL-660SB-C Plastic Cup Production LineUS$ 28,000 - 35,000MOQ: 1 Set
-
Automatic Disposable Plastic Plate Making MachineUS$ 28,000 - 35,000MOQ: 1 Set
Specifications
Plastic Cup Thermoforming Machine is a king of heating forming equipment with high efficiency and full automatic,PLC contolled.Main Feature:
Full complete production line of plastic cups
Full automatic: adopts servo motor and PLC control
This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touch screen.
Main Technical Parameter:
Model |
FJL-660SB-D |
Max. Forming Area |
650 x 320 mm |
Running Speed |
15-32 cycles/min(according to sheet thickness, material used and product shape) |
Require Sheet Width |
500 – 660 mm |
Mode of Cutting Arrangement |
In mould automatic |
Sheet Thickness Range |
0.20 – 2.0 mm |
Required Material |
PP, PS, HIPS, PET, PVC |
Max. Forming Depth |
130 mm |
Main Motor Power |
15KW |
Max. Sheet Reel Dia. |
800 mm |
Heating arrangement |
Top + bottom Heating with IR Ceramic Heater, total 15 heating zones.
|
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
1 - 4 Rows |
Water Consumption |
0.5-1.0m3/h(recycled) |
Air Consumption |
1.3-1.6m3/min, 0.6-0.8Mpa |
Approx. Electricity Consumption |
45KW/hr |
Dimension |
L3400 × W1500 × H2300 (mm) |
Weight |
4400Kg |
