Usage
This machine is used for making disposable products as plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, instant-food boxes and bowls, dishes, trays,lids and etc.

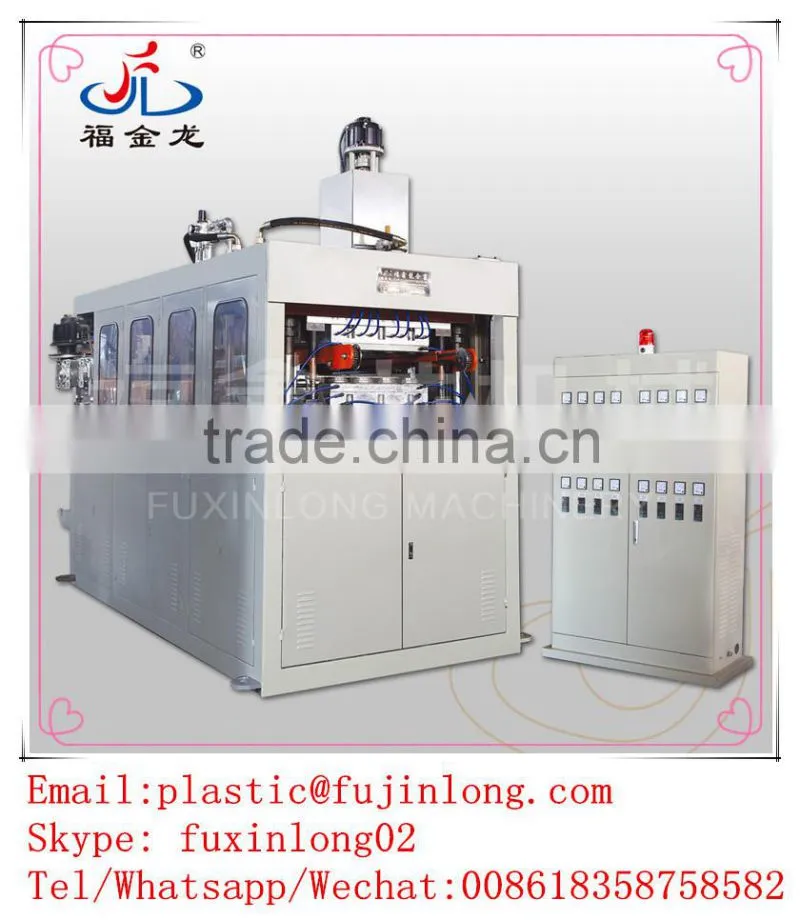

Machine Parts

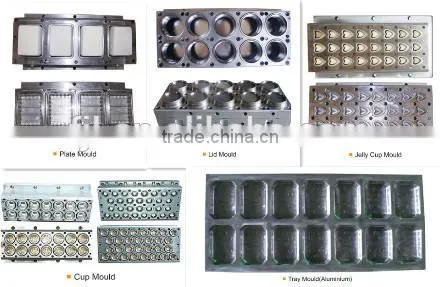

Mould Sample

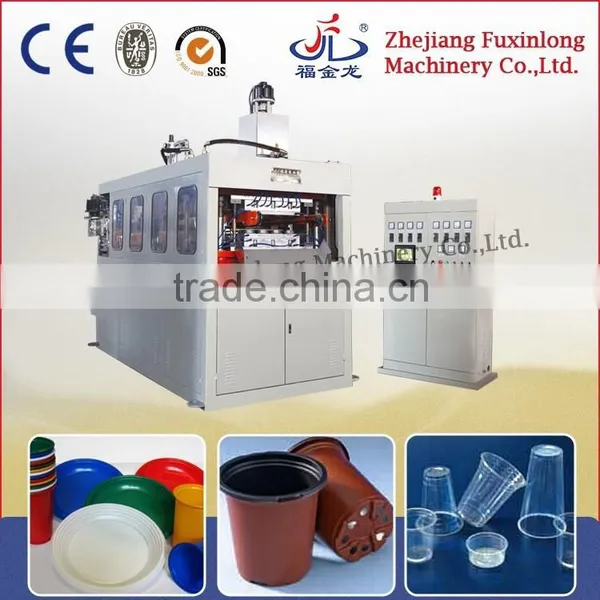

Products Sample
I.Main Technical Parameter
Model |
FJL-660SB-C II |
Max. Forming Area |
650*320mm |
Running Speed |
15-30cycles/min(According to sheet thickness, material used and product shape) |
Running Pattern |
Hydraulic/cam |
Cutting Pattern |
In mould automatic |
Sheet Material |
PP.PS.HIPS.PET.PVC |
Sheet Thickness Range |
0.2-2mm |
Max. forming Depth, Sample Height |
120mm |
Oil Pump Motor Power |
15KW |
Stretching/Feeding Servo-Motor Power |
5KW/4.4KW |
Max. Sheet Roll Dia |
800mm |
Heater arrangement |
(120Pieces,650W)Top + Bottom Heating With IR Ceramic Heater |
|
Temperature Controller & Thermocouple |
PID K-Type |
Electrical Consumption |
45KW/h |
Overall Power |
100KW |
Air Consumption |
1.5-1.8m3/min, 0.6-0.8 Mpa |
Dimension |
3.4*1.57*2.5m |
Weight(T) |
4.4 |
Power Supply |
380V/50HZ Three phase four wires |
III. Different Model Thermoforming Machine Capacity Compared:
Cup Capacity Every Mould | ||||
Model |
750 |
680 |
660C |
660B.A |
Φ65-Φ75 |
8*4=32 |
7*3=21 |
7*3=21 |
7*2=14 |
Φ76-Φ90 |
7*3=21 |
6*2=12 |
6*2=12 |
6*2=12 |
Φ91-Φ100 |
6*3=18 |
5*2=10 |
5*2=10 |
5*1=5 |
Φ101-Φ110 |
6*3=18 |
5*2=10 |
5*2=10 |
5*1=5 |
Φ111-Φ125 |
5*2=10 |
4*2=8 |
4*2=8 |
4*1=4 |
IV. Our Machine Advantage
A. Compared with other factory, our wire is bold, the price is higher than others. The advantage is: aging slow, no heat. Even the machine shake, it is no matter to pull the wire or not when service.
B. The motherboard of our machine are all made by hard notch steel, have big rack and heavy. With the same forming area, the advantage of bigger rack: more stable, fastness, low noise, durable. The disadvantage of smaller rack: shake heavily, shifting.
C. The style of hydraulic: overall modular hydraulic journey, don’t like others are split. Hydraulic systems are complete and durable.
D. The machines’ patents are our factory own. Before send to customer, the machine need strict test in every progress. We have complete after-sale service.
E. Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement
V.Main Construction Features
The sheet feeding pin chain is controlled by servo motor, The feeding length is more precise and it can be adjusted in parameter setting through touch screen.
The stretching of plug inside of up mould is controlled by servomotor.
The operation is controlled by PLC with touch screen.
Adopt two pillars to fix the mould.
Adopt hydraulic system to drive the movement of the mould.
Fill oil automatically to lubricate mechanism movement at certain time.
Temperature control modules to control each temperature area.
Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.
Machine frame adopts square steel, more stable and serviceable.
Convenient operation, reliable performance, low noise and high quality.

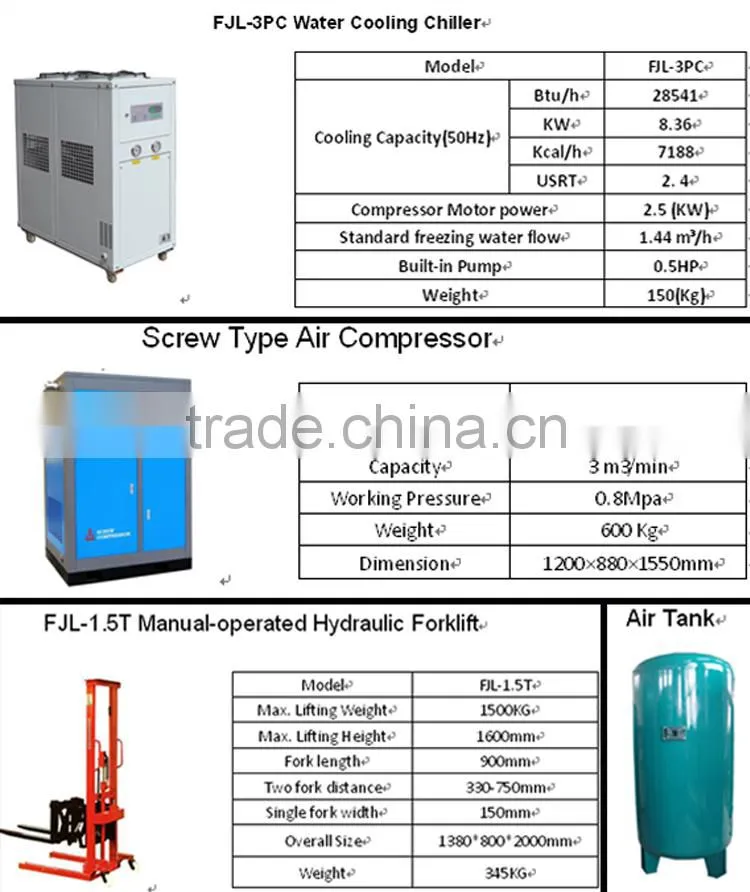

Auxiliary Equipments:
Marketing
During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,such as, Sweden, Romania, Macedonia, Russia, Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.
Warranty and After-sale Service
After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.
The seller will send one technician to buyer's factory for installing and debugging machines
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
Payment Term
30% as down payment by T/T; 70% by T/T before delivery and after inspection;
wooden case
Certification
EVERY MACHINE HAS Configure Single And Instructions
