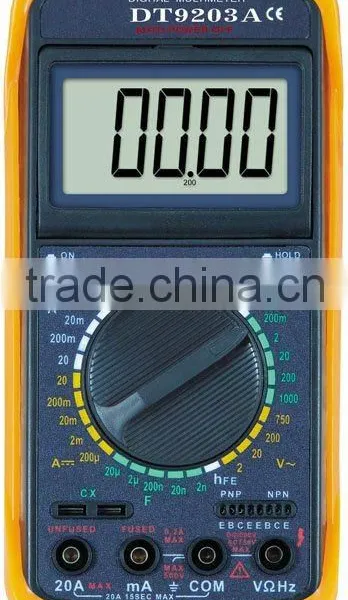

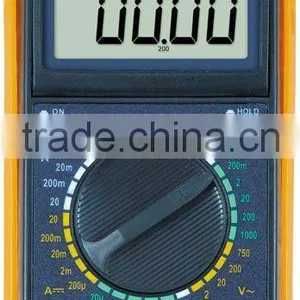

DT9203A Digital multimeter
- 0 per Month
- T/T Credit Card
Product Details
Place of Origin: | China | Model Number: | DT9203A | Measuring Current Range: | DCA:200uA-20A,ACA:2mA-20A |
Measuring Voltage Range: | DCV:200mV-1000V,ACV:2V-750V | Measuring Resistance Range: | 200©-20M© | Measuring Capacitance Range: | 2nF-20uF |
Dimensions: | 191*89*35mm |
Packaging Details
Standard export packing or as customers' requests
Product Description
Specifications
DT9203A 4 1/2 Digital multimeterDCA:200uA-20A,ACA:2mA-20A
DCV:200mV-1000V,ACV:2V-750V
Resistance(ohm):200-20M
Date hold....
DT9203A 4 1/2 Digital multimeter
Specification
Function | Range | Accuracy |
DC Voltage | 200mV-1000V | ±(0.5%+3dgt) |
AC Voltage | 2V-750V | ±(0.8%+10dgt) |
DC Current | 200µA-20A | ±(0.5%+2dgt) |
AC Current | 2mA-20A | ±(0.8%+10dgt) |
Resistance | 200Ω-20MΩ | ±(0.2%+1dgt) |
Capacitance | 2nF-20µF | ±(2.5%+3dgt) |
Frequency | 20KHz | ±(1.5%+5dgt) |
Diode Test | Yes | |
Transistor Test | Yes | |
Continuity Buzzer | Yes | |
Auto Power Off | Yes | |
Data Hold | Yes | |
Power Supply | 9V Battery 6F22 | |
Maximum Display | 19999 | |
Product Net Weight | 300g | |
Products Size | 191×89×35mm | |
Standard Accessories | Test Lead, Battery, Manual, Holster |
......We can provide many kinds of the digital multimeters, clamp meters and capacitance meters etc.. Welcome to contact us.
