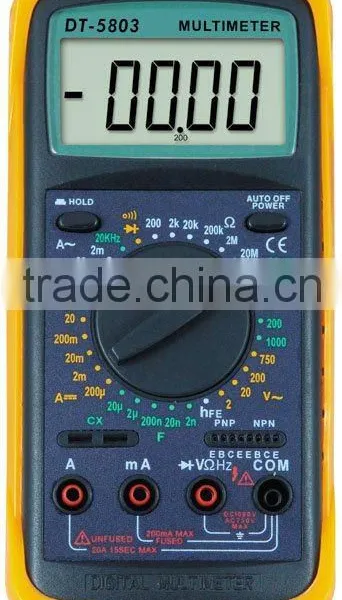

Help CenterDT5803 Digital Multimeter
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
DT5803
Measuring Current Range:
DCA:200uA-20A,ACA:2mA-20A
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Model Number
DT5803
Measuring Current Range
DCA:200uA-20A,ACA:2mA-20A
Measuring Voltage Range
DCV:200mV-1000V,ACV:2V-750V
Measuring Resistance Range
200©-20M©
Measuring Capacitance Range
2nF-20uF
Dimensions
190*88*34mm
Specifications
DT5803 4 1/2 digital multimeterDCA:200uA-20A,ACA:2mA-20A
DCV:200mV-1000V,ACV:2V-750V
200-20M(ohm),20KHz
Data Hold......
DT5803 4 1/2 digital multimeter
Specification
| Function | Range | Accuracy |
| DC Voltage | 200mV-1000V | ±(0.5%+3dgt) |
| AC Voltage | 2V-750V | ±(0.8%+10dgt) |
| DC Current | 200µA-20A | ±(0.5%+2dgt) |
| AC Current | 2mA-20A | ±(0.8%+10dgt) |
| Resistance | 200Ω-20MΩ | ±(0.2%+1dgt) |
| Capacitance | 2nF-20µF | ±(2.5%+3dgt) |
| Frequency | 20KHz | ±(1.5%+5dgt) |
| Diode Test | Yes | |
| Transistor Test | Yes | |
| Continuity Buzzer | Yes | |
| Auto Power Off | Yes | |
| Data Hold | Yes | |
| Power Supply | 9V Battery 6F22 | |
| Maximum Display | 19999 | |
| Product Net Weight | 310g | |
| Products Size | 190×88×34mm | |
| Standard Accessories | Test Lead, Battery, Manual, Holster | |
......We are professional manufactuerer, trader for many years. Other more products or have further enquiry, welcome to contact us.
