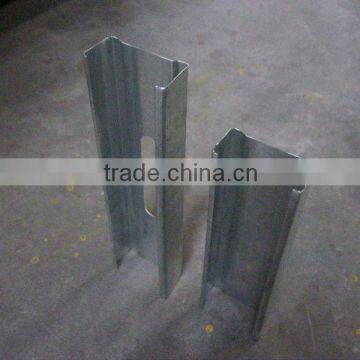

Metal Stud and Track Roll Forming Machine
Components for the Machine
This roll forming machine consists of one manual mechanical uncoiler, coil sheet guiding device, main roll forming system, post-cutting device, Hydraulic station, PLC control system and run out table.
Technical Parameters
Machine Dimension About 7000mm×1000mm×1400mm
Suitable material Galvanized Steel sheet
Thickness of material 0.4-0.8mm
Yield strength 235-345Mpa
Forming Speed about 20m/min.
Power Requirement Main motor power: 5.5 Kw (Depend on final design)
Hydraulic station power: 2.2 Kw (Depend on final design)
Decoiler Max. Capacity: 10000kgs(depends on customers)

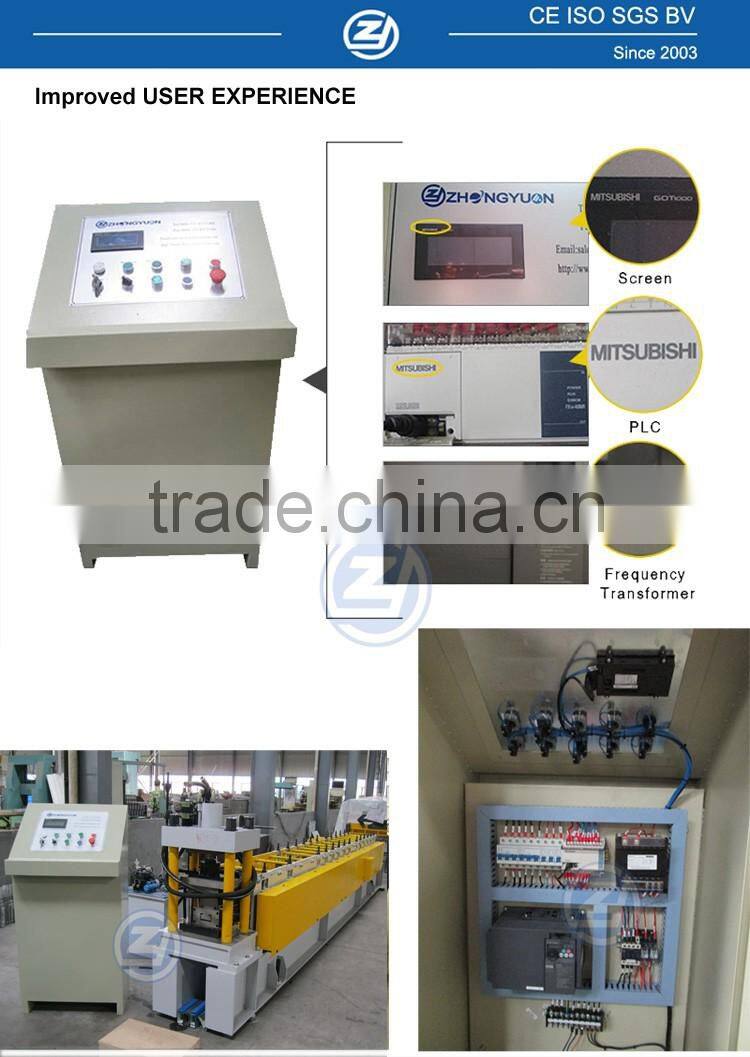

Control system Mitsubishi PLC and converter
Type of cutting length-set cutting and post forming style
Electric condition 440V/3Phase/ 60HZ or as per buyer’s requirement
Total weight About 4500kg
Material of Main Equipment
1)Roller Material
High grade No.45 forged steel, with digital-controlled procession,
Surface of rollers is plated with hard chrome with thickness of 0.05mm.
2)Active Shaft Material
High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
3)Electric Elements
PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
4)Cutter blade Cr12 mould steel with quenched treatment
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this metal stud and track roll forming machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
